DT31-2017AT: DescriptionTelecom Transformer; CategoryPower management transformer; File Size66KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

DT31-2017AT Overview

Telecom Transformer

DT31-2017AT Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BREADTH DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1
Maximum DC unbalanced current	100 mA
high	12.7 mm
JESD-609 code	e3
length	14 mm
Manufacturer's serial number	DT31-2017AT
Installation features	THROUGH HOLE MOUNTED
physical size	14.0mm X 14.0mm X 12.7mm
surface mount	NO
Terminal surface	TIN
Transformer type	TELECOM TRANSFORMER
width	14 mm

Preview

Download Datasheet

View All

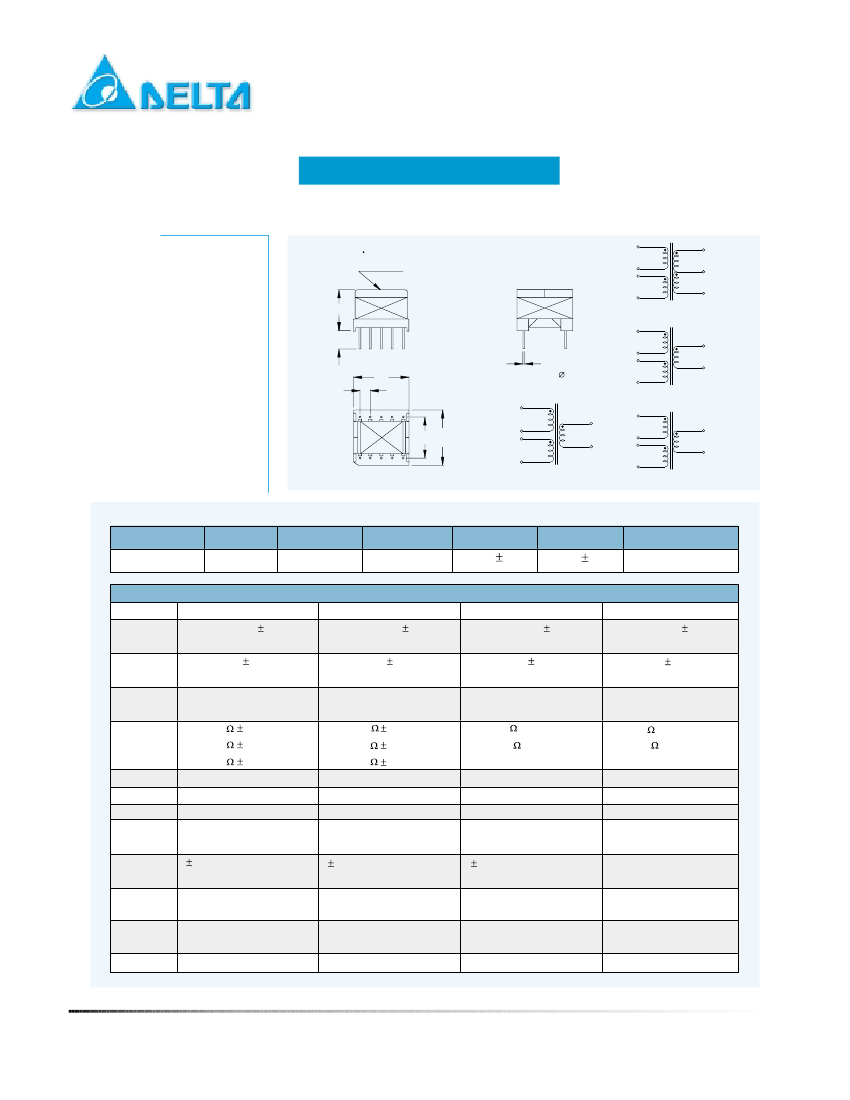

Telecommunication

HDSL Transfor mer

Transformers

1

9

N1

PRI

4

2

N2

5

N3

8 SEC

N4

7

(1)

1

DT31-2014AT

DT31-2015AT

DT31-2017AT

DT31-2018AT

DT31-20XXXX

DELTAXXXX

XXXX : DATE CODE

WHITE DOT ON PIN1

A

B

10 9

8

7

6

5

PRI

N1

4

2

N2

5

9

N3

7

SEC

F

10

9

D

8

7

6

TINNED CP WIRE

0.5

(2)

1

N1

10

N3

N2

4

6

SEC

PRI

10

N1

7

9

N2

6

(3)

N3

4

2

SEC

E C

1

2

3

4

5

PRI

5

2

(4)

DIMENSIONS IN mm

A

12.7 MAX.

B

2.79 MIN.

C

14.0 MAX.

D

14.0 MAX.

E

10.16 0.3

F

2.54 0.3

G

ELECTRICAL CHARACTERISTICS

DT31-2014AT

DT31-2015AT

DT31-2017AT

DT31-2018AT

T.R

L

L.K

D.C.R

(PRI:SEC): 1:1 1%

@10KHz 0.1V

PRI: 4.5mH 5%

@10KHz 0.1V, Idc=70mA

PRI: 30uH Max.

@100KHz 0.1V

N1: 1.47

N2: 1.47

N3: 1.00

10%

(PRI:SEC): 2:1 1%

@10KHz 0.1V

PRI: 3.5mH 5%

PRI: 30uH Max.

@100KHz 0.1V

N1: 1.07

N2: 1.07

N3: 0.86

15%

(PRI:SEC): 2:1 1%

@10KHz 0.1V

PRI: 5.0mH 10%

(PRI:SEC): 2:1 1%

@10KHz 0.1V

PRI: 8.0mH 6%

@10KHz 0.1V, Idc=120mA @10KHz 0.1V, Idc=100mA @10KHz 0.1V, Idc=60mA

----------------

PRI: 3.5 Max.

SEC: 2.2 Max.

1500 VAC 1 SEC

----------------

PRI: 4.0 Max.

SEC: 2.3 Max.

1500 VAC 1 SEC

----------------

HI-POT

C

I.L

L.B

FR

R.L

T.H.D

SCHEMATIC

1500 VAC 1 SEC

----------------

1500 VAC 1 SEC

----------------

0.4 dB Max. @40KHz

53dB Min.

@50KHz~200KHz

0.1 dB

@20KHz~110KHz

16 dB Min.

@20KHz~110KHz

-70 dB Max.

@5KHz

2

0.5 dB Max. @40KHz

53dB Min.

@33KHz~110KHz

0.1 dB

@33KHz~110KHz

17 dB Min.

@33KHz~110KHz

-70 dB Max.

@20KHz 4.5Vp-p

3

0.43 dB Max. @40KHz

53dB Min.

@500Hz~150KHz

0.1 dB

@20KHz~80KHz

17 dB Min.

@20KHz~80KHz

-70 dB Max.

@20KHz 4.5Vp-p

2

0.5 dB Max. @40KHz

53dB Min.

@500Hz~150KHz

----------------

16 dB Min.

@9KHz~40KHz

-70 dB Max.

@20KHz 4.5Vp-p

2

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

31-1, SHIEN PAN ROAD, KUEI SAN INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.

TEL: 886-3-3626301 FAX: 886-3-3618901

http://www.deltaww.com

12

DT31-2017AT Related Products

	DT31-2017AT	DT31-2015AT	DT31-2014AT	DT31-2018AT
Description	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer
Maker	Delta Electronics	Delta Electronics	Delta Electronics	Delta Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	BREADTH DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1	BREADTH DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1	BREADTH DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1	BREADTH DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1
Maximum DC unbalanced current	100 mA	120 mA	70 mA	60 mA
high	12.7 mm	12.7 mm	12.7 mm	12.7 mm
JESD-609 code	e3	e3	e3	e3
length	14 mm	14 mm	14 mm	14 mm
Manufacturer's serial number	DT31-2017AT	DT31-2015AT	DT31-2014AT	DT31-2018AT
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
physical size	14.0mm X 14.0mm X 12.7mm	14.0mm X 14.0mm X 12.7mm	14.0mm X 14.0mm X 12.7mm	14.0mm X 14.0mm X 12.7mm
surface mount	NO	NO	NO	NO
Terminal surface	TIN	TIN	TIN	TIN
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	14 mm	14 mm	14 mm	14 mm
