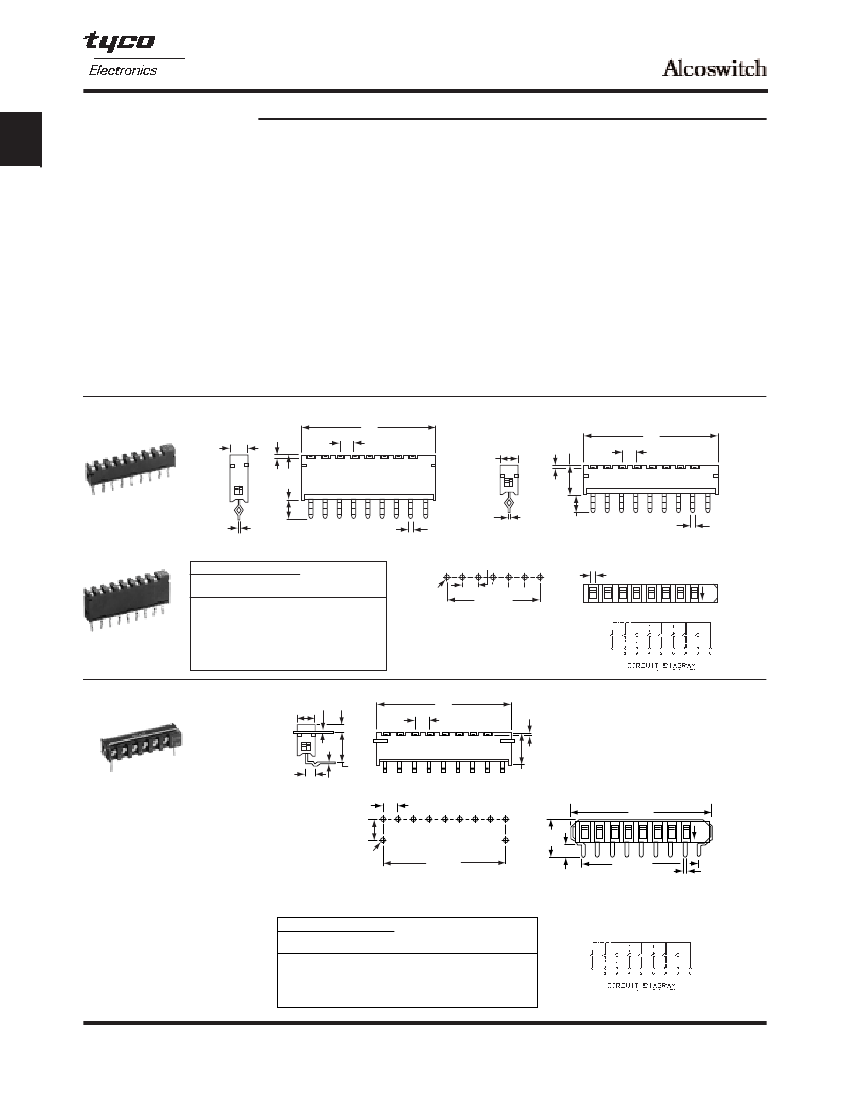

S Series
Sip Switches, Low Profile, Vertical and Right Angle
A
S Series
FEATURES:
• End-to-end stackable in .100" center (SSV/SLV) versions
• High pressure wiping contacts allows aqueous or solvent cleaning
• Gas tight contacts (280,000 PSI)
• Ceramic substrate allows wave soldering temperature of 245°
for up to 10 seconds (SLV Version)
• 2 SIP switches take up less board space than 1 DIP switch
MATERIAL SPECIFICATIONS:
Base ..........................................PPS 94V-0/Encapsulated Ceramic (SLV/SLH)
Cover ........................................PBT 94V-0
Contacts ....................................Gold flashed Beryllium copper
Actuator Material ......................Polyamide
Terminals/Fixed Contacts ........Solder coated copper alloy
Terminal Seal ............................Insert molded
Process Seal ..............................Gas tight contacts
TYPICAL PERFORMANCE CHARACTERISTICS:
Contact Rating ..........................0.4 VA @ 20 VDC max.
Initial Contact Resistance ........50 Milliohms max.
Insulation Resistance ................100 Megohms min. @ 100 VDC
Dielectric Strength ....................500 VAC
Actuation Force ........................800 Grams max.
Actuator Travel ........................50°
Life Expectancy ........................1,000 Cycles
ENVIRONMENTAL SPECIFICATIONS:
Operating Temperature ............-30°C to +85°C
Storage Temperature ................-45°C to +100°C
Solder Heat Resistance ............Wave soldering temperatures of 245°C ±
5°C with switch in off position 30 seconds
when mounting on a .060” thick PCB per
MIL-STD 202, Method 210
SSV
.030
(0.80)
.125
(3.20)
.315
(8.00)
.100
(2.54)
TYP.
L
.197 .100
(5.00) (2.54)
TYP.
.031
(0.80)
.009
(0.25)
0.14
(3.60)
.019
(0.50)
TYP.
L
.125
(3.20)
SSVO8
SLV
.009
(0.25)
0.14
(3.60)
SLV
Model
Tyco
Electronics
2-1437589-2
2-1437589-3
2-1437589-4
2-1437589-6
2-1437589-7
1-1437589-5
1-1437589-6
Alcoswitch
SSV02
SSV04
SSV06
SSV08
SSV10
SLV04
SLV08
No. of
Positions
2
4
6
8
10
4
8
Dim.
L
0.298
0.498
0.698
0.898
1.098
0.498
0.898
0.19
(0.50)
TYP.
.100
(2.54)
TYP.
SSV
.035
(0.90)
TYP.
1
2
3
4
5
6
7
8
.031
(0.80)
DIA.
TYP.
n x .100
(2.54)
UP/OFF
DOWN/ON
(n) INDICATES NUMBER OF POSITIONS
SLVO8
SLV and SSV
SSH
.125
(3.20)
.016 .070
(.400) (1.70)
L
.100
(2.54)
TYP.
.031
(0.80)
SSH06
.065
(1.65)
.009
(0.25)
.200
(5.08)
SSH
.100
(2.54)
TYP.
.200
(5.08)
.031
(0.80)
DIA.
TYP.
n x .100
(2.54)
(n) INDICATES NUMBER
OF POSITIONS
.197
(5.00)
K
.267
(6.80)
1
2
3
4
5
6
7
8
UP/OFF
DOWN/ON
.019
(0.50)
TYP.
0.98
(2.50)
n x .100
(2.54)
SSH
Model
Tyco
Alcoswitch
Electronics
1-1437589-7
1-1437589-8
1-1437589-9
2-1437589-0
2-1437589-1
SSH02
SSH04
SSH06
SSH08
SSH10
No. of
Positions
2
4
6
8
10
Dim.
L
0.298
0.498
0.699
0.898
1.098
Dim.
K
0.338
0.538
0.738
0.938
1.138
A18
Catalog 1308390
Issued 9-04
www.tycoelectronics.com
Dimensions are in inches
and millimeters unless otherwise
specified. Values in parentheses
or brackets are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
