Fair-Rite Product's Catalog
Part Data Sheet, 2952770302
Printed: 2010-11-09
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com
Part Number:
2952770302
Frequency Range: Higher Frequencies 250-1000 MHz (52 material)
Description:
Application:
Where Used:
Part Type:
52 SM PC BEAD
Suppression Components
Board Component
PC Beads (Through Hole)
Mechanical Specifications
Weight:
7.400
(g)
Part Type Information
Multiple single turn or multi-turn printed circuit EMI suppression beads are available in two Fair-Rite materials. The broadband
44 material and in the high frequency 52 material grade.
-PC Beads can be supplied with lower component heights 'C'. Also, the wire length 'F' can be modified to specific requirements.
-Wires are oxygen free high conductivity copper with a lead-free tin coating. Wires on top of the beads are
covered with a layer of epoxy.
-PC Beads are controlled for impedance only. The impedances listed are typical values. Minimum impedance values are specified for the
+ marked frequencies. The minimum guaranteed impedance is the listed impedance less 20%.
-The PC Beads in 44 material are measured on the 4193A Vector Impedance Analyzer. The 52 PC Beads are tested for impedance on the
4191A RF Impedance Analyzer.
-Recommended operating and storage temperature for the PC Beads is -55°C to +125°C.
-Explanation of Part Numbers: Digits 1&2 = product class, 3&4 = material grade and last digit 1 = standard wire length 2.4 mm (.095'')
minimum.
Fair-Rite Product's Catalog
Part Data Sheet, 2952770302
Printed: 2010-11-09
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com

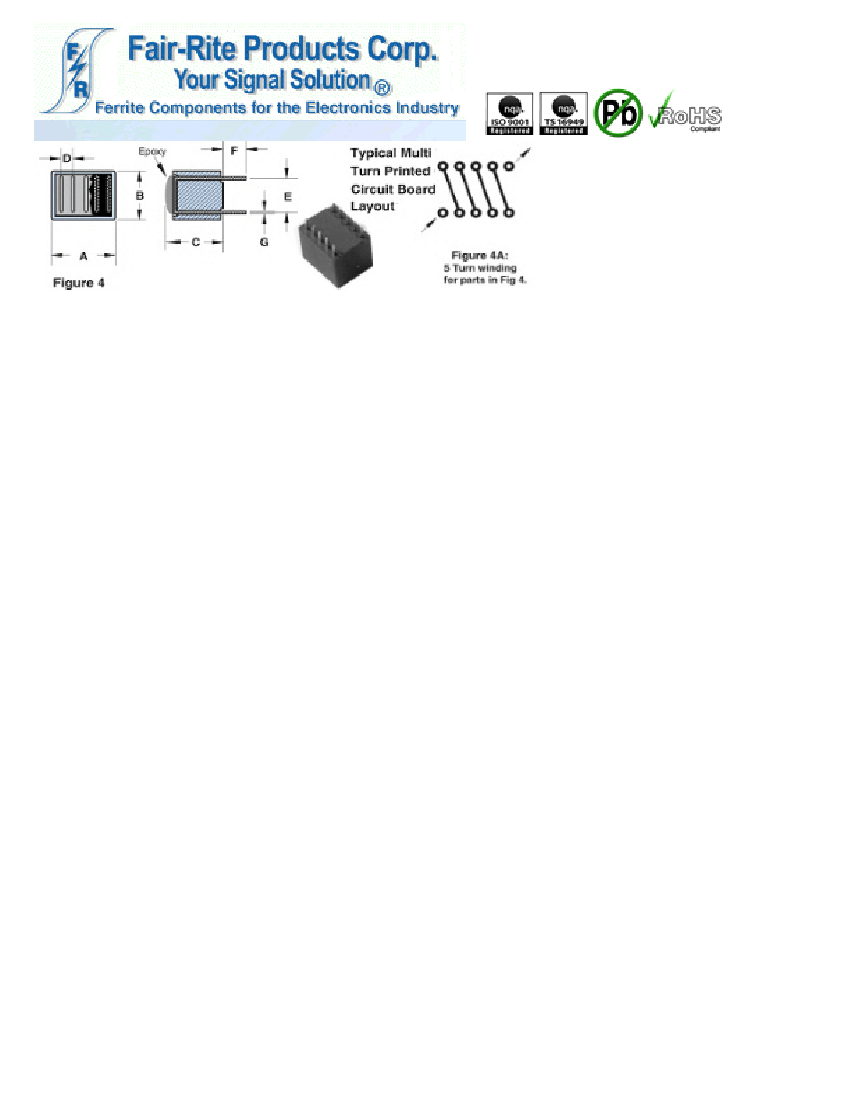

Mechanical Specifications
Dim
mm
mm
tol
A
B
C
D
E
F
G
H
J
K
13.45
11.20
11.80
2.54
7.60
3.10
0.65
-
-
-
±0.25
-0.50
Max
±0.10
±0.20
Min
-
-
-
-
nominal inch
inch
0.530
0.430
0.464
0.100
0.300
0.122
-
-
-
-
misc.
-
-
Max
-
-
Min
22 AWG
-
-
-
Land Patterns
V
W
ref
-
-
-
-
-
-
-
-
-
-
X
Y
Z
Winding Information
Turns
Tested
-
-
Wire
Size
-
1st Wire
Length
-
2nd Wire
Length
Reel Information
Tape Width Pitch
mm
-
mm
-
Parts 7 ''
Reel
-
Parts 13 '' Parts 14 ''
Reel
-
Reel
-

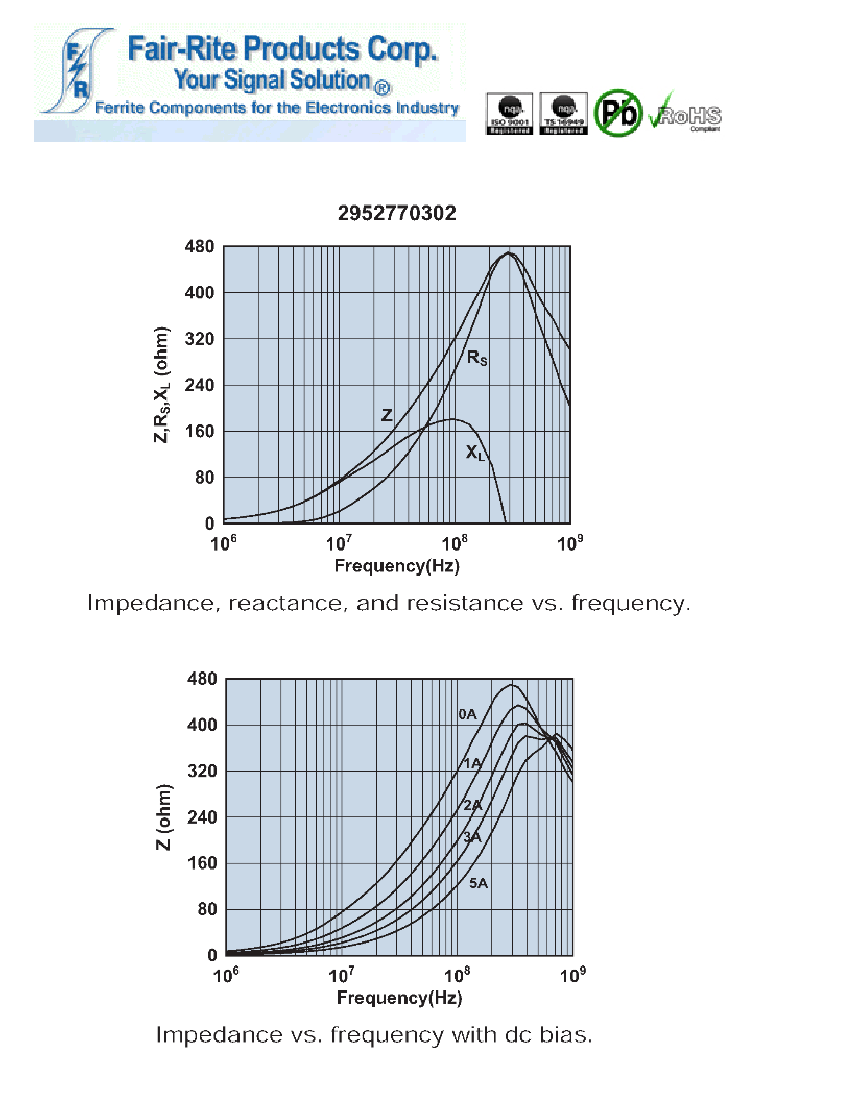

Electrical Specifications
Typical Impedance ( )
100 MHz
250 MHz+
500 MHz+
1000 MHz
320
460
395
300
Package Size
Pkg Size
-
(-)
Connector Plate
# Holes
# Rows
-
-
Electrical Properties
Legend
+ Test frequency
Preferred parts, the suggested choice for new designs,have shorter lead times and are more readily available.
The column H(Oe) gives for each bead the calculated dc bias field in oersted for 1 turn and 1 ampere direct current. The actual dc H field in
the application is this value of H times the actual NI (ampere-turn) product. For the effect of the dc bias on the impedance of the bead material,
see figures 18-23 in the application note How to choose Ferrite Components for EMI Suppression.
A ½ turn is defined as a single pass through a hole.
l/A - Core Constant
Ae : Effective Cross-Sectional Area
L
AL - Inductance Factor
(
__ 2
)
N
N/AWG - Number of Turns/Wire Size for Test Coil
l e : Effective Path Length
Ve : Effective Core Volume
Nl - Value of dc Ampere-turns
Fair-Rite Product's Catalog
Part Data Sheet, 2952770302
Printed: 2010-11-09
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com

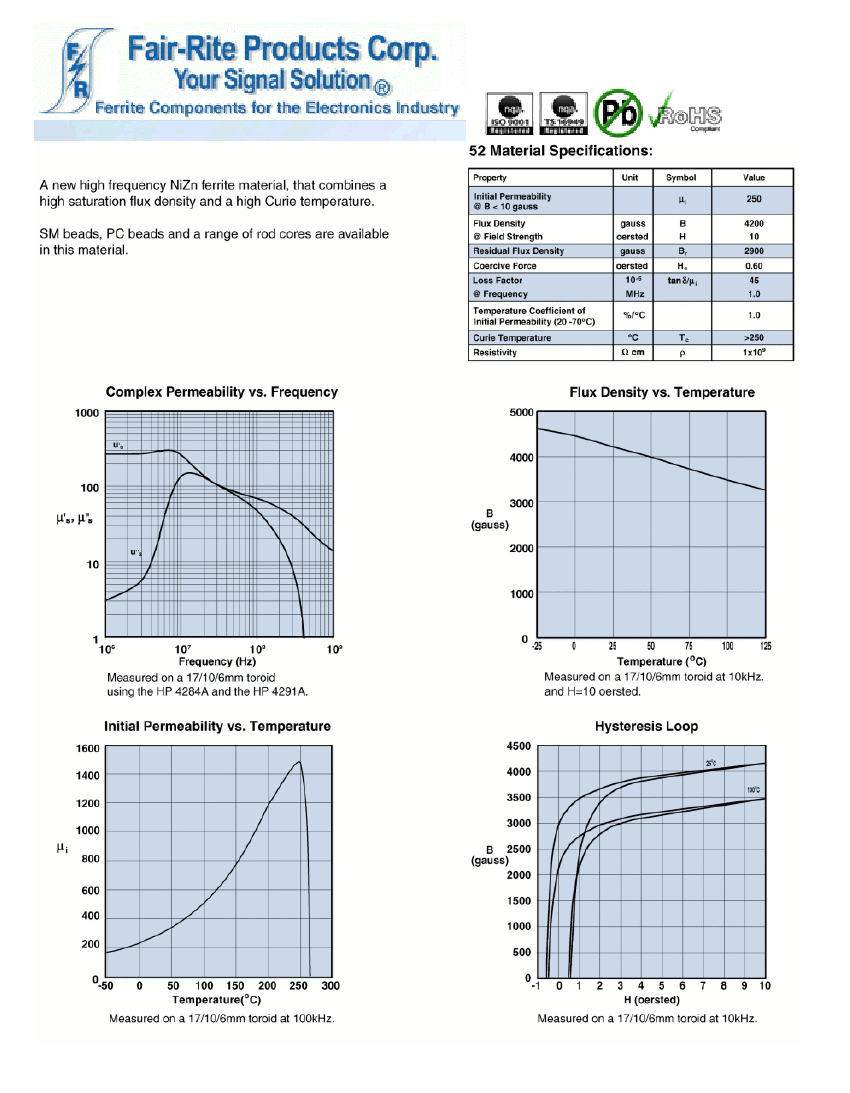

See next page for further material specifications.
Fair-Rite Product's Catalog
Part Data Sheet, 2952770302
Printed: 2010-11-09
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com

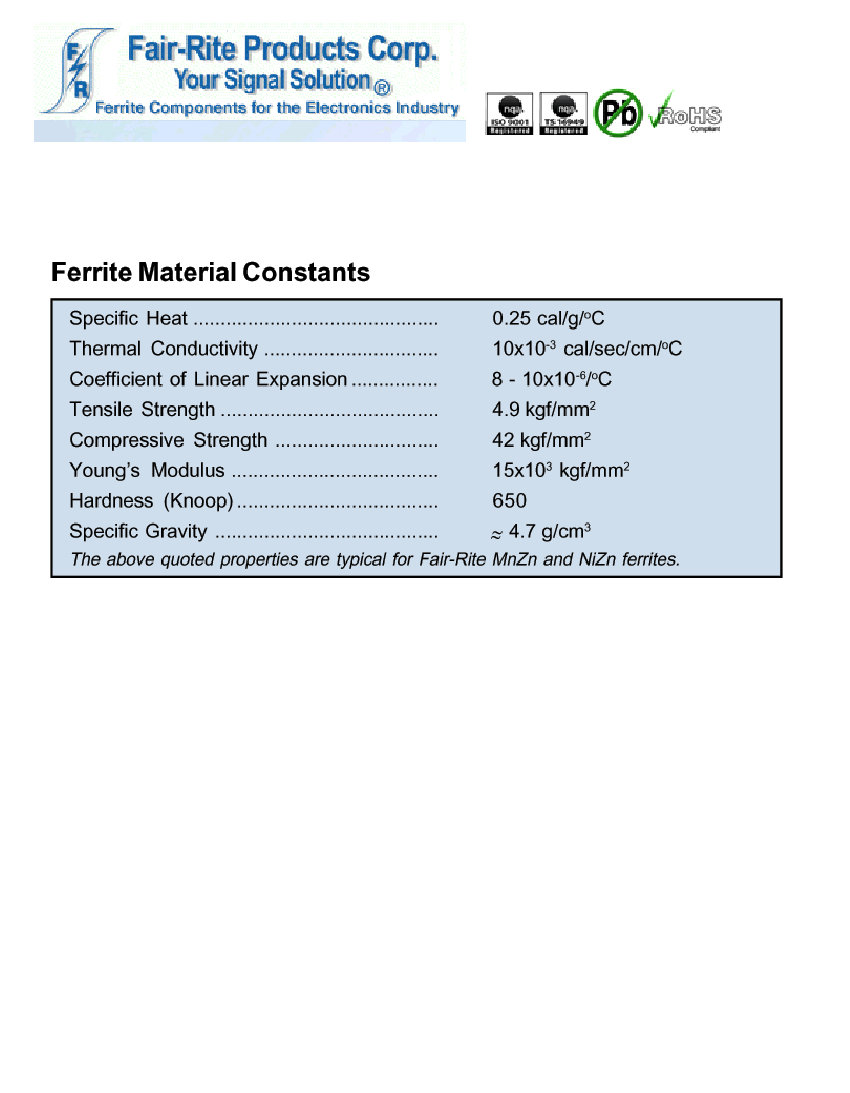

Fair-Rite Product's Catalog
Part Data Sheet, 2952770302
Printed: 2010-11-09
Fair-Rite Products Corp. PO Box J,One Commercial Row, Wallkill, NY 12589-0288
Phone: (888) 324-7748 www.fair-rite.com
