SMA Female Bulkhead Connector Crimp/Solder Attachment
For RG316, RG174, RG188, .235 inch D Hole
TECHNICAL DATA SHEET
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMA Female
RG316,RG174,RG188
Crimp/Solder
Straight
Bulkhead
PE4427
SMA Female Bulkhead Connector Crimp/Solder Attachment For RG316, RG174, RG188, .235 inch D Hole
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
0.9 [22.86]
0.312 [8]
0.008 [3.63]
SMA Female
Gold
Brass, Nickel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-female-standard-rg316-rg174-rg188-connector-pe4427-p.aspx
SMA Female Bulkhead Connector Crimp/Solder Attachment For RG316, RG174, RG188, .235 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s
broadest selection of RF, microwave and fiber optic products.
PE4427 REV
1
PE4427

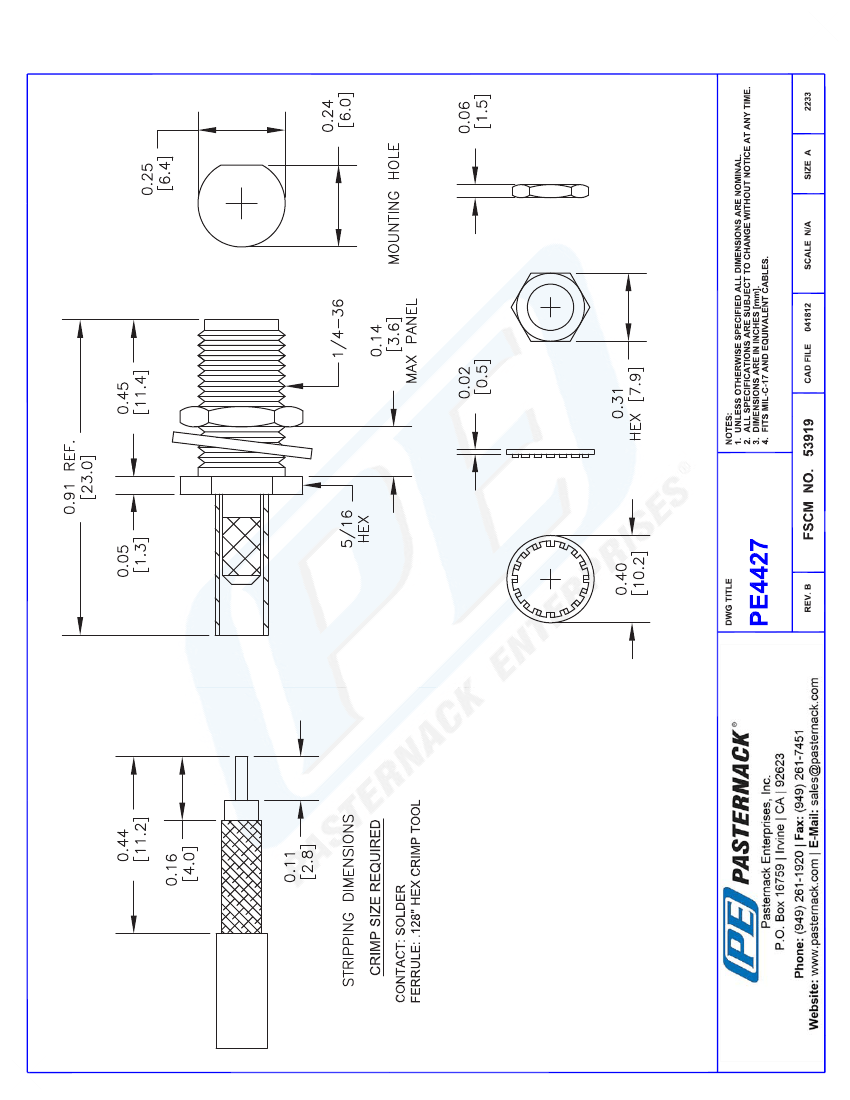

CAD Drawing
SMA Female Bulkhead Connector Crimp/Solder Attachment
For RG316, RG174, RG188, .235 inch D Hole
© 2012 Pasternack Enterprises All Rights Reserved
PE4427 REV
2
