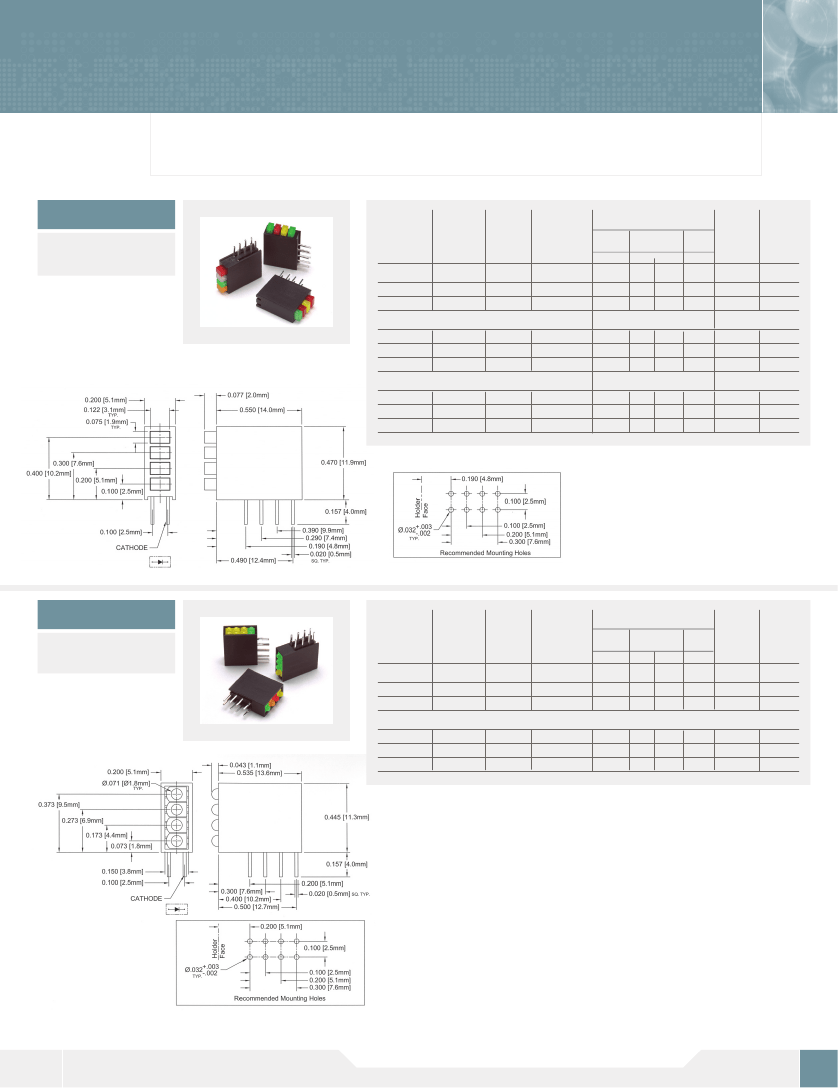

90˚led assemblies
Sub-Miniature (1.8mm and 2mm) Quad Level Assemblies
• Space Saving Design
• Vibration and Shock Resistant
• Industry Standard Footprint
• High Reliability
H480C Series
Rectangular 2mm x 3mm
90ˆ˚ Assembly
LED
Assy. No.
Peak Wave Emitted
Length
Color
Lens
Appearance
Electro-Optical
Viewing
Data @20mA
Angle
If
Vf
Iv
2
θ
1/2 LED P/N
(mA)
(V)
(mcd) (deg)
TYP
TYP MAX TYP
20
20
20
2.2
2.1
2.0
2.6
2.6
2.6
8.0
4.0
4.0
100
100
100
R3GD
R3YD
R3HD
H480CGD
H480CYD
H480CHD
Low Current
H480CGDL
H480CYDL
H480CHDL
5 Volt
H480CGD5V
H480CYD5V
H480CHD5V
568
585
635
GREEN
YELLOW
HE RED
DIFFUSED
DIFFUSED
DIFFUSED
Data @2mA
568
585
635
GREEN
YELLOW
HE RED
DIFFUSED
DIFFUSED
DIFFUSED
2
2
2
1.8
1.8
1.8
2.6
2.6
2.6
0.8
0.4
0.4
100
100
100
R3GDL
R3YDL
R3HDL
Data @10mA
568
585
635
GREEN
YELLOW
HE RED
DIFFUSED
DIFFUSED
DIFFUSED
10
10
10
5.0
5.0
5.0
-
-
-
5.0
5.0
5.0
100
100
100
R3GD5V
R3YD5V
R3HD5V
H485C Series
1.8mm 90˚ Quad Level
Assembly
LED
Assy. No.
Peak Wave Emitted
Length
Color
Lens
Appearance
Electro-Optical
Viewing
Data @20mA
Angle
If
Vf
Iv
2
θ
1/2 LED P/N
(mA)
(V)
(mcd) (deg)
TYP
TYP MAX TYP
20
20
20
2.2
2.1
2.0
2.6
2.6
2.6
5.0
4.5
5.0
70
70
70
1.8GD
1.8YD
1.8HD
H485CGD
H485CYD
H485CHD
Low Current
H485CGDL
H485CYDL
H485CHDL
565
585
635
GREEN
YELLOW
HE RED
DIFFUSED
DIFFUSED
DIFFUSED
Data @2mA
565
585
635
GREEN
YELLOW
HE RED
DIFFUSED
DIFFUSED
DIFFUSED
2
2
2
1.9
1.8
1.7
2.3
2.2
2.2
0.5
0.4
0.5
70
70
70
1.8GDL
1.8YDL
1.8HDL
cage code (FSCM)
32559
© copyright 2004 Bivar Inc.
