NJG1155UX2
GNSS LOW NOISE AMPLIFIER GaAs MMIC
I
GENERAL DESCRIPTION
The NJG1155UX2 is a LNA GaAs MMIC designed for GNSS
applications, like GPS, Galileo, GLONASS and COMPASS. The
NJG1155UX2 is featured low noise figure, and operates from 1.5V to
3.3V single voltage. The NJG1155UX2 has stand-by mode to save the
supply current, has the on-chip ESD protection devices.
The NJG1155UX2 achieves ultra small mounting area by only two
external components and ultra small package that is lead-free and
halogen-free 6-pin EPFFP6-X2 package.
I
FEATURES
G
Operating frequencies
G
Low supply voltage
G
Low current consumption
G
High gain
G
Low noise figure
G
Ultra small package
G
Low external component count
G
RoHS compliant and Halogen Free
G
MSL1
I
PIN CONFIGURATION
(Top View)
I
PACKAGE OUTLINE
NJG1155UX2
1550~1615MHz
2.8 / 1.8V typ.
3.5 / 3.1mA typ.
@V
DD
=2.8 / 1.8V, V
CTL
=1.8V
0.1
µ
A typ.
@V
DD
=2.8 / 1.8V, V
CTL
=0V (Stand-by mode)
19.0 / 18.5dB typ. @V
DD
=2.8 / 1.8V, V
CTL
=1.8V
0.75dB typ.
@V
DD
=2.8 / 1.8V, V
CTL
=1.8V
EPFFP6-X2 (Package size: 1.1mm x 0.7mm x 0.37mm typ.)
2pcs.
I
TRUTH TABLE
V
CTL
3
RFOUT
LNA mode
Active mode
Stand-by mode
4
GND
RFIN
VDD
Pin connection
1. GND
2. VDD
3. RFOUT
4. GND
5. RFIN
6. VCTL
H
L
“H”=V
CTL(H)
, “L”=V
CTL(L)
5
2
VCTL
GND
1 Pin INDEX
6
1
Note: Specifications and description listed in this datasheet are subject to change without notice.
Ver.2013-03-15
-1-
NJG1155UX2
I
ABSOLUTE MAXIMUM RATINGS
General conditions: T
a
=+25° Z
s
=Z
l
=50Ω
C,
PARAMETERS
Supply voltage
Control voltage
Input power
Power dissipation
Operating temperature
Storage temperature
SYMBOL
V
DD
V
CTL
P
IN
P
D
T
opr
T
stg
V
DD
=2.8V
4-layer FR4 PCB without through-hole
(101.5mm x 114.5mm), T
j
=150°
C
CONDITIONS
RATINGS
5.0
5.0
+15
430
-40~+85
-55~+150
UNITS
V
V
dBm
mW
°
C
°
C
I
ELECTRICAL CHARACTERISTICS 1 (DC)
General conditions: T
a
=+25° Z
s
=Z
l
=50Ω
C,
PARAMETER
Supply Voltage
Control Voltage (High)
Control Voltage (Low)
Supply Current1
(Active mode)
Supply Current2
(Active mode)
Supply Current3
(Stand-by mode)
Supply Current4
(Stand-by mode)
Control Current
SYMBOL
V
DD
V
CTL(H)
V
CTL(L)
I
DD1
I
DD2
I
DD3
I
DD4
I
CTL
RF OFF, V
DD
=2.8V, V
CTL
=1.8V
RF OFF, V
DD
=1.8V, V
CTL
=1.8V
RF OFF, V
DD
=2.8V, V
CTL
=0V
RF OFF, V
DD
=1.8V, V
CTL
=0V
V
CTL
=1.8V
CONDITIONS
MIN
1.5
1.2
0
-
-
-
-
-
TYP
-
1.8
0
3.5
3.1
0.1
0.1
5.0
MAX
3.3
3.3
0.3
6.0
5.5
3.0
3.0
12.0
UNITS
V
V
V
mA
mA
µA
µA
µA
-2-
NJG1155UX2
I
ELECTRICAL CHARACTERISTICS 2 (RF, V
DD
=2.8V)
General conditions: V
DD
=2.8V, V
CTL
=1.8V, f
RF
=1550~1615MHz, T
a
=+25° Z
s
=Z
l
=50Ω, with application circuit
C,
PARAMETER
Small Signal Gain1
Noise Figure1
Isolation1
Input Power at 1dB Gain
Compression Point1
Input 3rd Order Intercept
Point1
Out of Band Input 3rd
Order Intercept Point1
RFIN Port Return Loss1
RFOUT Port Return Loss1
SYMBOL
Gain1
NF1
ISL1
P-
1dB
(IN)1
IIP3_1
f1=f
RF
, f2=f1+/-1MHz,
Pin=-30dBm
f
1
=1712.7MHz, Pin=-20dBm,
f
2
=1850MHz, Pin=-20dBm,
f
meas
=1575.4MHz
CONDITIONS
Exclude PCB and connector
losses (0.18dB)
Exclude PCB and connector
losses (0.08dB)
MIN
16.5
-
25.0
-17.0
-5.0
TYP
19.0
0.75
35.0
-12.5
-1.5
MAX
21.0
1.0
-
-
-
UNITS
dB
dB
dB
dBm
dBm
IIP3_OB1
-4.0
0.0
-
dBm
RLi1
RLo1
6.0
8.0
10.0
12.0
-
-
dB
dB
I
ELECTRICAL CHARACTERISTICS 3 (RF, V
DD
=1.8V)
General conditions: V
DD
=1.8V, V
CTL
=1.8V, f
RF
=1550~1615MHz, T
a
=+25° Z
s
=Z
l
=50Ω, with application circuit
C,
PARAMETER
Small Signal Gain2
Noise Figure2
Isolation2
Input Power at 1dB Gain
Compression Point2
Input 3rd Order
Intercept Point2
Out of Band Input 3rd
Order Intercept Point2
RF IN Port Return Loss2
RF OUT Port Return Loss2
SYMBOL
Gain2
NF2
ISL2
P-
1dB
(IN)2
IIP3_2
IIP3_OB2
RLi2
RLo2
f1=f
RF
, f2=f1+/-1MHz,
Pin=-30dBm
f
1
=1712.7MHz, Pin=-20dBm,
f
2
=1850MHz, Pin=-20dBm,
f
meas
=1575.4MHz
CONDITIONS
Exclude PCB and connector
losses (0.18dB)
Exclude PCB and connector
losses (0.08dB)
MIN
15.0
-
25.0
-20.0
-10.0
-7.0
6.0
7.0
TYP
18.5
0.75
35.0
-16.0
-5.0
-3.0
10.0
12.0
MAX
21.0
1.1
-
-
-
-
-
-
UNITS
dB
dB
dB
dBm
dBm
dBm
dB
dB
-3-
NJG1155UX2
I
TERMINAL INFORMATION
No.
SYMBOL
DESCRIPTION
Ground terminal. This terminal should be connected to the ground plane as
close as possible for excellent RF performance.
Supply voltage terminal. Please connect bypass capacitor C1 with ground as
close as possible.
RF output terminal. This terminal requires no DC blocking capacitor since this
IC has internal output matching circuit including DC blocking capacitor.
Ground terminal. This terminal should be connected to the ground plane as
close as possible for excellent RF performance.
RF input terminal. This terminal requires only a matching inductor L1, and does
not require DC blocking capacitor.
1
GND
2
VDD
3
RFOUT
4
GND
5
RFIN
6
VCTL
Control voltage terminal.
-4-
NJG1155UX2
I

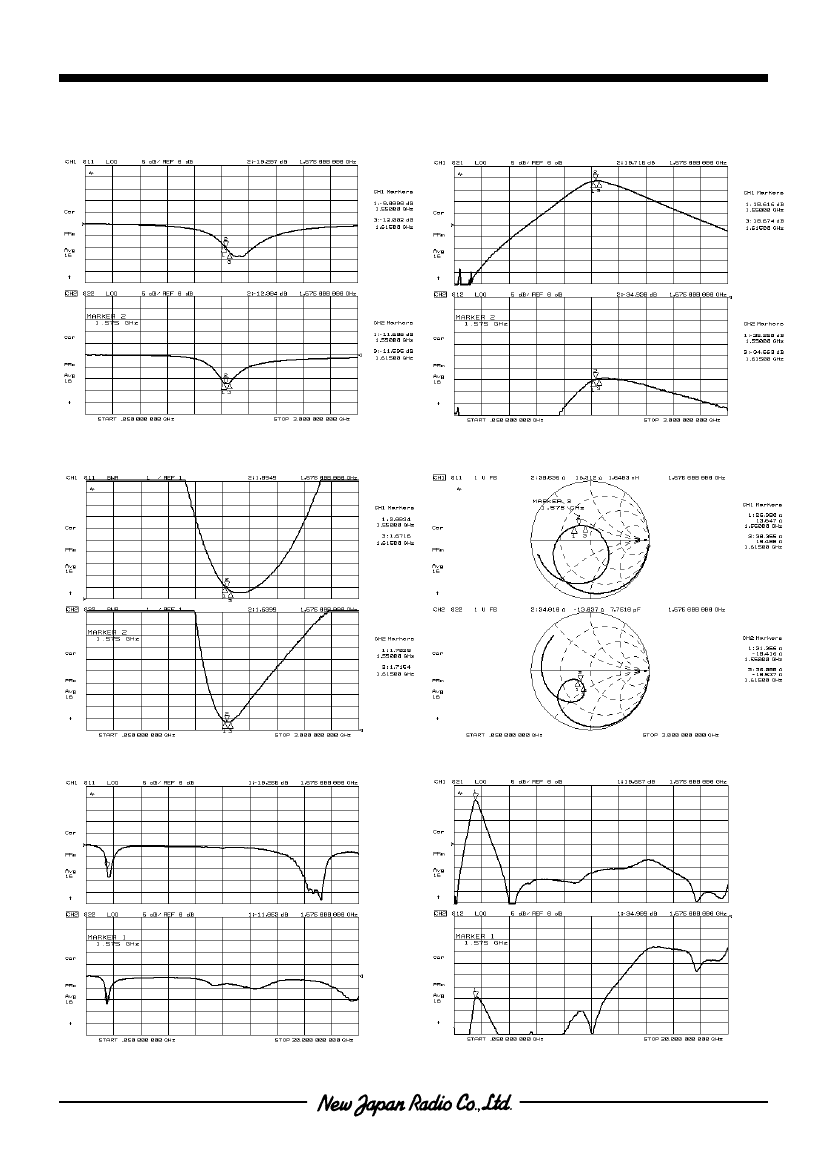

ELECTRICAL CHARACTERISTICS
Conditions: V
DD
=2.8V, V
CTL
=1.8V, Ta=25° Z
s
=Z
l
=50Ω
C,
S11, S22
S21, S12
VSWR
Zin, Zout
S11, S22 (f=50M~20GHz)
S21, S12 (f=50M~20GHz)
-5-
