ITEM
1
2
3
Q'TY
1
1
3
PART NUMBER
H-400C
3XX-LL
3XX-S
PART DESCRIPTION
T-1 (3mm) Quad-Level LED Holder, 90° Mount, Interlocking
T-1 (3mm) N-Flange LED, Long Leads
T-1 (3mm) N-Flange Shouldered LED, See Page 2
REV.
DESCRIPTION
DATE
APPROVED
E
F
G
H
J
Updated to Previous Protrusion
Added P/N Designation
Added H400CAD Specs
Updated LED Protrusion Dimension
Engineering Update w/o Changes
04/10/08
09/30/08
04/13/09
08/11/11
08/04/16
M. C.
M. C.
T. Y.
T. Y.
J. C.
Holder Faces
0.215 [5.5mm]
Ø.032+.003
TYP.
-.002
0.075 [1.9mm]
0.150 [3.8mm]
0.175 [4.4mm] Holder Pitch
0.100 [2.5mm] LED Lead
1
0.170 [4.3mm]
Ø.118 [Ø3.0mm]
TYP.
2
3
0.04 [1.0mm]
MAX.
0.560 [14.2mm]
0.225 [5.7mm]
Recommended Mounting Holes
NOTE: P/N DESIGNATION
0.740 [18.8mm]
Cathode I.D.
Mark
H400CXXXXDX
0.840 [21.3mm]
H-400 Holder
Series
Color of top LED
- Use "X" if blank
Color of 2nd from top LED
- Use "X" if blank
Color of 3rd from top LED
- Use "X" if blank
- " " Standard LED
- "L" Low Current LED
- "5V" 5V LED
Lens Appearance
Color of bottom LED
- Use "X" if blank
0.540 [13.7mm]
0.340 [8.6mm]
0.140 [3.6mm]
0.157 [4.0mm]
0.100 [2.5mm]
0.440 [11.2mm]
0.365 [9.3mm]
0.290 [7.4mm]
0.215 [5.5mm]
SQ. TYP.
0.020 [0.5mm]
-If LEDs are the same,
use e.g. H400CGD
All Green Diffused LEDs
ABSOLUTE MAXIMUM RATINGS (Ta=25° C)
REVERSE VOLTAGE
REVERSE CURRENT
OPERATING TEMPERATURE RANGE
STORAGE TEMPERATURE
LEAD SOLDERING TEMPERATURE(1/16" FROM BODY)
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
.X
.XX
.XXX
DESIGNED:
± .1
± .02
± .010
X°
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
DATE:

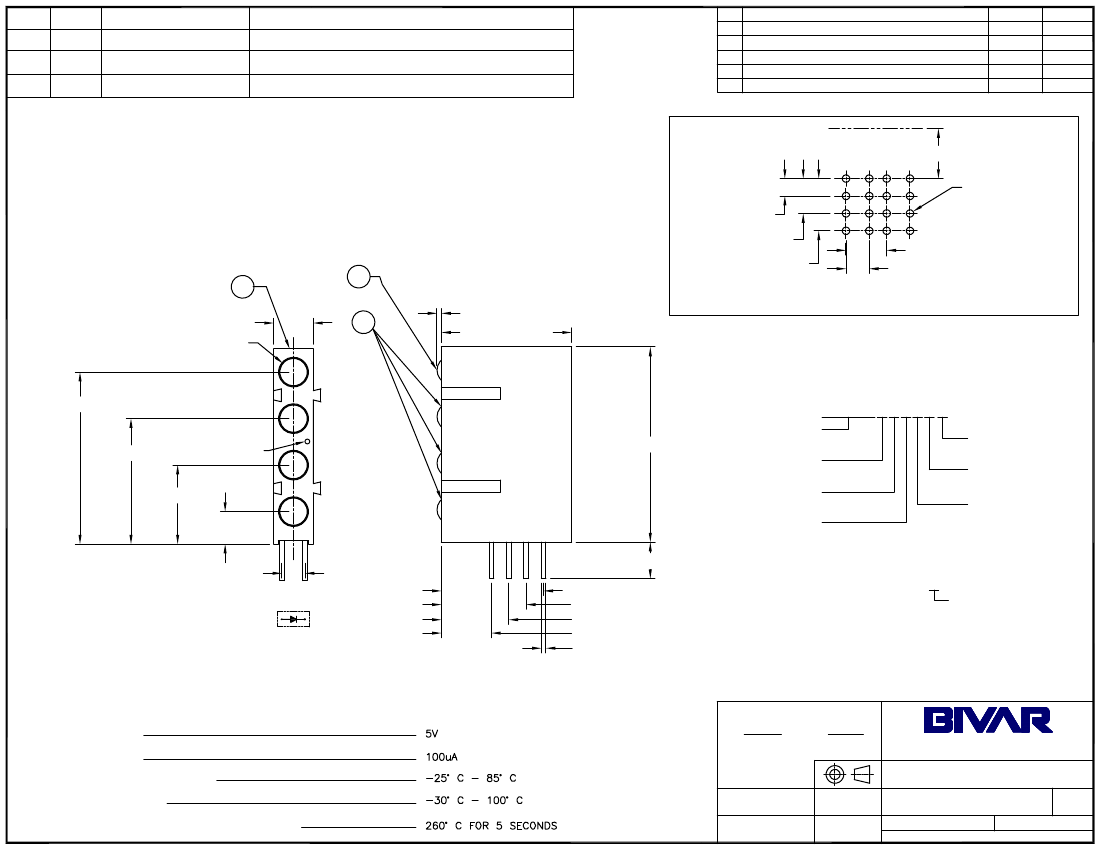

T-1 (3MM) INTERLOCKING
90° QUAD-LEVEL LED ASSY
REVISION:
T. Yin
CHECKED:
03/08/04
DATE:
PART NO:
H400CXX
J
D. Green
03/08/04
CAGE CODE : 32559
SHEET #
1
OF
2
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
REV.
DESCRIPTION
DATE
APPROVED
SEE SHEET #1
Peak Wave
LED Assy. No.
Length
λ
p(nm )
STANDARD
H400CAD
H400CBWD
H400CGD
H400CYD
H400CHD
H400CRD
H400CSRD
LOW CURRENT
H400CGDL
H400CYDL
H400CHDL
5 VOLT
H400CGD5V
H400CYD5V
H400CHD5V
568
590
625
568
590
625
605
430
568
590
625
700
645
Electro-Optical Data
Em itted
Color
Lens
Appearance
If
(m A)
TYP
Data @ 20m A
AMBER
BLUE
GREEN
YELLOW
HE RED
RED
SUPER RED
DIFFUSED
DIFFUSED
DIFFUSED
DIFFUSED
DIFFUSED
DIFFUSED
DIFFUSED
20
20
20
20
20
20
20
Data @ 2m A
GREEN
YELLOW
HE RED
DIFFUSED
DIFFUSED
DIFFUSED
2
2
2
Data @ 5V
GREEN
YELLOW
HE RED
DIFFUSED
DIFFUSED
DIFFUSED
8
8
8
-
-
-
5.0
5.0
5.0
25
20
30
2.1
2.0
2.0
2.6
2.6
2.6
2
2
3
2.0
4.0
2.1
2.0
2.0
2.1
1.7
2.8
4.5
2.8
2.8
2.8
2.8
2.4
25
10
25
20
30
2
40
TYP
Vf
(V)
MAX
Iv
(m cd)
TYP
View ing
Angle
2 ½
(Deg)
LED P/N
40
40
40
40
40
40
40
3AD-S
3BWD-S
3GD-S
3YD-S
3HD-S
3RD-S
3SRD-S
40
40
40
3GDL-S
3YDL-S
3HDL-S
40
40
40
3GD5V-S
3YD5V-S
3HD5V-S
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
±10% ALL VALUES
ANGULAR
®
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
DESIGNED:
DATE:
T-1 (3MM) INTERLOCKING
90° QUAD-LEVEL LED ASSY
REVISION:
T. Yin
CHECKED:
03/08/04
DATE:
PART NO:
H400CXX
J
D. Green
03/08/04
CAGE CODE : 32559
SHEET #
2
OF
2
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
