PE4048 Overview

N Male Connector Crimp/Solder Attachment For RG214, RG9, RG225, RG393

PE4048 Parametric

Parameter Name	Attribute value
Maker	Pasternack Enterprises
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	RF N CONNECTOR
Manufacturer's serial number	PE4048
Base Number Matches	1

Preview

Download Datasheet

View All

N Male Connector Crimp/Solder Attachment

For RG214, RG9, RG225, RG393

TECHNICAL DATA SHEET

N Male Connector Crimp/Solder Attachment For RG214, RG9, RG225, RG393

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

N Male

MIL-STD-348A

RG214,RG9,RG225,RG393

Crimp/Solder

Straight

PE4048

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum VSWR

Maximum Operating Voltage, Volts

Dielectric Withstanding Voltage, Vrms

DC to 11

1.5:1

1,000

2,500

Mechanical Specifications

Temperature

Operating Range, deg C

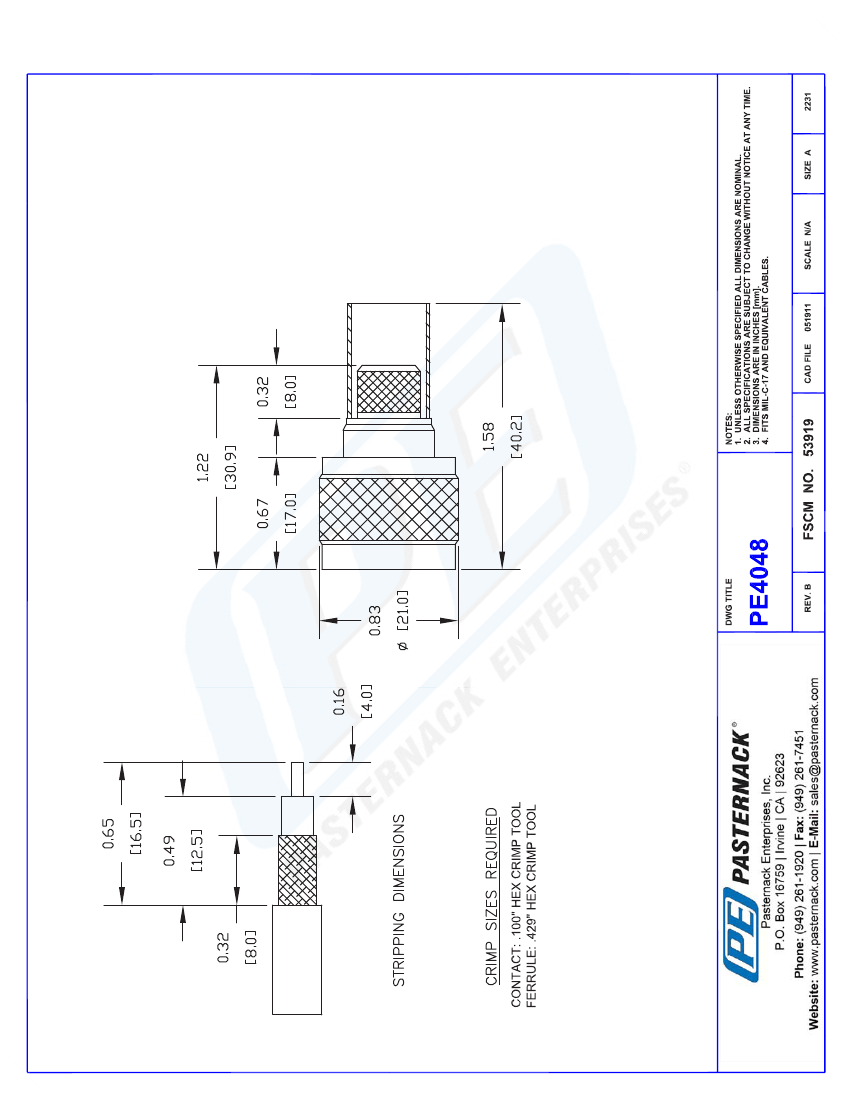

Size

Length, in [mm]

Width/Dia., in [mm]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

-65 to +165

1.583 [40.21]

0.827 [21]

0.082 [37.19]

N Male

Brass, Gold

30µ in. minimum

Brass, Nickel

100µ in. minimum

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/n-male-standard-rg214-rg9-rg225-rg393-connector-pe4048-p.aspx

N Male Connector Crimp/Solder Attachment For RG214, RG9, RG225, RG393 from Pasternack Enterprises has same day

shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF,

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

N Male Connector Crimp/Solder Attachment For RG214, RG9, RG225, RG393 PE4048

PE4048 REV
