BNC Male Right Angle Connector Clamp/Solder Attachment
For RG55, RG58, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
PE4053
BNC Male Right Angle Connector Clamp/Solder Attachment For RG55, RG58, RG141, RG142, RG223,
RG400
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
BNC Male
MIL-STD-348A
RG55,RG58,RG141,RG142,RG223,RG400
Clamp/Solder
Right Angle
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
Frequency 1
Frequency, MHz
VSWR
DC to 4
50
500
1,500
DC to 1,000
1.5:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.453 [36.91]
1.102 [28]
0.082 [37.19]
BNC Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
BNC Male Right Angle Connector Clamp/Solder Attachment For RG55, RG58, RG141,
RG142, RG223, RG400 PE4053
PE4053 REV
1
BNC Male Right Angle Connector Clamp/Solder Attachment
For RG55, RG58, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4053
URL:
http://www.pasternack.com/bnc-male-standard-rg55-rg58-rg141-rg142-rg223-rg400-connector-pe4053-p.aspx
BNC Male Right Angle Connector Clamp/Solder Attachment For RG55, RG58, RG141, RG142, RG223, RG400 from
Pasternack Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the
industry’s broadest selection of RF, microwave and fiber optic products.
PE4053 REV
2
PE4053

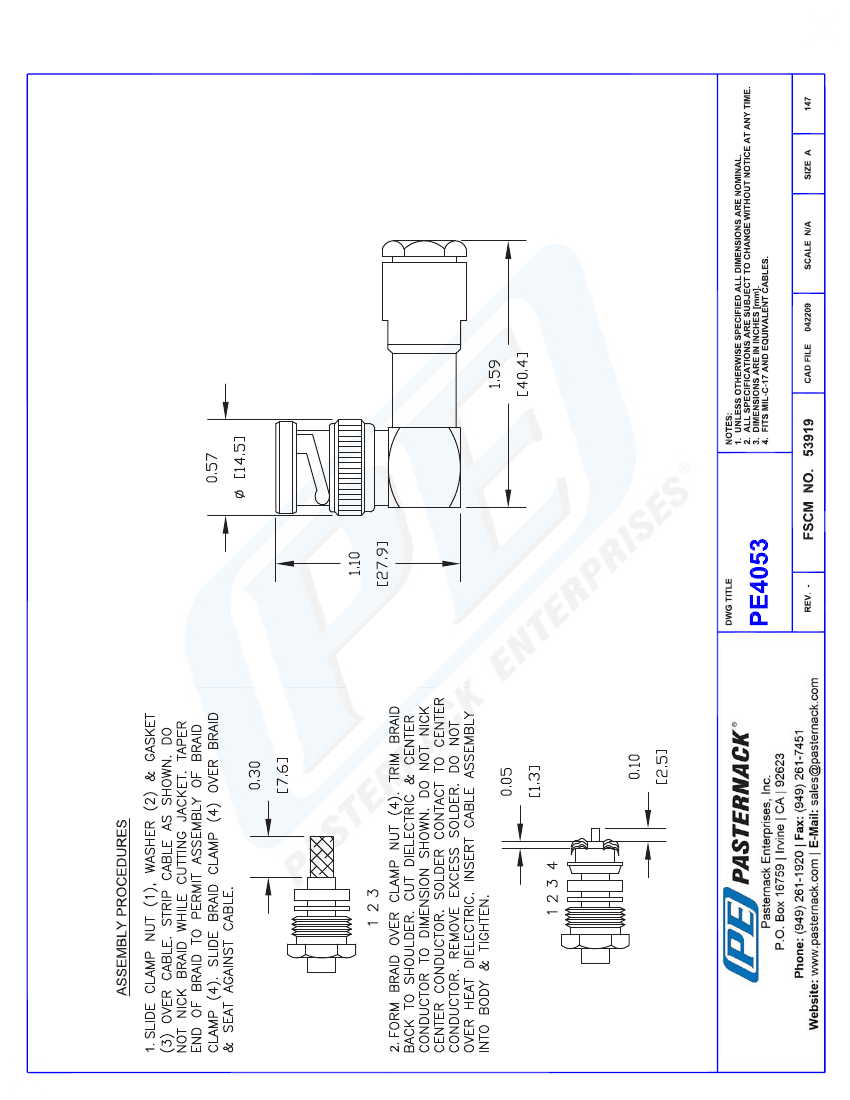

CAD Drawing
BNC Male Right Angle Connector Clamp/Solder Attachment
For RG55, RG58, RG141, RG142, RG223, RG400
© 2012 Pasternack Enterprises All Rights Reserved
PE4053 REV
3
