BNC Female Connector Clamp/Solder Attachment For
RG58, RG55, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
BNC Female
RG58,RG55,RG141,RG142,RG223,RG400
Clamp/Solder
Straight
PE4058
BNC Female Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.13 [28.7]
0.57 [14]
0.041 [18.6]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
BNC Female
Brass, Gold
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/bnc-female-standard-rg58-rg55-rg141-rg142-rg223-rg400-connector-pe4058-p.aspx
BNC Female Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400 from Pasternack
Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s
broadest selection of RF, microwave and fiber optic products.
PE4058 REV
1
PE4058

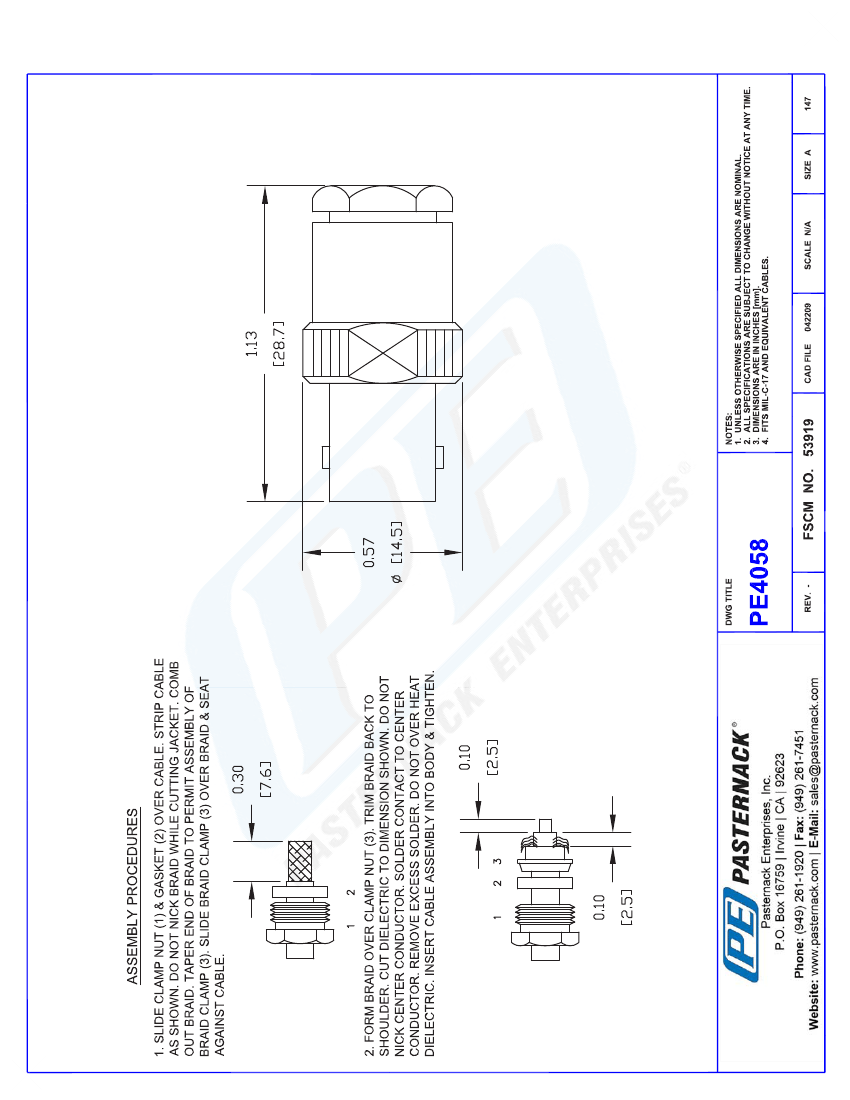

CAD Drawing
BNC Female Connector Clamp/Solder Attachment For
RG58, RG55, RG141, RG142, RG223, RG400
© 2012 Pasternack Enterprises All Rights Reserved
PE4058 REV
2
