PE4067: DescriptionTNC Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223, RG400; CategoryThe connector The connector; File Size309KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/; Environmental Compliance

Download Datasheet Parametric View All

PE4067 Overview

TNC Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223, RG400

PE4067 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pasternack Enterprises
Reach Compliance Code	unknow
ECCN code	EAR99
subject depth	1.05 inch
Body diameter	0.59 inch
Cable type	RG-55, RG-58, RG-141, RG-142, RG-223
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
Dielectric withstand voltage	1700VAC V
Filter function	NO
insulator material	TEFLON
Installation type	CABLE
Number of ports	1
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Shell surface	NICKEL
Shell material	BRASS
Termination type	SOLDER
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

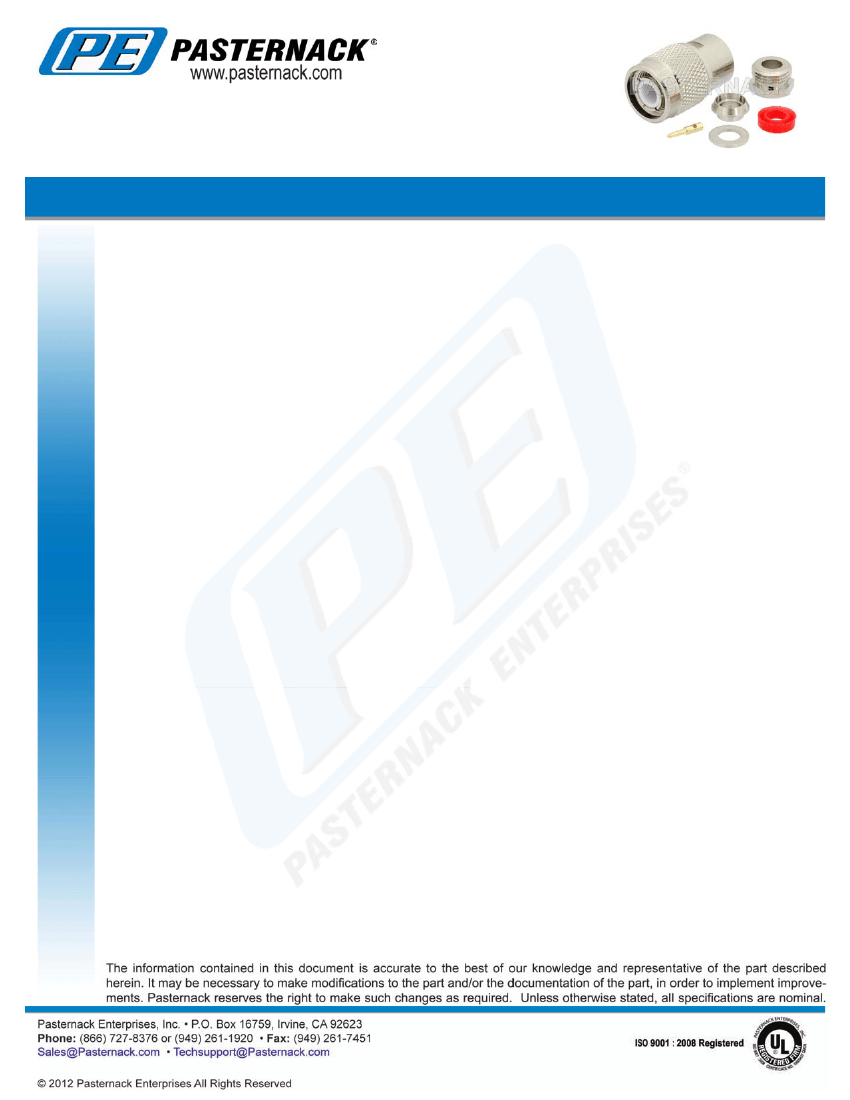

TNC Male Connector Clamp/Solder Attachment For

RG58, RG55, RG141, RG142, RG223, RG400

TECHNICAL DATA SHEET

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

TNC Male

MIL-STD-348A

RG58,RG55,RG141,RG142,RG223,RG400

Clamp/Solder

Straight

PE4067

TNC Male Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum Operating Voltage, Volts

Dielectric Withstanding Voltage, Vrms

DC to 11

500

1,500

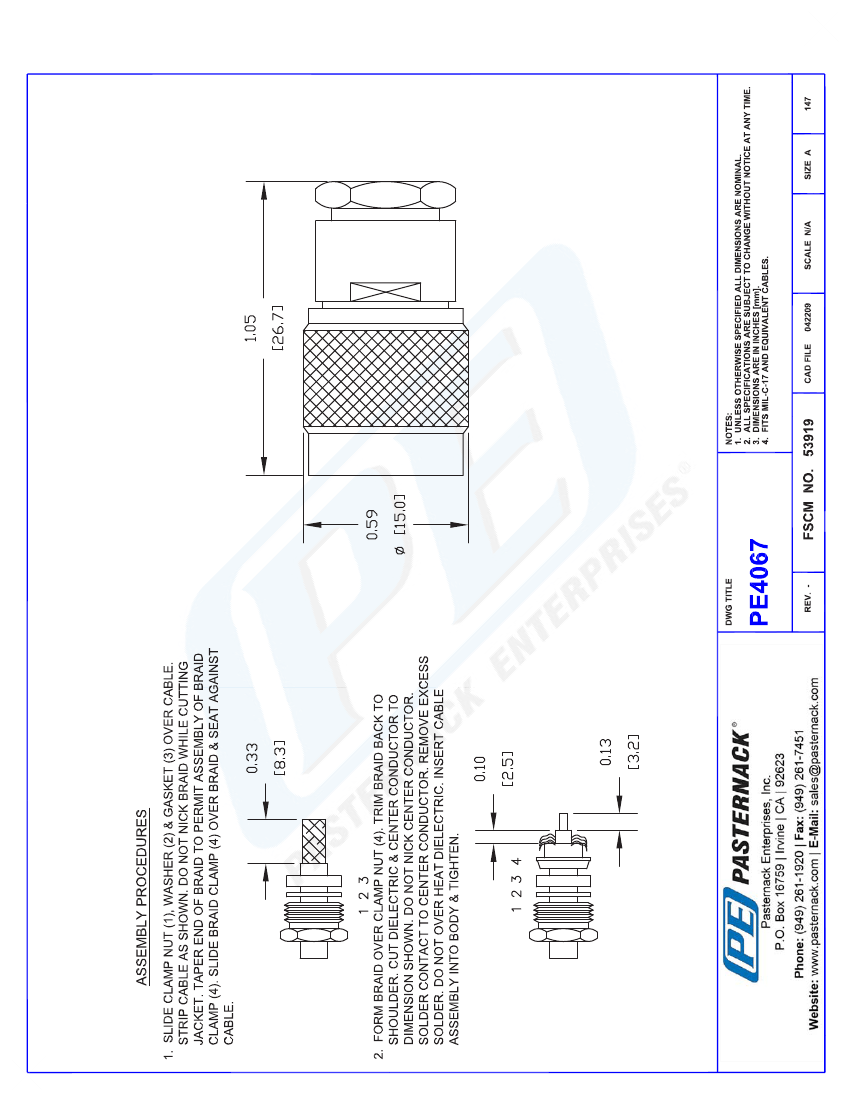

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Body Material and Plating

Body Plating Specification

Dielectric Type

1.05 [26.67]

0.59 [15]

0.041 [18.6]

TNC Male

Brass, Gold

Brass, Nickel

100µ in. minimum

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/tnc-male-standard-rg58-rg55-rg141-rg142-rg223-rg400-connector-pe4067-p.aspx

TNC Male Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400 from Pasternack

Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s

broadest selection of RF, microwave and fiber optic products.

PE4067 REV
