MHV Male Connector Crimp/Solder Attachment For RG58
TECHNICAL DATA SHEET
MHV Male Connector Crimp/Solder Attachment For RG58
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
MHV Male
RG58
Crimp/Solder
Straight
PE4093
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.508 [38.3]
0.57 [14]
0.027 [12.25]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
MHV Male
Brass
Brass
Brass
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/mhv-male-standard-rg58-connector-pe4093-p.aspx
MHV Male Connector Crimp/Solder Attachment For RG58 from Pasternack Enterprises has same day shipment for domestic
and International orders. We maintain 99% availability of the industry’s broadest selection of RF, microwave and fiber optic
products.
PE4093 REV
1
PE4093

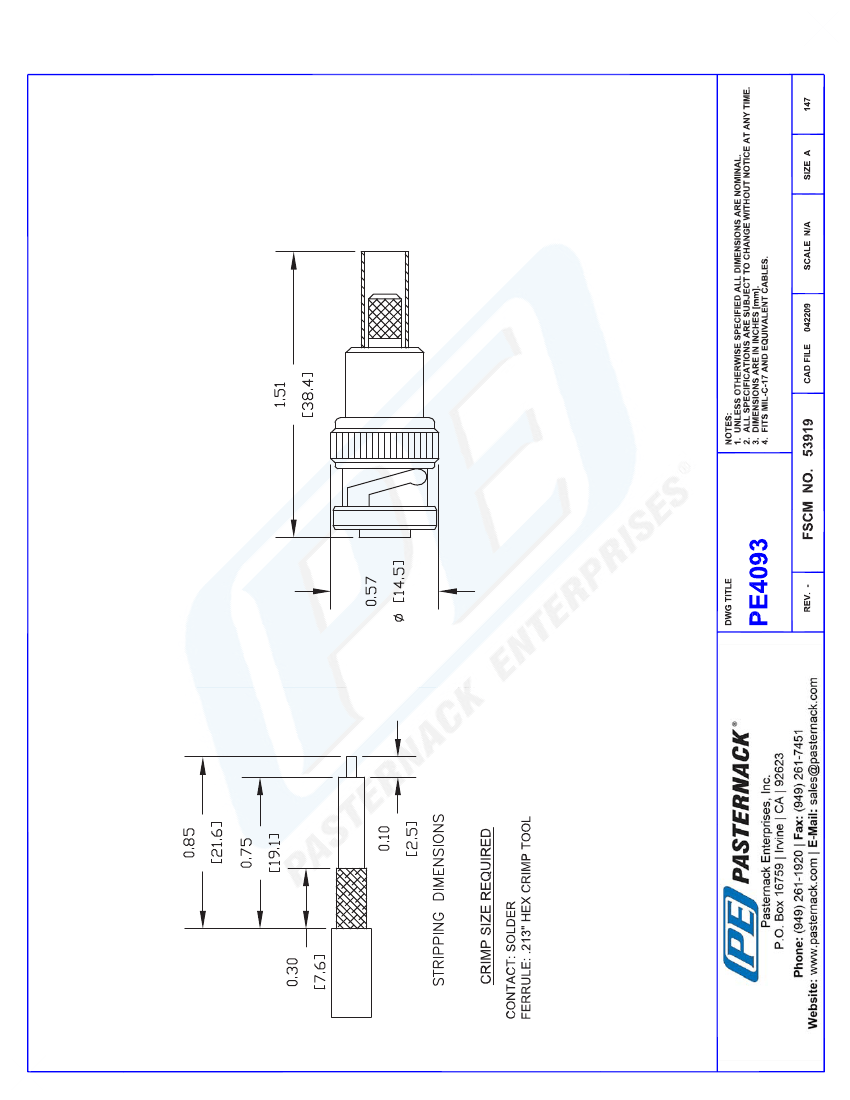

CAD Drawing
MHV Male Connector Crimp/Solder Attachment For RG58
