PE4120 Overview

SMA Female Bulkhead Connector Solder Attachment For PE-SR402AL, PE-SR402FL, RG402, .235 inch D Hole

PE4120 Parametric

Parameter NameAttribute value
MakerPasternack Enterprises
Reach Compliance Codeunknow
ECCN codeEAR99
Connector typeRF SMA CONNECTOR
Manufacturer's serial numberPE4120
SMA Female Bulkhead Connector Solder Attachment For
PE-SR402AL, PE-SR402FL, RG402, .235 inch D Hole
TECHNICAL DATA SHEET
PE4120
SMA Female Bulkhead Connector Solder Attachment For PE-SR402AL, PE-SR402FL, RG402, .235 inch D
Hole
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMA Female
MIL-STD-348A
PE-SR402AL,PE-SR402FL,RG402
Solder/Solder
Straight
Bulkhead
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
Frequency 1
Frequency, GHz
VSWR
DC to 18
50
500
1,000
DC to 6
1.23:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
0.748 [19]
0.433 [11]
0.006 [2.72]
SMA Female
Beryllium Copper, Gold
50µ in. minimum
Stainless Steel, Gold
30µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
SMA Female Bulkhead Connector Solder Attachment For PE-SR402AL, PE-SR402FL,
RG402, .235 inch D Hole PE4120

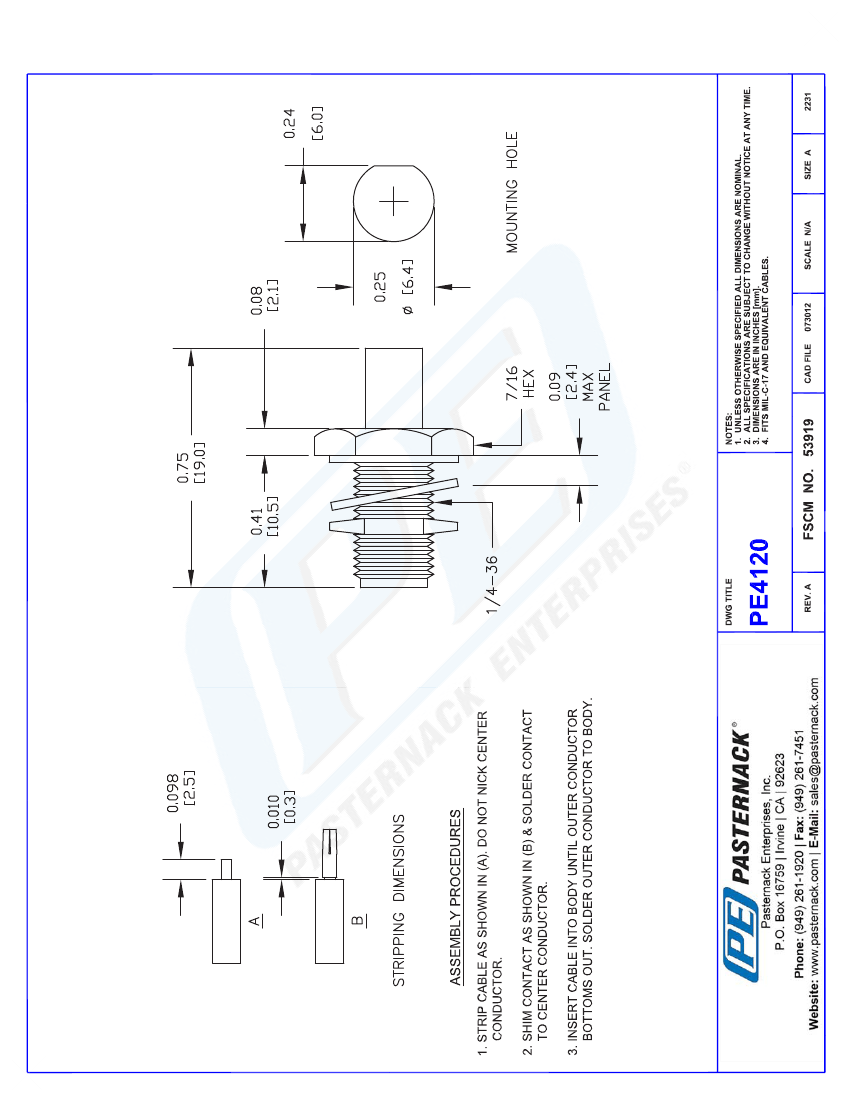

PE4120 REV
1
