BNC Twinax Jack Connector Crimp/Solder

Attachment For RG108, 78 Ohm Twinax

TECHNICAL DATA SHEET

BNC Twinax Jack Connector Crimp/Solder Attachment For RG108, 78 Ohm Twinax

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

BNC Twinax Jack

MIL-C-39012

RG108,78 Ohm Twinax

Crimp/Solder

Straight

PE4235

Electrical Specifications

Impedance, Ohms

Mechanical Specifications

Temperature

Operating Range, deg C

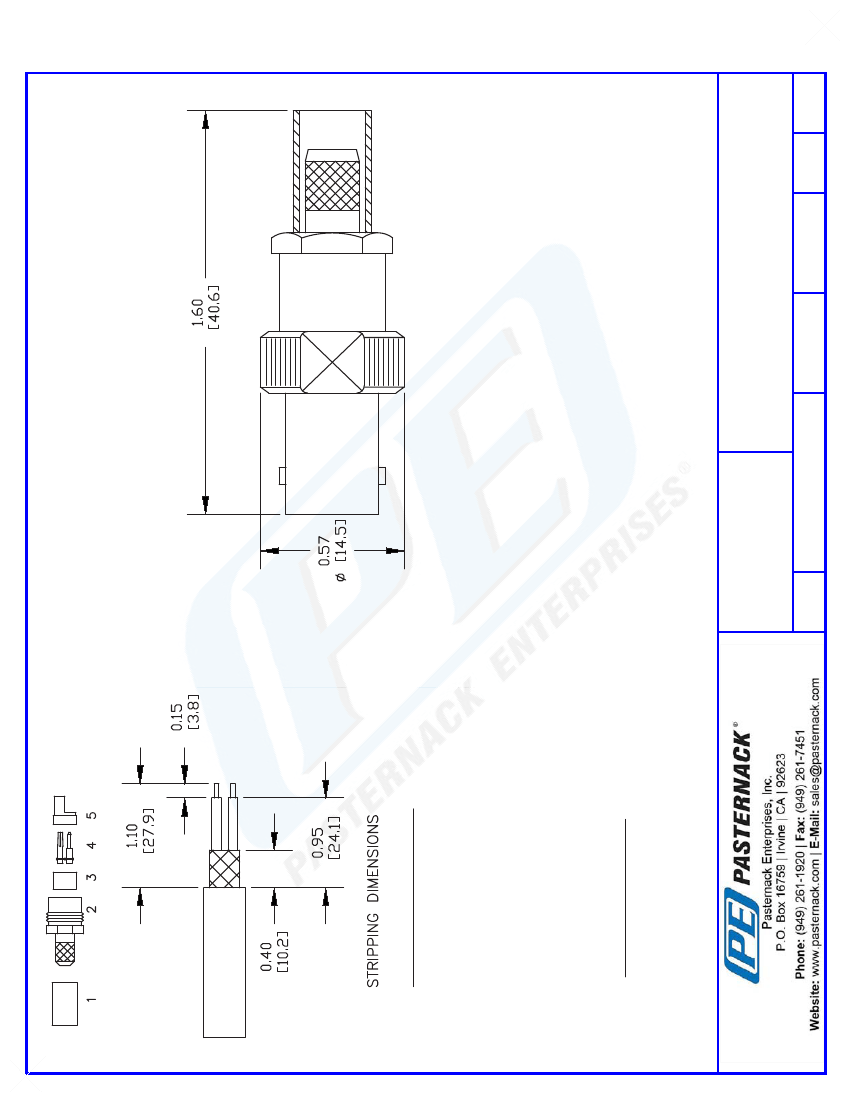

Size

Length, in [mm]

Width/Dia., in [mm]

-65 to +165

1.6 [40.64]

0.57 [14.48]

0.041 [18.6]

BNC Twinax Jack

Silver

QQ-S-365

Brass, Nickel

Teflon

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Dielectric Type

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

BNC Twinax Jack Connector Crimp/Solder Attachment For RG108, 78 Ohm Twinax from Pasternack Enterprises has same

day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability

and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

BNC Twinax Jack Connector Crimp/Solder Attachment For RG108, 78 Ohm Twinax PE4235

URL:

http://www.pasternack.com/bnc-twinax-jack-standard-rg108-78-ohm-twinax-connector-pe4235-p.aspx

PE4235 REV
