PE4241: DescriptionC Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .718 inch Hole Spacing; CategoryThe connector The connector; File Size245KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/; Environmental Compliance

Download Datasheet Parametric View All

PE4241 Overview

C Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .718 inch Hole Spacing

PE4241 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pasternack Enterprises
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	VSWR MAX AT 10 GHZ
Characteristic impedance	50 Ω
Connector type	RF C CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	PE4241
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

C Female Connector Solder Attachment 4 Hole Flange

Solder Cup Terminal, .718 inch Hole Spacing

TECHNICAL DATA SHEET

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

Mount Method

C Female

MIL-STD-348A

Solder Cup

Solder

Straight

4 Hole Flange

PE4241

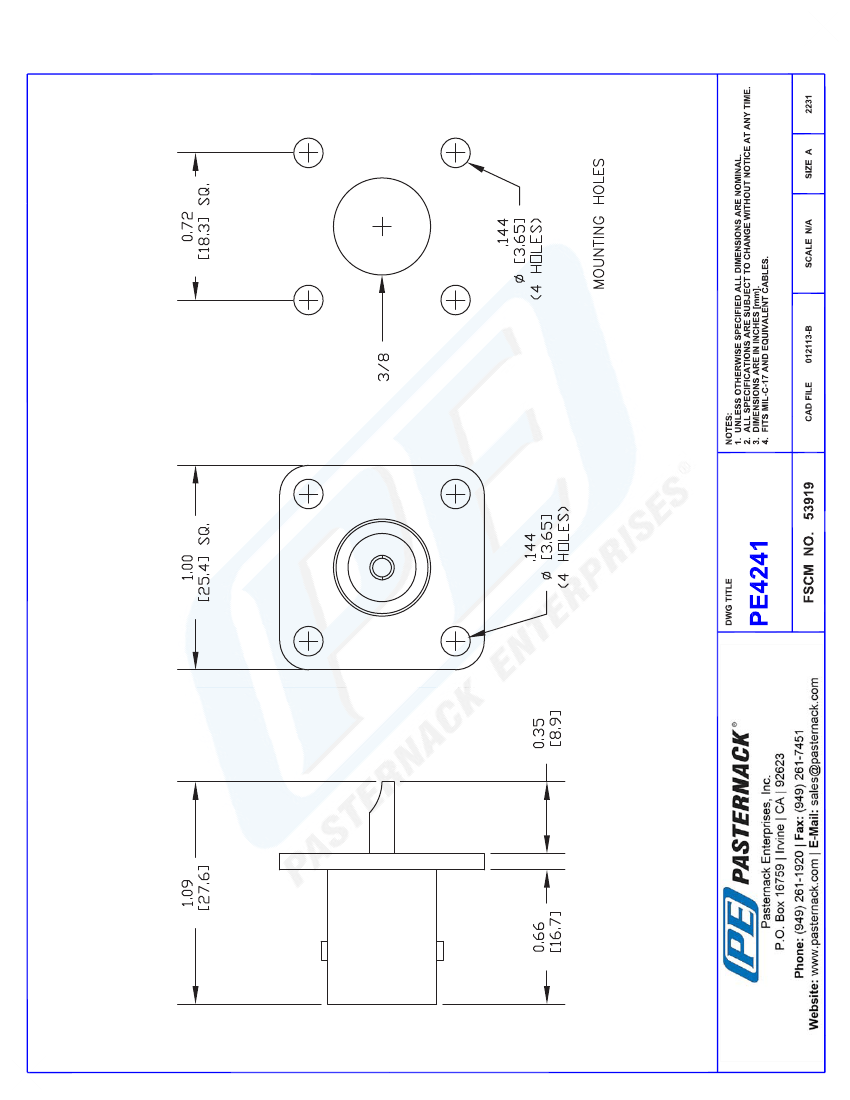

C Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .718 inch Hole Spacing

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum Operating Voltage, Volts

Dielectric Withstanding Voltage, Vrms

Frequency 1

Frequency, GHz

VSWR

DC to 11

50

1,000

3,000

DC to 10

1.3:1

Mechanical Specifications

Temperature

Operating Range, deg C

Size

Length, in [mm]

Width/Dia., in [mm]

Height, in [mm]

.

-65 to +165

1.09 [27.69]

1 [25]

1 [25.4]

0.041 [18.6]

C Female

Brass, Gold

Brass, Nickel

100µ in. minimum

Teflon

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Body Material and Plating

Body Plating Specification

Dielectric Type

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/c-female-standard-solder-cup-terminal-connector-pe4241-p.aspx

C Female Connector Solder Attachment 4 Hole Flange Solder Cup Terminal, .718 inch Hole Spacing from Pasternack

Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s

PE4241 REV

1
