PE4293 Overview

75 Ohm SMC Plug Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing

Preview

Download Datasheet

View All

75 Ohm SMC Plug Right Angle Connector Solder Attachment

Thru Hole PCB, .200 inch x .067 inch Hole Spacing

TECHNICAL DATA SHEET

PE4293

75 Ohm SMC Plug Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole

Spacing

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

SMC Plug

MIL-C-39012

Thru Hole

Solder

Right Angle

Electrical Specifications

Impedance, Ohms

Mechanical Specifications

Temperature

Operating Range, deg C

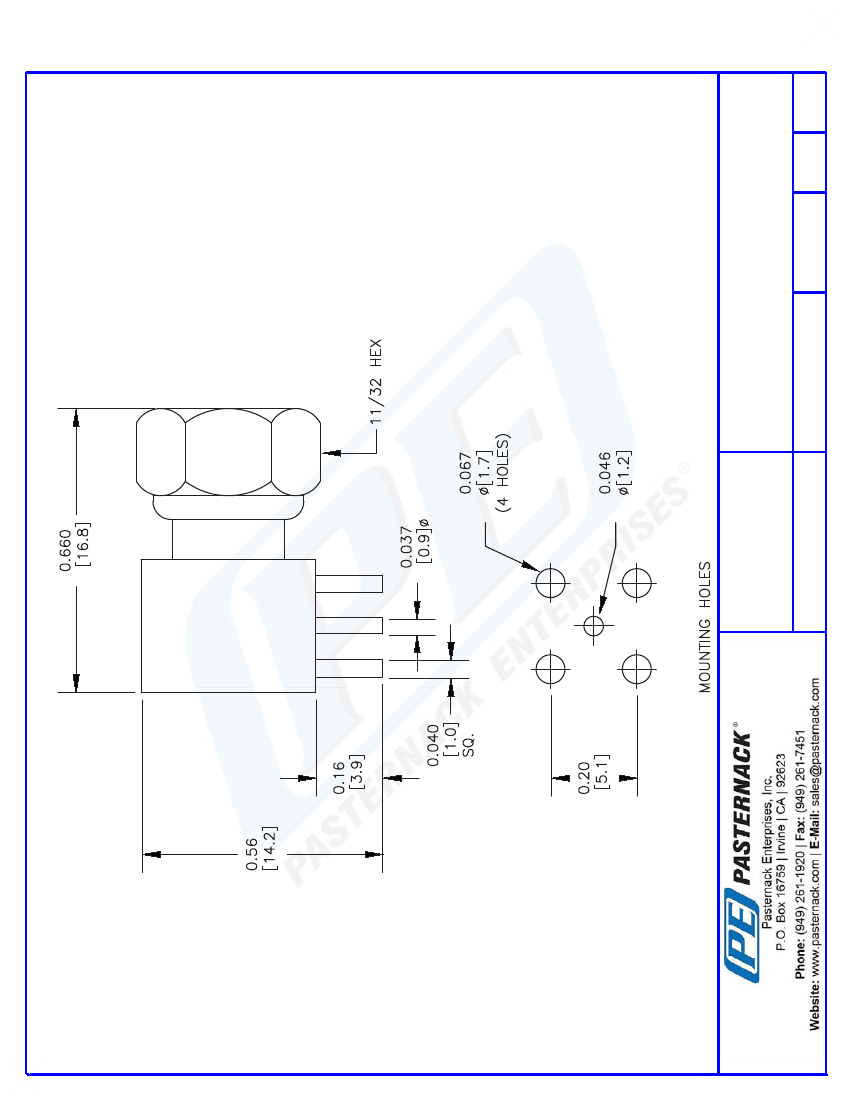

Size

Length, in [mm]

Width/Dia., in [mm]

Height, in [mm]

-65 to +165

0.66 [16.76]

0.345 [8.76]

0.56 [14.22]

0.013 [5.9]

SMC Plug

Gold

MIL-G-45204

Brass, Nickel

Teflon

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Dielectric Type

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

75 Ohm SMC Plug Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x

.067 inch Hole Spacing PE4293

PE4293 REV
