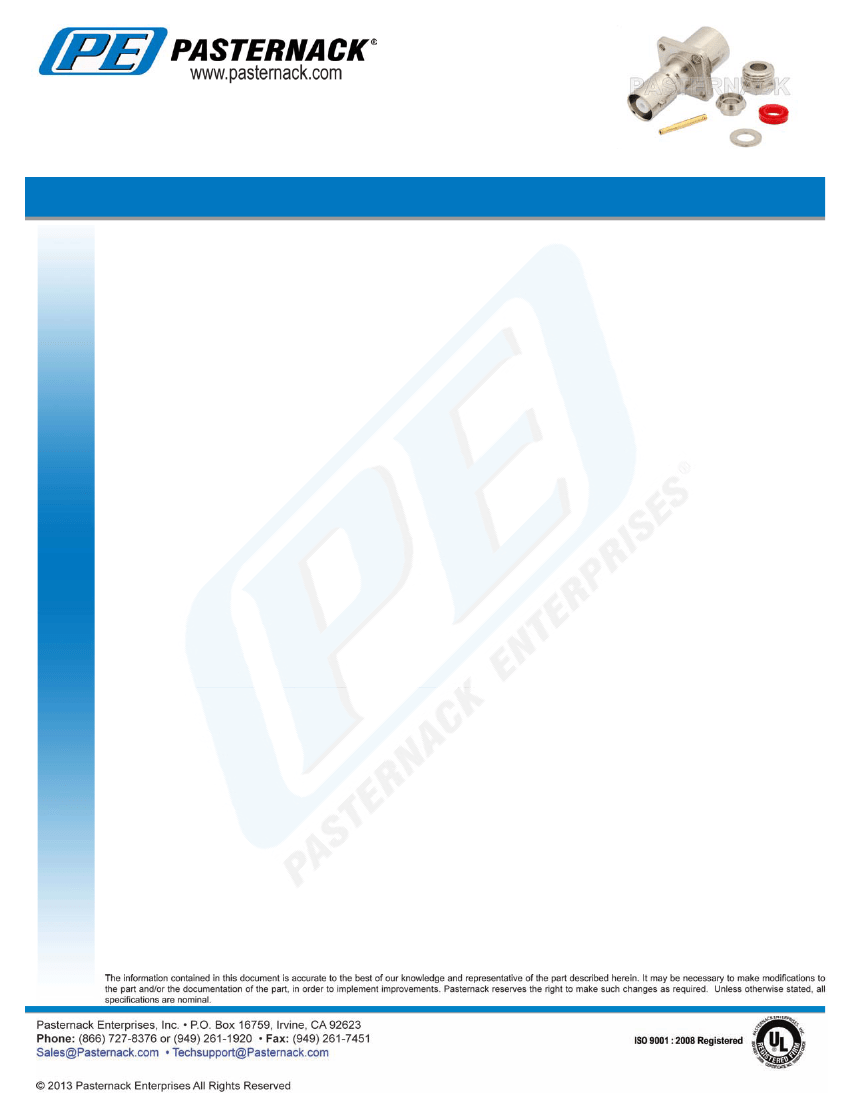

MHV Female Connector Clamp/Solder Attachment
4 Hole Flange For RG55, RG58, RG141, RG142,
RG223, RG400, .500 inch Threaded Hole Spacing
TECHNICAL DATA SHEET
PE4313
MHV Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58, RG141, RG142,
RG223, RG400, .500 inch Threaded Hole Spacing
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
MHV Female
RG55,RG58,RG141,RG142,RG223,RG400
Clamp/Solder
Straight
4 Hole Flange
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.5 [38.1]
0.687 [17.45]
0.687 [17.45]
0.055 [24.95]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
MHV Female
Brass, Gold
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
MHV Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58, RG141,
RG142, RG223, RG400, .500 inch Threaded Hole Spacing PE4313
PE4313 REV
1
MHV Female Connector Clamp/Solder Attachment
4 Hole Flange For RG55, RG58, RG141, RG142,
RG223, RG400, .500 inch Threaded Hole Spacing
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4313
MHV Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58, RG141, RG142, RG223, RG400, .500
inch Threaded Hole Spacing from Pasternack Enterprises has same day shipment for domestic and International orders. Our
RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
MHV Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58, RG141,
RG142, RG223, RG400, .500 inch Threaded Hole Spacing PE4313
URL:
http://www.pasternack.com/mhv-female-standard-rg55-rg58-rg141-rg142-rg223-rg400-connector-pe4313-p.aspx
PE4313 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
ASSEMBLY PROCEDURES
PE4313

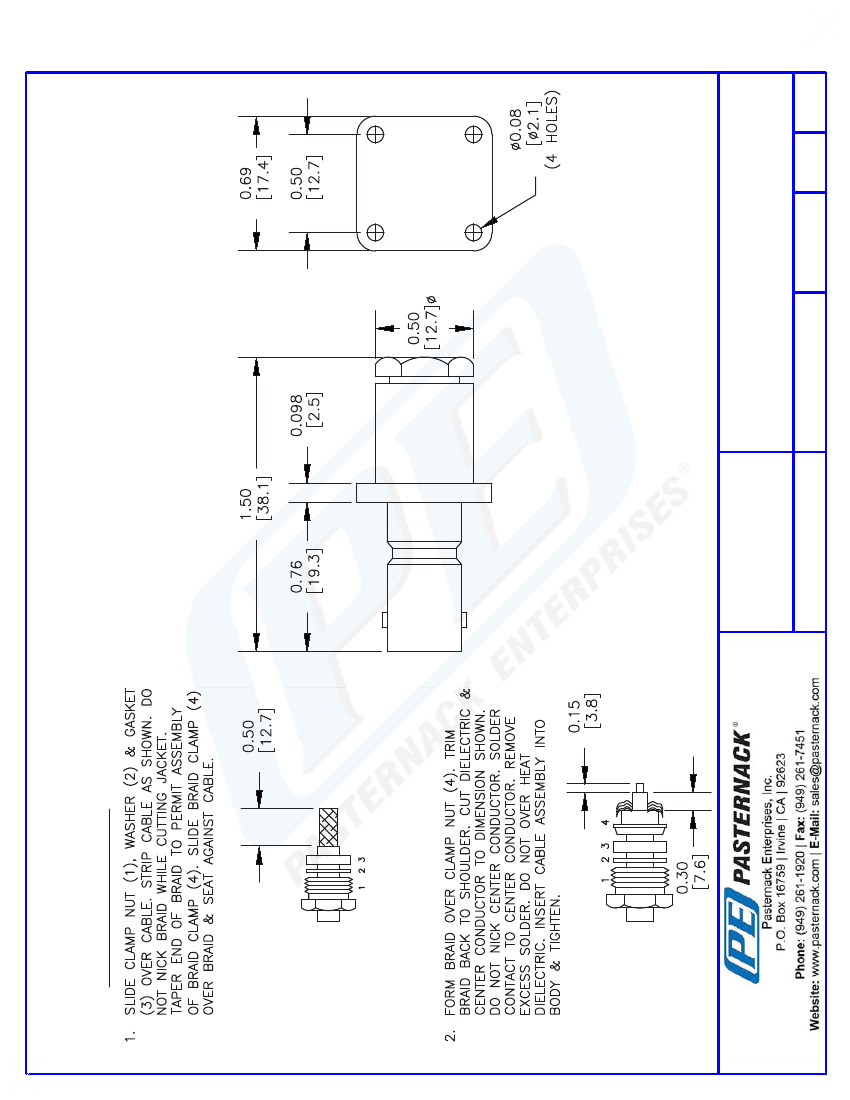

CAD Drawing
MHV Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55,
RG58, RG141, RG142, RG223, RG400, .500 inch Threaded Hole Spacing
PE4313 REV
PE4313
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
050702
SCALE N/A
SIZE A
XXXX
3
