SSMB Jack Bulkhead Connector Solder Attachment
Turret Terminal, .126 inch D Hole, Front Mount
TECHNICAL DATA SHEET
PE4339
SSMB Jack Bulkhead Connector Solder Attachment Turret Terminal, .126 inch D Hole, Front Mount
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SSMB Jack
MIL-STD-348A
Turret
Solder
Straight
Bulkhead
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.51 [12.95]
0.156 [3.96]
0.002 [0.91]
SSMB Jack
Brass, Gold
30µ in. minimum
Brass, Gold
30µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SSMB Jack Bulkhead Connector Solder Attachment Turret Terminal, .126 inch D Hole, Front
Mount PE4339
PE4339 REV
1
SSMB Jack Bulkhead Connector Solder Attachment
Turret Terminal, .126 inch D Hole, Front Mount
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4339
SSMB Jack Bulkhead Connector Solder Attachment Turret Terminal, .126 inch D Hole, Front Mount from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SSMB Jack Bulkhead Connector Solder Attachment Turret Terminal, .126 inch D Hole, Front
Mount PE4339
URL:
http://www.pasternack.com/ssmb-jack-standard-turret-terminal-connector-pe4339-p.aspx
PE4339 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
SSMB Jack Bulkhead Connector Solder Attachment Turret
Terminal, .126 inch D Hole, Front Mount
PE4339

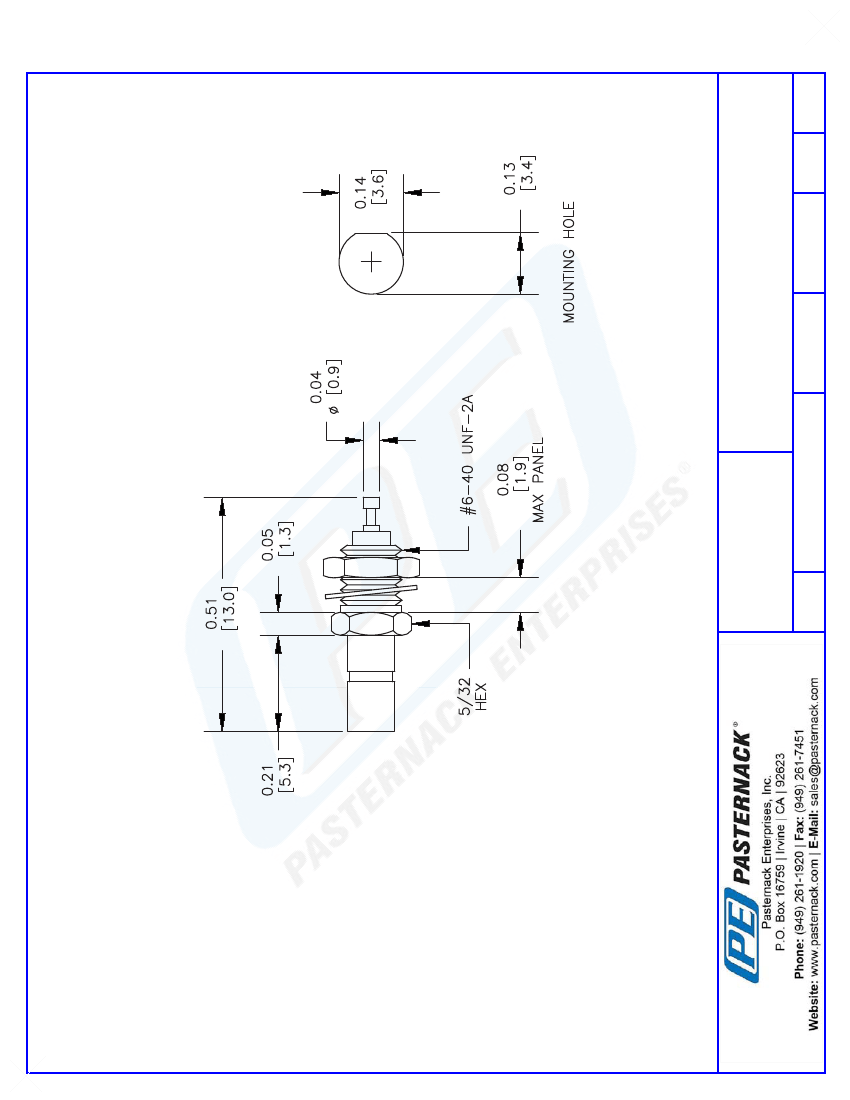

CAD Drawing
PE4339 REV
PE4339
REV. -
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
112304
SCALE N/A
SIZE A
2233
3
