TSHR-2-S: Description.079cl Single Row - Right Angle Terminal Strip Headers; File Size83KB，1 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/

Download Datasheet View All

TSHR-2-S Overview

.079cl Single Row - Right Angle Terminal Strip Headers

Preview

Download Datasheet

View All

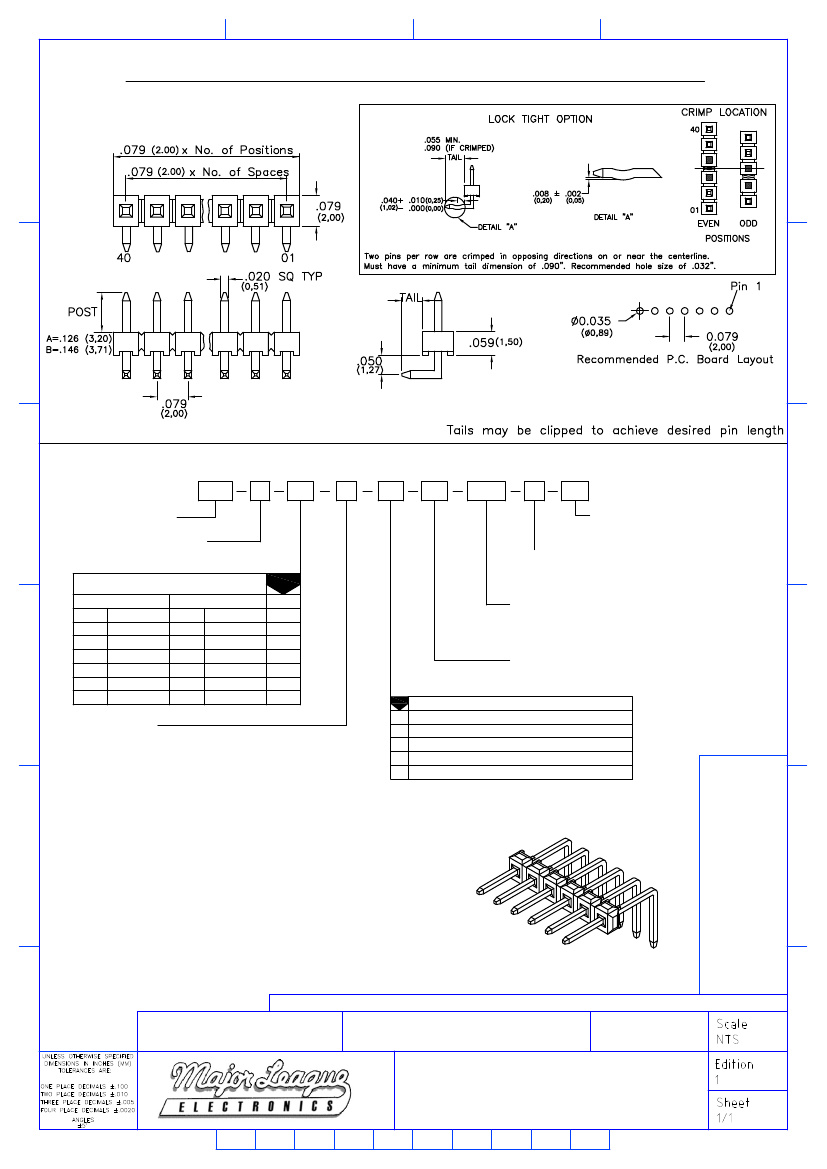

Major League Electronics .079 cl Terminal Strip Headers - Right Angle

Ordering Information

TSHR-2

01 - 40

XXX

Lead Free

Pins Per Row

Row Specification

S = Single Row

Every Other Pin Filled

Pin Options

Tail With .126 Post

3.05mm

.120

3.56mm

.140

4.06mm

.160

5.05mm

.199

7.57mm

.298

8.08mm

.318

8.56mm

.337

Tail With .146 Post

2.54mm

.100

3.05mm

.120

3.56mm

.140

4.55mm

.179

7.06mm

.278

7.57mm

.298

8.05mm

.317

Leave blank if not needed

E = Filled

Leave blank if not needed

If required, specify empty pin position, e.g. 012 for Pin 12

Polarized Position

Leave blank if not needed

LT = With

Lock Tight "LT" Option

Plating Options

G 10µ Gold on Contact Area / Flash on Tail

Matte Tin All Over

GT 10µ Gold on Contact Area / Matte Tin on Tail

H 30µ Gold on Contact Area / Matte Tin on Tail

F Gold Flash over Entire Pin

A = .126 (3.20)

B = .146 (3.71)

Post Height

Specifications

Current Rating: 3.0 Ampere

Insulation Resistance: 1000MΩ Min.

Dielectric Withstanding: 500V AC

Contact Resistance: 20 mΩ Max.

Operating Temperature: -40°C to + 105°C

Max. Process Temperature:

Peak: 260°C up to 10 secs.

Process: 230°C up to 60 secs.

Wave: 260°C up to 6 secs.

Manual Solder: 350°C up to 5 secs.

Materials

Contact Material: Phosphor Bronze

Insulator Material: Nylon 6T

Plating: Au or Sn over 50µ" (1,27) Ni

Mates with

BCSS,

BSSH,

BSSHC,

BSSQ,

BSSQC,

BSSQM,

LSMBC,

LSSHSM,

SMBC,

SSHQ,

SSHQR,

SSHR,

SSHS,

SSHSM,

ULSMBC

Products cut to specific sizes are uncancellable/nonreturnable

Parts are subject to change without notice

TSHR-2-S SERIES

.079cl Single Row - Right Angle

Terminal Strip Headers

21 FEB 07

4235 Earnings Way, New Albany, Indiana, 47150, USA

1-800-782-3486 (USA/Canada/Mexico)

Tel: 812-944-7244

Fax: 812-944-7268

E-mail: mle@mlelectronics.com

Web: www.mlelectronics.com
