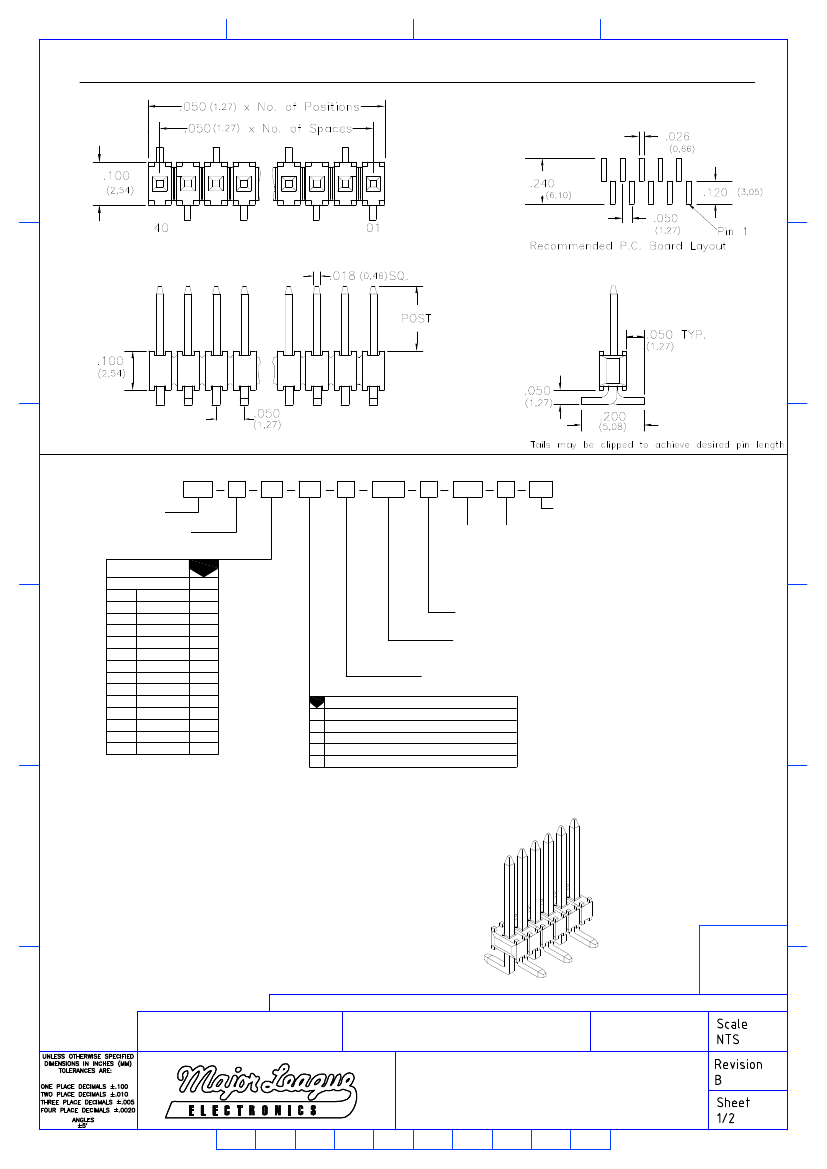

Major League Electronics .050x.100 cl Terminal Strip Headers - Surface Mount - Vertical - Custom

Ordering Information

TSHSM-6

XX

01 - 40

S

XX

V

XXX

S

XX

X

LF

Lead Free

Pins Per Row

Row Specification

S = Single Row

Pin Options

Post Height

2.54mm

.100

3.18mm

.125

4.83mm

.190

5.13mm

.205

5.84mm

.230

7.24mm

.285

8.51mm

.335

9.91mm

.390

10.29mm

.405

10.92mm

.430

12.32mm

.485

13.59mm

.535

15.37mm

.605

16.64mm

.655

04

06

08

10

12

14

16

18

20

22

24

26

28

30

Packing Information

TR-P = Tape and Reel with Plastic Pick and Place pad

TB-P = Tube with Plastic Pick and Place pad

TB-0 = Tube without Pick and Place Pad

If left blank, packaging at MLE's discretion

Pad may be metal, mylar or plastic

S = pin 1 left

Leave blank if not needed

If required, specify empty pin position, e.g. 012 for Pin 12

Footprint

Polarized Position

Vertical

Plating Options

G

T

GT

H

F

10µ Gold on Contact Area / Flash on Tail

Matte Tin All Over

10µ Gold on Contact Area / Matte Tin on Tail

30µ Gold on Contact Area / Matte Tin on Tail

Gold Flash over Entire Pin

Specifications

Current Rating: 1.0 Ampere

Insulation Resistance: 1000MΩ Min.

Dielectric Withstanding: 300V AC

Contact Resistance: 20 mΩ Max.

Operating Temperature: -40°C to + 105°C

Max. Process Temperature:

Peak: 260°C up to 10 secs.

Process: 230°C up to 60 secs.

Wave: 260°C up to 6 secs.

Reflow: 260°C up to 10 secs.

Manual Solder: 350°C up to 5 secs.

Materials

Contact Material: Phosphor Bronze

Insulator Material: Nylon 6T

Plating: Au or Sn over 50µ" (1.27) Ni

Mates with:

LSSHS,

SMSS,

SSHS

Parts are subject to change without notice

Products cut to specific sizes are uncancellable/nonreturnable

TSHSM-6-SV-S SERIES

Terminal Strip Headers - Surface Mount

05 FEB 07

4235 Earnings Way, New Albany, Indiana, 47150, USA

1-800-782-3486 (USA/Canada/Mexico)

Tel: 812-944-7244

Fax: 812-944-7268

E-mail: mle@mlelectronics.com

Web: www.mlelectronics.com
