2-1393771-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 2-1393771-8

2-1393771-8: DescriptionDRY REED RELAY, SPDT, MOMENTARY, 0.011A (COIL), 24VDC (COIL), 262mW (COIL), 0.5A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size285KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric View All

2-1393771-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1393771-8	-	-	View	Buy Now

2-1393771-8 Overview

DRY REED RELAY, SPDT, MOMENTARY, 0.011A (COIL), 24VDC (COIL), 262mW (COIL), 0.5A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

2-1393771-8 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-35 Cel
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
seal	EPOXY TERMINAL SEALED
Coil power	262 mW
Relay action	MOMENTARY
Relay function	SPDT
Coil resistance	2200 ohm
Electrical life	1.00E6 Cycle(s)
terminal coating	NOT SPECIFIED
Manufacturer Series	1393771
Maximum DC coil current	0.0110 A
Maximum DC coil voltage	24 V
Maximum DC contact current	0.5000 A
Maximum DC contact voltage	28 V
DC coil operating voltage	19.2 V
DC coil release voltage	2 V
width	7.62 mm
high	8 mm
length or diameter	19.56 mm
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	1.5 ms
Relay type	DRY REED RELAY
release time	3 ms
Terminal type	SOLDER

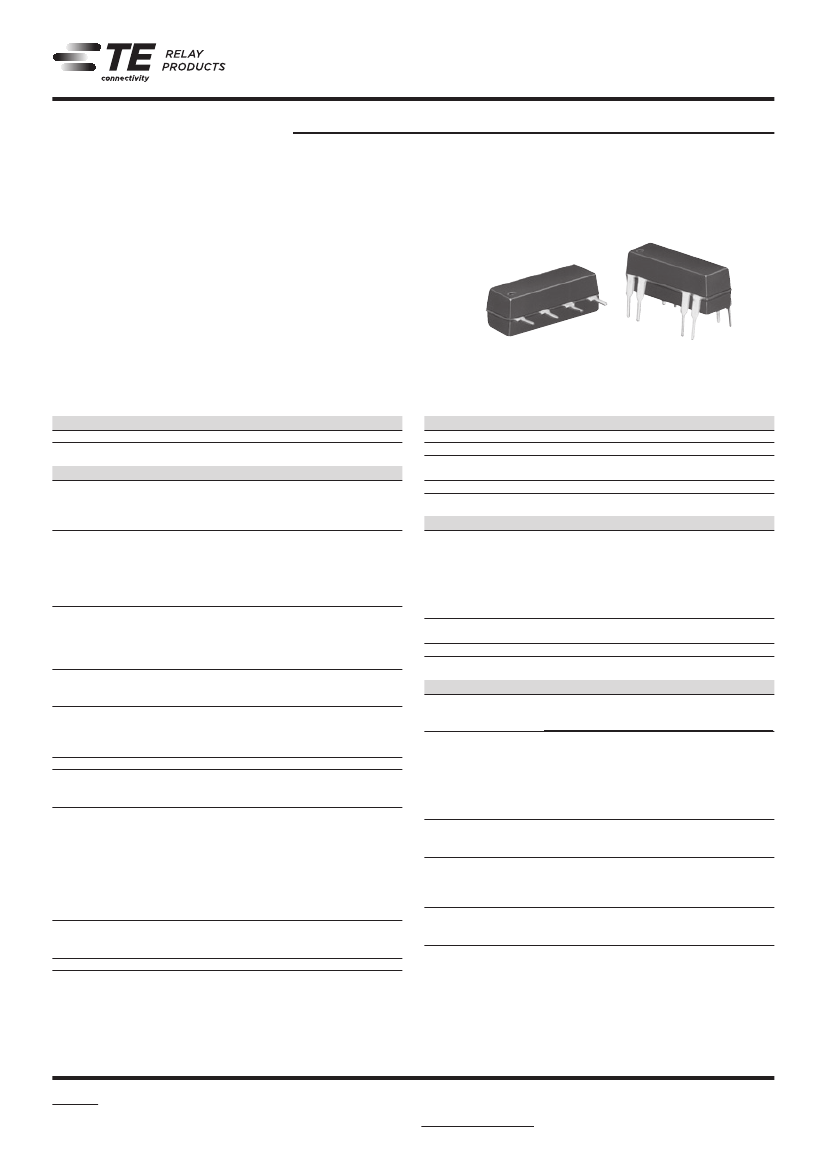

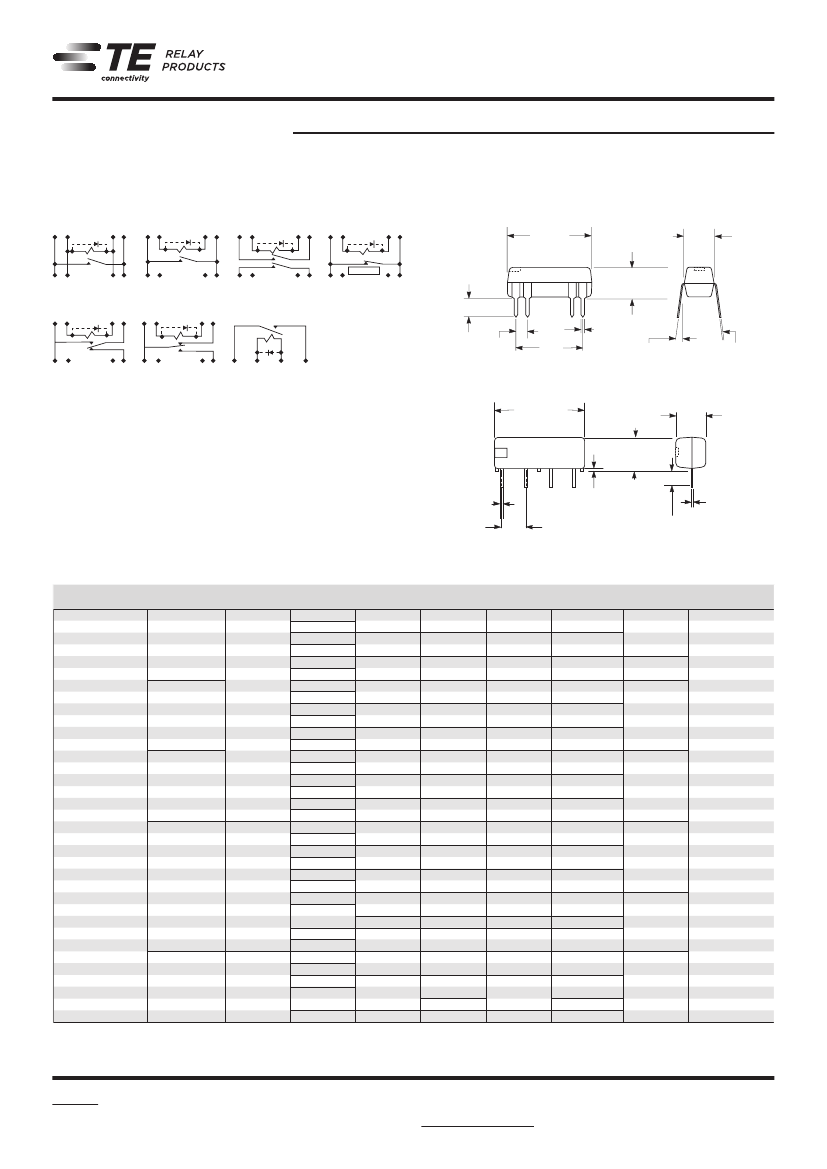

Preview

Download Datasheet

View All

Signal Relays

JWD/JWS Series Reed Relays

Potter & Brumfield

JWD has dual in-line package (DIP) configuration (14-pin DIP)

JWS has single in-line package (SIP) configuration

Low cost, dry reed reliability with various contact arrangements

Wave solderable and immersion cleanable molded epoxy package

Optional coil suppression diode

Typical applications

Telecommunications, measurement and control, automated test equipment,

security systems, medical equipment.

Approvals

UL E29244, CSA LR81479

Technical data of approved types on request

Contact Data

Contact arrangement

JWD and JWS

JWD only

Rated voltage

1 form A, 1 form B and 2 form A

20VDC, 500mA

1 form C (CO)

10 VDC, 500mA and 10VDC, 10mA

Max. switching voltage

1 form A, 1 form B and 2 form A

100VDC

1 form C (CO)

28VDC

Rated current

1 form A, 1 form B and 2 form A

500mA, 20VDC

1 form C (CO)

500mA, 10VDC

Limiting making current

500mA

Limiting breaking current

500mA

Switching power

form A (NO) and form B (NC)

10W

form C (CO)

Contact material

Ruthenium

Min. recommended contact load

10mV, 10mA

Minimum switching voltage

10mV

Initial contact resistance

200mΩ max. at 10mA, 6VDC

Frequency of operation

100Hz

Operate/release time max., incl. bounce

form A (NO) and form B (NC)

1.5/0.5ms

form C (CO)

1.5/3.0ms

Electrical endurance

form A (NO) and form B (NC), resistive load, +25°C

20VDC, 500mA

1x10

ops.

20VDC, 250mA

20x10

ops.

5VDC, 1mA

100x10

ops.

form C (CO) contact, resistive load, +25°C

10VDC, 500mA

1x10

ops.

10VDC, 250mA

20x10

ops.

5VDC, 1mA

100x10

ops.

Contact ratings

1 form A, 1 form B and 2 form A

500mA, 20VDC

1 form C (CO)

500mA, 10VDC

Mechanical endurance

100x10

operations

1 form A (NO) contact

1 form B (NC), 1 form C (CO),

2 form A (NO)

Coil voltage range

Min./Max. energization duration

Max. coil temperature

Thermal resistance

Coil insulation system according UL

Coil Data

5 to 24VDC

continuous

105º C

approximately 100ºC/W

class A

Insulation Data

Initial dielectric strength

between open contacts

form A (NO) and form B (NC)

form C (CO)

between contact and coil

between adjacent contacts

2 form A (NO) of JWD only

Initial insulation resistance

between insulated elements

Capacitance between open contacts

250VDC,

175VDC

500VDC

Ω at 100VDC

typ. 0.5pF

Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content

refer to the Product Compliance Support Center at

www.te.com/customersupport/rohssupportcenter

Ambient temperature

-35ºC to +85ºC

Category of environmental protection

IEC 61810

RTIII -wash tight

Vibration resistance (functional)

20g, 10 to 2000 Hz

Shock resistance (functional), 3 planes, half sine pulse, 8ms

form A (NO)

100g

form B (NC) and form C (CO)

50g

Terminal type

PCB-THT

Mounting position

any

Weight

approximately 2.3g ( 0.08 oz.)

Resistance to soldering heat THT

IEC 60068-2-20, wave solder

max. 260ºC/10s

Ultrasonic cleaning

Conformal coating

yes

Packaging/unit

tray/50 pcs.,

bundle/250 pcs.,

box/500 pcs.

Other Data

07-2012, Rev. 0712

www.te.com

a TE Connectivity Ltd. company

Datasheets and product specification

according to IEC 61810-1 and to be used

only together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.
