1 dB Fixed Attenuator, SMA Male To SMA Female Stainless Steel
Body Rated To 2 Watts Up To 26 GHz
PE7087-1
26 GHz SMA Attenuator
The Pasternack PE7087 attenuator series utilizes high performance SMA connectors to increase attenuator performance
to 26 GHz. This high frequency attenuator family has a stainless steel round body construction with an anti-torque nut
to improve installation and removal in a system. The high performance 26 GHz attenuator line is available in 1 dB steps
from 0 dB to 10 dB for accurate system power leveling. 12 dB, 15 dB, 20 dB and 30 dB attenuators are available for
millimeter wave applications.
Connector 1
Connector 2
Frequency Range (GHz)
Body Material and Plating
Design
Frequency Range (GHz)
Impedance (Ohms)
Power, Max Input (Watts)
Standard Attenuation Values (dB)
VSWR Max Input
Frequency 1
Range (GHz)
Attenuation Accuracy (GHz)
VSWR
Frequency 2
Range (GHz)
Attenuation Accuracy (±dB)
VSWR
Frequency 3
Range (GHz)
Attenuation Accuracy (±dB)
VSWR
SMA Male
SMA Female
DC to 26
Stainless Steel, Passivated
Fixed
DC to 26
50
2
1
1.35:1
DC to 6
0.5
1.15:1
6 to 18
0.5
1.25:1
18 to 26
0.5
1.35:1
Configuration
Electrical Specifications
Click the following link for the additional product information:
1 dB Fixed Attenuator, SMA Male To SMA Female Stainless Steel Body Rated To 2 Watts Up To 26 GHz PE7087-1
Version C - Revision - © 2011 Pasternack Enterprises All Rights Reserved.
Pasternack Enterprises, Inc. • P.O. Box 16759, Irvine, CA 92623
Phone:
(866) 727-8376 or (949) 261-1920 •
Fax:
(949) 261-7451
Sales@Pasternack.com
•
Techsupport@Pasternack.com
1
1 dB Fixed Attenuator, SMA Male To SMA Female Stainless Steel
Body Rated To 2 Watts Up To 26 GHz
PE7087-1

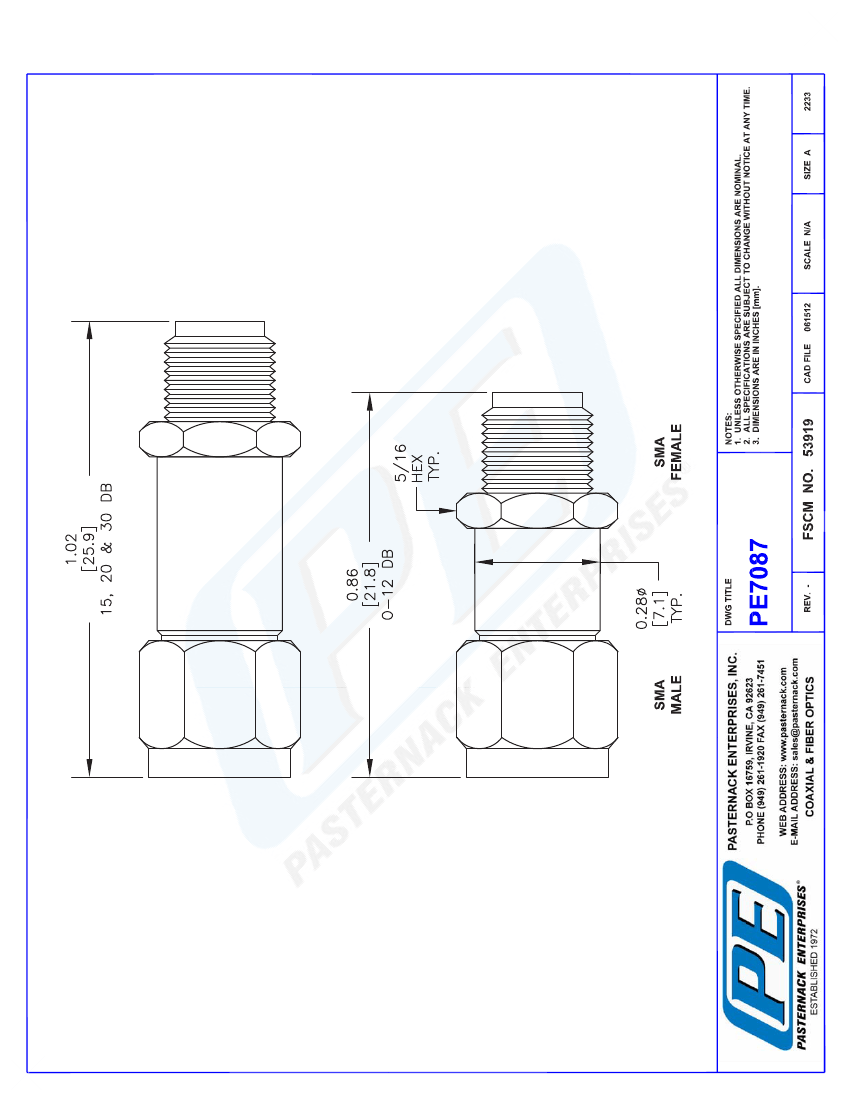

Mechanical Specifications
Temperature Operating Range (deg C)
Body Material and Plating
Connector 1
Type
Gender
Body Material and Plating
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
Connector 2
Type
Gender
Body Material and Plating
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
-65 to +125
Stainless Steel, Passivated
SMA
Male
Stainless Steel, Passivated
BeCu, Gold
Stainless Steel, Passivated
Stainless Steel, Passivated
SMA
Female
Stainless Steel, Passivated
BeCu, Gold
Stainless Steel, Passivated
Stainless Steel, Passivated
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes, by exemption
Other Data
URL:
http://www.pasternack.com/1db-fixed-sma-male-sma-female-2-watts-attenuator-pe7087-1-p.aspx
1 dB Fixed Attenuator, SMA Male To SMA Female Stainless Steel Body Rated To 2 Watts Up To 26 GHz
from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
