PTSHS-5-D

Description

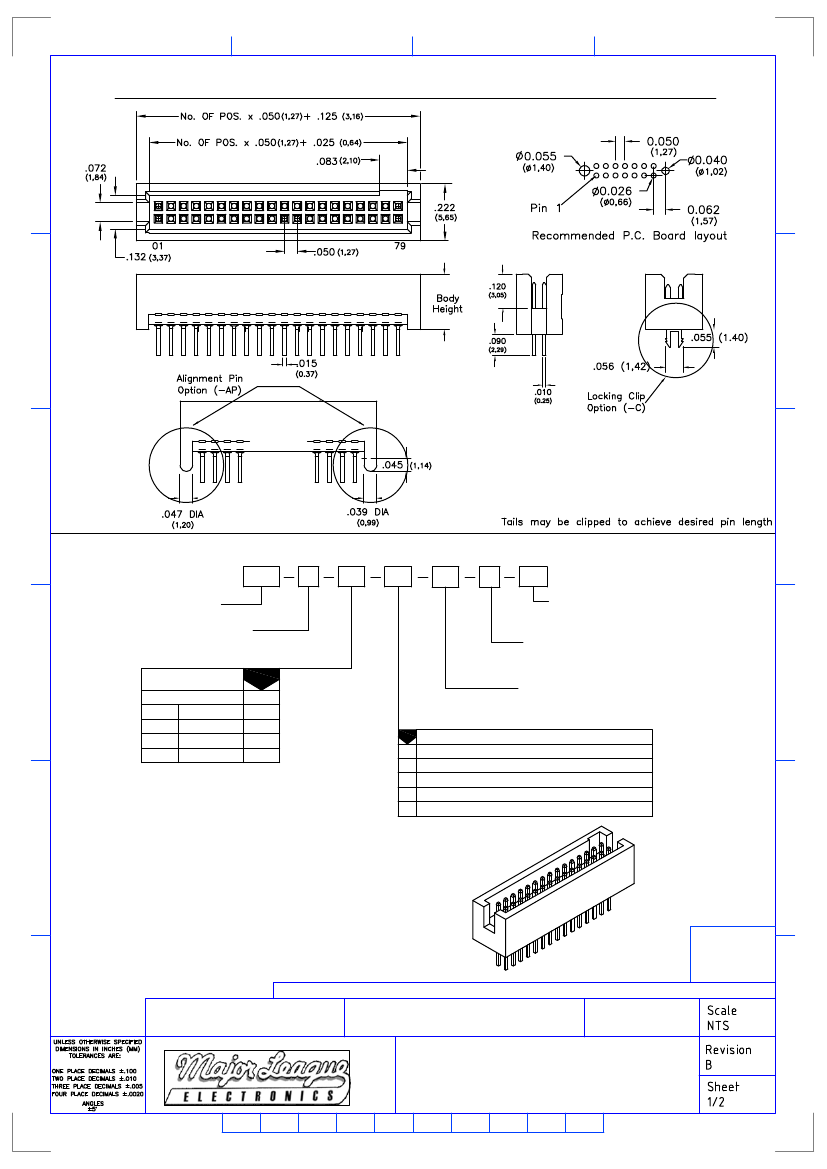

.050x.050 cl Dual Row - Thru Hole Polarized Terminal Strip
File Size82KB,2 Pages
ManufacturerMajor League Electronics
Websitehttp://www.mlelectronics.com/
Download Datasheet View All

PTSHS-5-D Overview

.050x.050 cl Dual Row - Thru Hole Polarized Terminal Strip

Major League Electronics .050x.050 cl Polarized Terminal Strip - Thru Hole
Ordering Information
PTSHS-5
XX
05 - 40
D
XX
XX
XX
X
LF
Lead Free
Locking Clip "C" Option
Leave blank if not needed
C = With
Pins Per Row
Row Specification
D = Dual Row
Pin Options
Body Height
5.70mm
.224
7.30mm
.287
9.00mm
.354
10.90mm
.429
02
06
10
14
Alignment Pin "AP" Option
Leave blank if not needed
AP = With
Plating Options
G
T
GT
H
F
10µ Gold on Contact Area / Flash on Tail
Matte Tin All Over
10µ Gold on Contact Area / Matte Tin on Tail
30µ Gold on Contact Area / Matte Tin on Tail
Gold Flash over Entire Pin
Specifications
Current Rating: 1.0 Ampere
Insulation Resistance: 1000MΩ Min.
Dielectric Withstanding: 300V AC
Contact Resistance: 20 mΩ Max.
Operating Temperature: -40°C to + 105°C
Max. Process Temperature:
Peak: 260°C up to 10 secs.
Process: 230°C up to 60 secs.
Wave: 260°C up to 6 secs.
Manual Solder: 350°C up to 5 secs.
Materials
Contact Material: Phosphor Bronze
Insulator Material: Nylon 6T
Plating: Au or Sn over 50µ" (1.27) Ni
Mates with:
PSSHS,
PSSHSM
Products cut to specific sizes are uncancellable/nonreturnable
Parts are subject to change without notice
PTSHS-5-D SERIES
.050x.050 cl Dual Row - Thru Hole
Polarized Terminal Strip
12 FEB 07
4235 Earnings Way, New Albany, Indiana, 47150, USA
1-800-782-3486 (USA/Canada/Mexico)
Tel: 812-944-7244
Fax: 812-944-7268
E-mail: mle@mlelectronics.com
Web: www.mlelectronics.com
