IS8255A-96 datasheet, PDF - EEWORLD Datasheet

IS8255A-96: DescriptionIC,TIMER,CMOS,LDCC,28PIN,PLASTIC; CategoryAnalog mixed-signal IC The signal circuit; File Size1MB，19 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

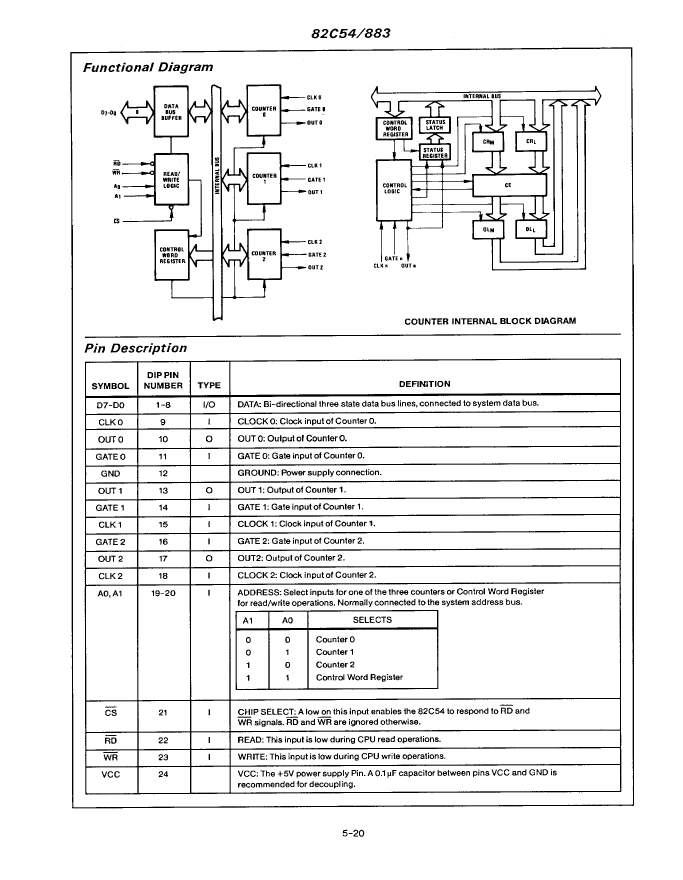

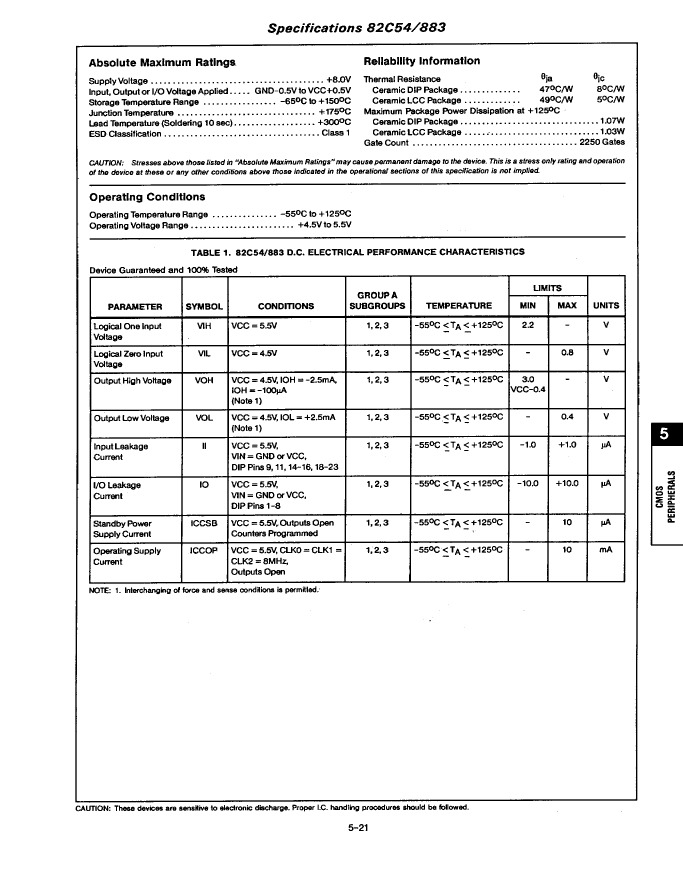

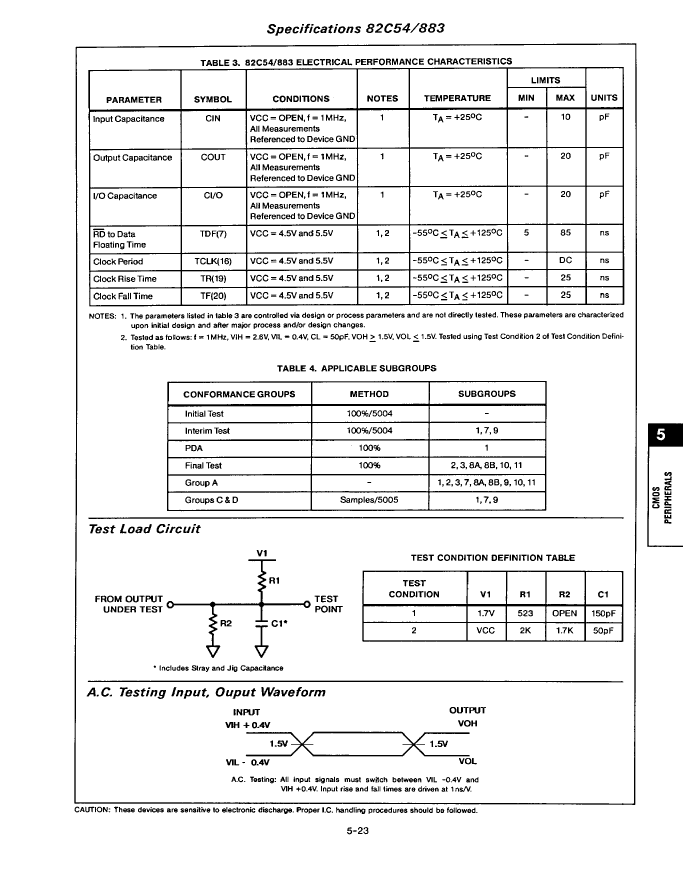

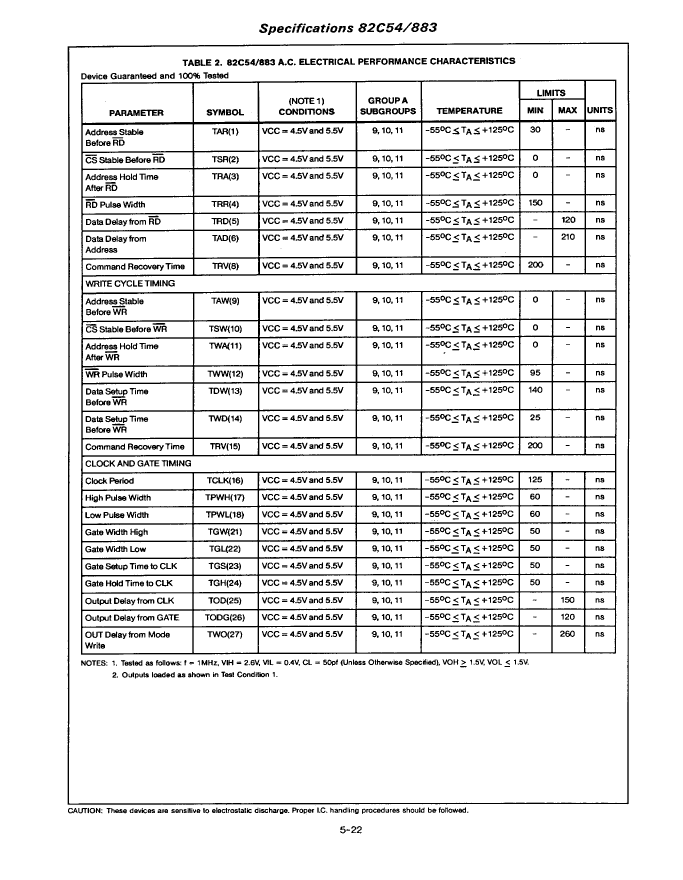

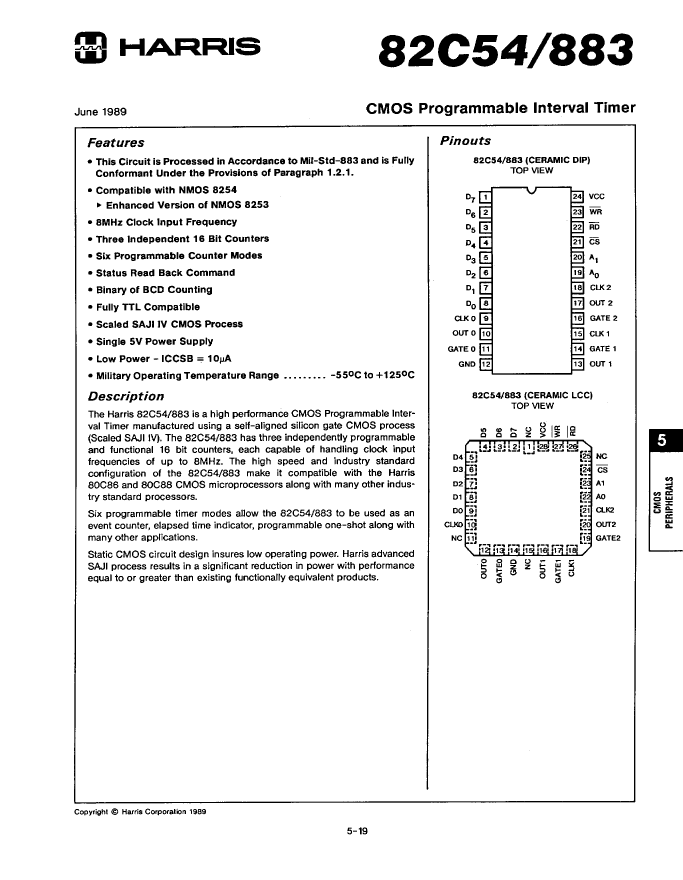

IS8255A-96 Overview

IC,TIMER,CMOS,LDCC,28PIN,PLASTIC

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	QCCJ, LDCC28,.5SQ
Reach Compliance Code	compliant
JESD-30 code	S-PQCC-J28
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD

	IS8255A-96	IS8255A-5
Description	IC,TIMER,CMOS,LDCC,28PIN,PLASTIC	IC,TIMER,CMOS,LDCC,28PIN,PLASTIC
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	QCCJ, LDCC28,.5SQ	QCCJ, LDCC28,.5SQ
Reach Compliance Code	compliant	compliant
JESD-30 code	S-PQCC-J28	S-PQCC-J28
Number of terminals	28	28
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ	LDCC28,.5SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
