SMA Male to SMA Male Precision Cable
Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
SMA Male to SMA Male Precision Cable Using 150 Series Coax, RoHS
Configuration
Connector 1
Connector 2
Cable Type
SMA Male
SMA Male
150 Series
PE34286
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Maximum Operating Voltage, Vrms
Typical Performance by Frequency
Frequency 1
Frequency, GHz
VSWR
Insertion Loss
Frequency 2
Frequency, GHz
VSWR
Insertion Loss
Frequency 3
Frequency, GHz
VSWR
Insertion Loss
Frequency 4
Frequency, GHz
VSWR
Insertion Loss
Frequency 5
Frequency, GHz
VSWR
Insertion Loss
2
1.05:1
0.17 dB/ft [ 0.56 dB/m ]
DC to 26.5
50
1.4:1
69.5
90
1,900
6
1.13:1
0.3 dB/ft [ 0.98 dB/m ]
10
1.11:1
0.4 dB/ft [ 1.31 dB/m ]
14
1.12:1
0.55 dB/ft [ 1.8 dB/m ]
16
1.19:1
0.6 dB/ft [ 1.97 dB/m ]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Male Precision Cable Using 150 Series Coax, RoHS PE34286
PE34286 REV
1
SMA Male to SMA Male Precision Cable
Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
Frequency 6
Frequency, GHz
VSWR
Insertion Loss
Frequency 7
Frequency, GHz
VSWR
Insertion Loss
Frequency 8
Frequency, GHz
VSWR
Insertion Loss
Electrical Specification Notes:
18
1.18:1
0.68 dB/ft [ 2.23 dB/m ]
PE34286
24
1.22:1
0.85 dB/ft [ 2.79 dB/m ]
26.5
1.24:1
0.9 dB/ft [ 2.95 dB/m ]
Short lengths up to 24” long may exhibit VSWR
measurements up to 9% higher.
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
.
150 Series
-50 to +205
1 [25.4]
One Time Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Solid
Copper Clad Steel, Silver
1
PTFE
FEP
0.15 [3.81]
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
SMA Male
Straight
Copper Clad Steel, Silver
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
PTFE
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Male Precision Cable Using 150 Series Coax, RoHS PE34286
PE34286 REV
2
SMA Male to SMA Male Precision Cable
Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
Connector 2
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
SMA Male
Straight
Copper Clad Steel, Silver
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
PTFE
PE34286
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
SMA Male to SMA Male Precision Cable Using 150 Series Coax, RoHS from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Male Precision Cable Using 150 Series Coax, RoHS PE34286
URL:
http://www.pasternack.com/sma-male-sma-male-150-series-cable-assembly-pe34286-p.aspx
PE34286 REV
3
© 2013 Pasternack Enterprises All Rights Reserved
SMA
MALE
SMA
MALE
PE34286

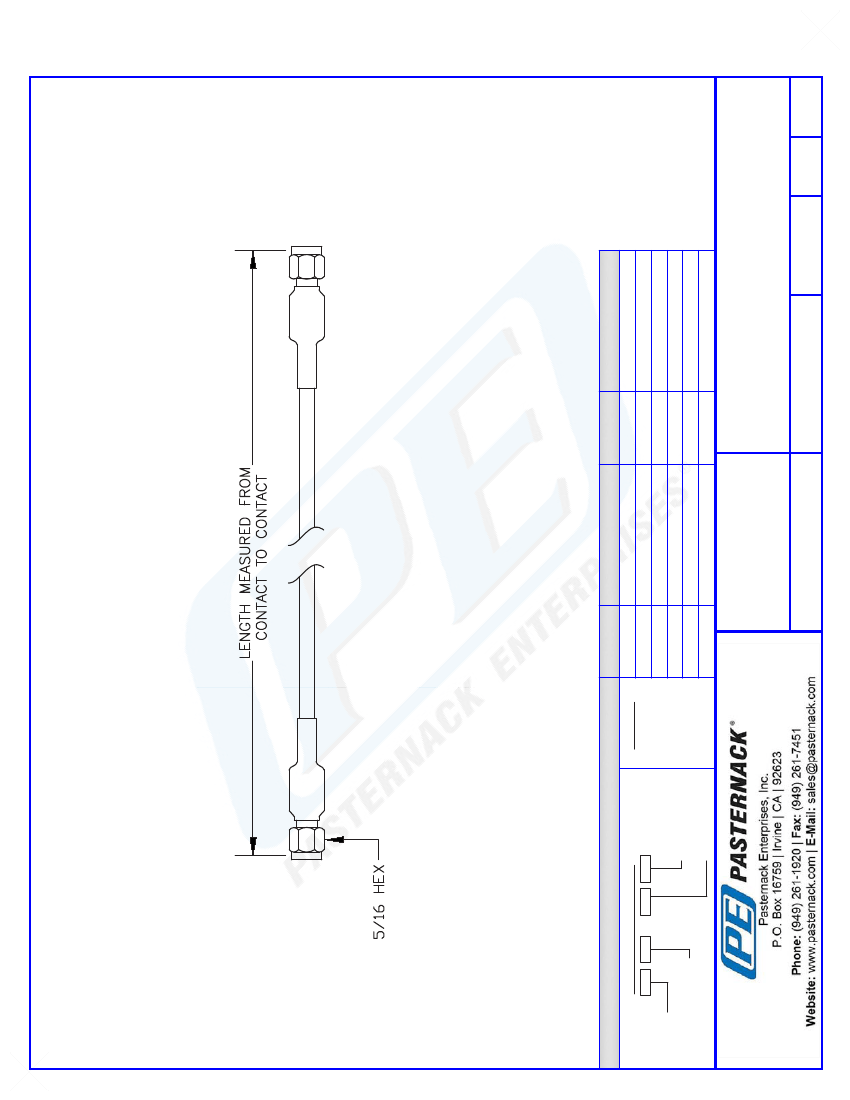

CAD Drawing
SMA Male to SMA Male Precision Cable Using 150 Series Coax, RoHS
PE34286 REV
Examples
PE3000LF-100
PE3000-100
How To Order
Part Number Configuration
PE3
zzz
yy
-
xx
uu
00 - 99999
LF = RoHS Compliant
< Blank > = Standard
Note: LF applies only to RF cables
CM = Centimeters PE3000LF-100CM
< Blank > = Inches
PE3000-100CM
Length
Part # Ext.
-12
-24
-36
-48
-60
-xx
Length In Inches
12''
24"
36"
48"
60"
Custom Length
DWG TITLE
Part # Ext.
-25CM
-50CM
-75CM
-100CM
-125CM
-xxCM
Length In Centimeters
25Cm
50Cm
75Cm
100Cm
125Cm
Custom Length
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. LENGTH TOLERANCE IS ± 1.5% OR 3/8", WHICHEVER IS GREATER.
PE34286
FSCM NO. 53919
CAD FILE
030308
SCALE N/A
SIZE A
2233
4
