M22-078050K0946 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M22-078050K0946

M22-078050K0946: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size3MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M22-078050K0946 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

M22-078050K0946 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

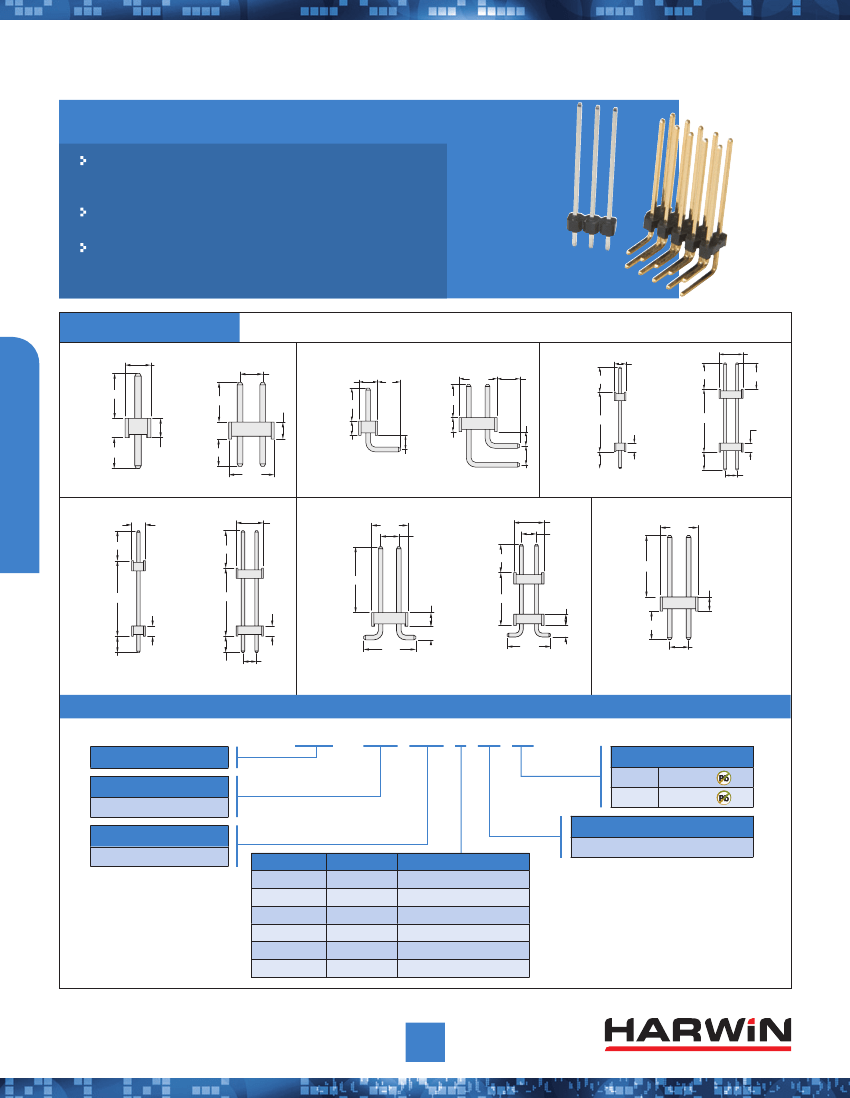

M22 Connectors

Pin Header Variants

If you are unable to specify the connector you require from our

standard range of M22 connectors (pages 129 – 133), use the

order code below to create an application-specific connector.

Contact

technical@harwin.com

for further information,

or search online for M22-XXX.

Suitable for use with female connectors and jumper sockets

shown on pages 125 to 128.

TERMINATION STyLES

Vertical PC Tail

2.00

Horizontal PC Tail

2.00

1.50

Extended PC Tail

4.00

2.00

4.00

4.40

2.00

2mm (.079") PITCH

V Series

1.50

W Series

4.00

H Series

1.50

J Series

1.50

E Series

F Series

1.50

3.00

1.50

3.00

2.00

Pin section is 0.50mm square.

PCB mounting hole is Ø0.80mm.

4.00

2.00

6.50

Pin section is 0.50mm square.

PCB mounting hole is Ø0.80mm.

Pin section is 0.50mm square. PCB mounting

hole is Ø0.80mm. max. B dimension is 6.00mm.

2.00

Extended PC Tail (2.4mm tail)

2.00

4.00

Vertical/Extended SMT

4.00

2.00

example: M22-065030W0546

4.00

K Series

1.50

L Series

1.50

S Series

T Series

1.50

3.00

2.40

5.75

2.40

2.00

1.25

5.75

0.70

2.00

Pin section is 0.50mm square.

PCB mounting hole is Ø0.80mm.

B dimension is 000.

Pin section is 0.50mm square.

PCB pad layout see page 132.

Pin section is 0.50mm square.

PCB pad layout see page 132.

2mm Pitch vertical double row pin header

with 5 pins per row. A dimension is 6.5mm

and B dimension is 3.0mm, in tin finish.

HOW TO ORDER

M22 - XXX XXX X XX XX

series CoDe

DiMension a

Example: 7.8mm = 078

Finish

Gold

Tin

DiMension B

Example: 5.0mm = 050

sinGle roW

–

All dimensions in mm.

no. oF ContaCts Per roW

02 to 50

DouBle roW

Vertical

Horizontal

Extended

Extended (2.4mm tail)

Surface Mount

Extended Surface Mount

www.harwin.com

134
