B39458-M1865-D100 datasheet, PDF

B39458-M1865-D100: DescriptionSAW-Video/Sound Filter, 1 Function(s), 44.06MHz, 5 Pin(s), Plastic, DUROPLAST, SIP-5; CategoryAnalog mixed-signal IC filter; File Size73KB，6 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B39458-M1865-D100 Overview

SAW-Video/Sound Filter, 1 Function(s), 44.06MHz, 5 Pin(s), Plastic, DUROPLAST, SIP-5

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Reach Compliance Code	compliant
Maximum attenuation frequency (+/- delta f)	1750 kHz
Attenuation at maximum frequency	5.3 dB
Center frequency or cutoff frequency (fo/fc)	44.06 MHz
filter type	SAW-VIDEO/SOUND FILTER
high	4.8 mm
input resistance	1100 OHM//14.7 pF
Maximum insertion loss	14.6 dB
JESD-609 code	e2
length	13.7 mm
Manufacturer's serial number	M1865D
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Number of terminals	5
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
Output impedance	1400 OHM//3.1 pF Ω
Packaging Materials	PLASTIC
physical size	L13.7XB2.15XH4.8 (mm)
Terminal surface	Tin/Silver (Sn/Ag)
width	2.15 mm

SAW Components

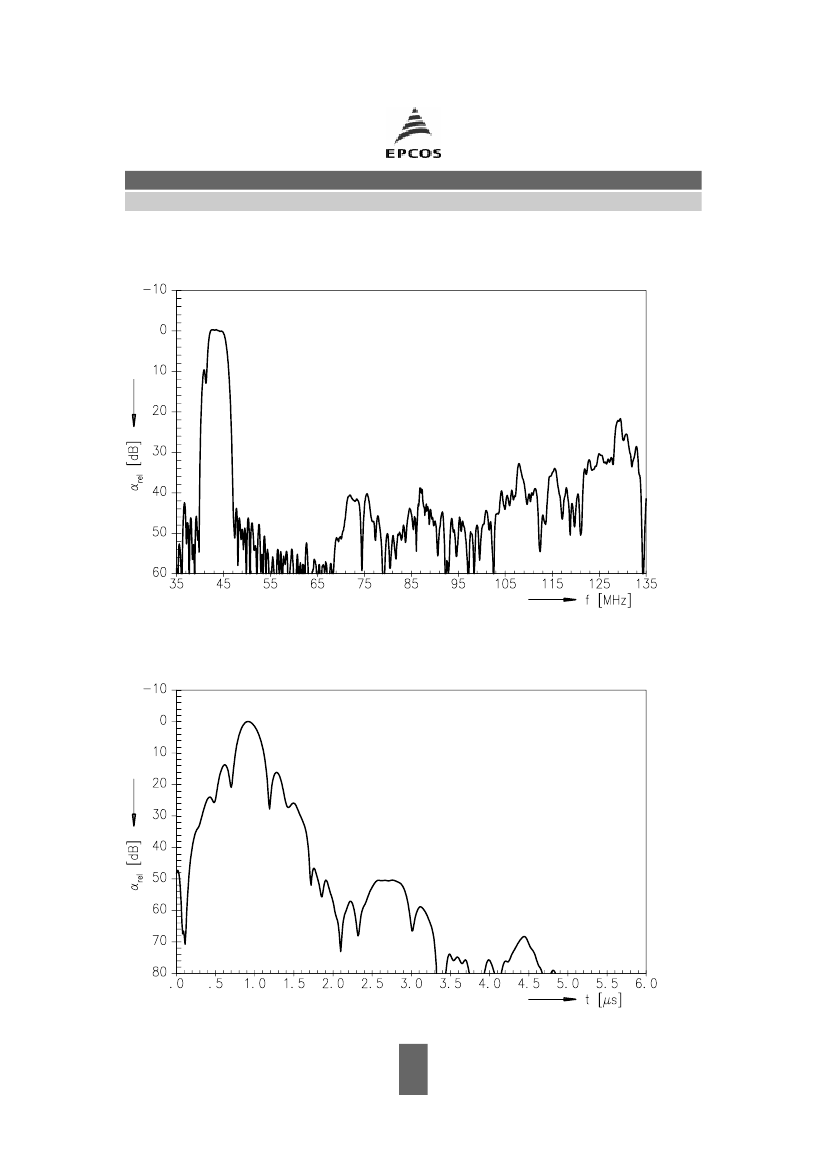

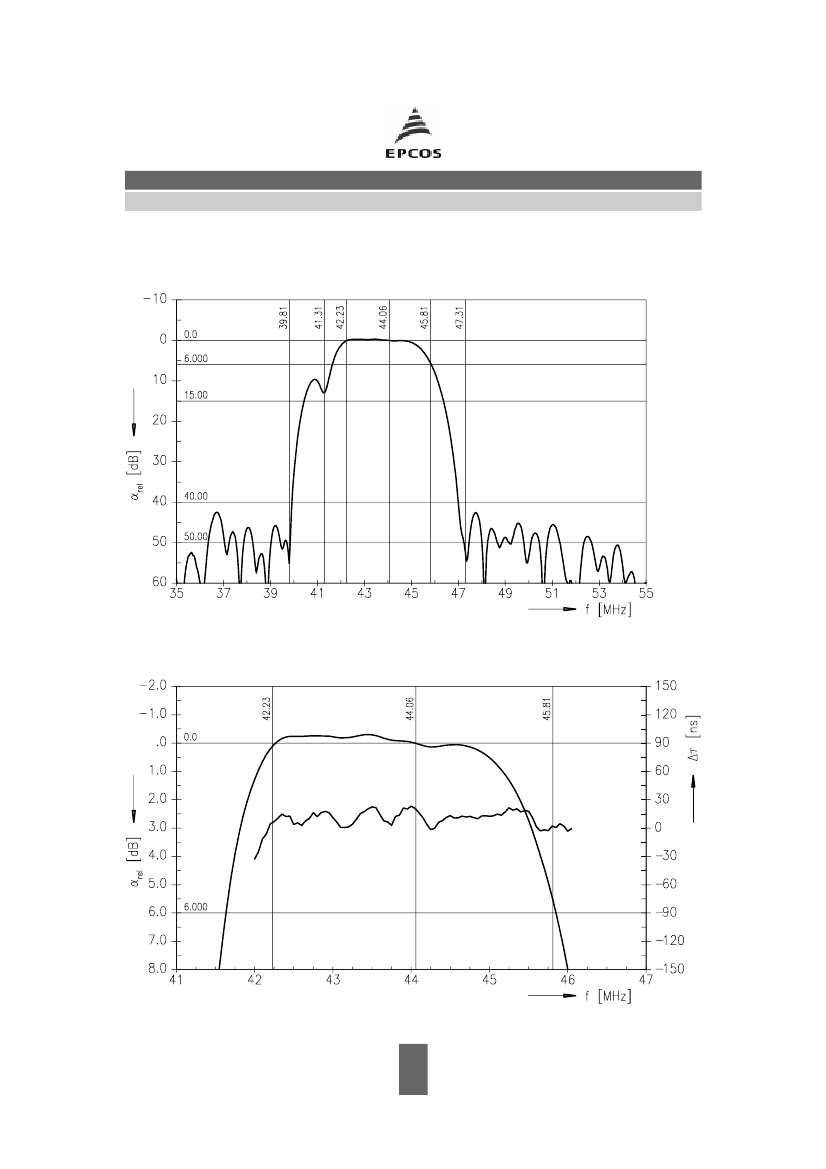

Data Sheet M 1865 D
