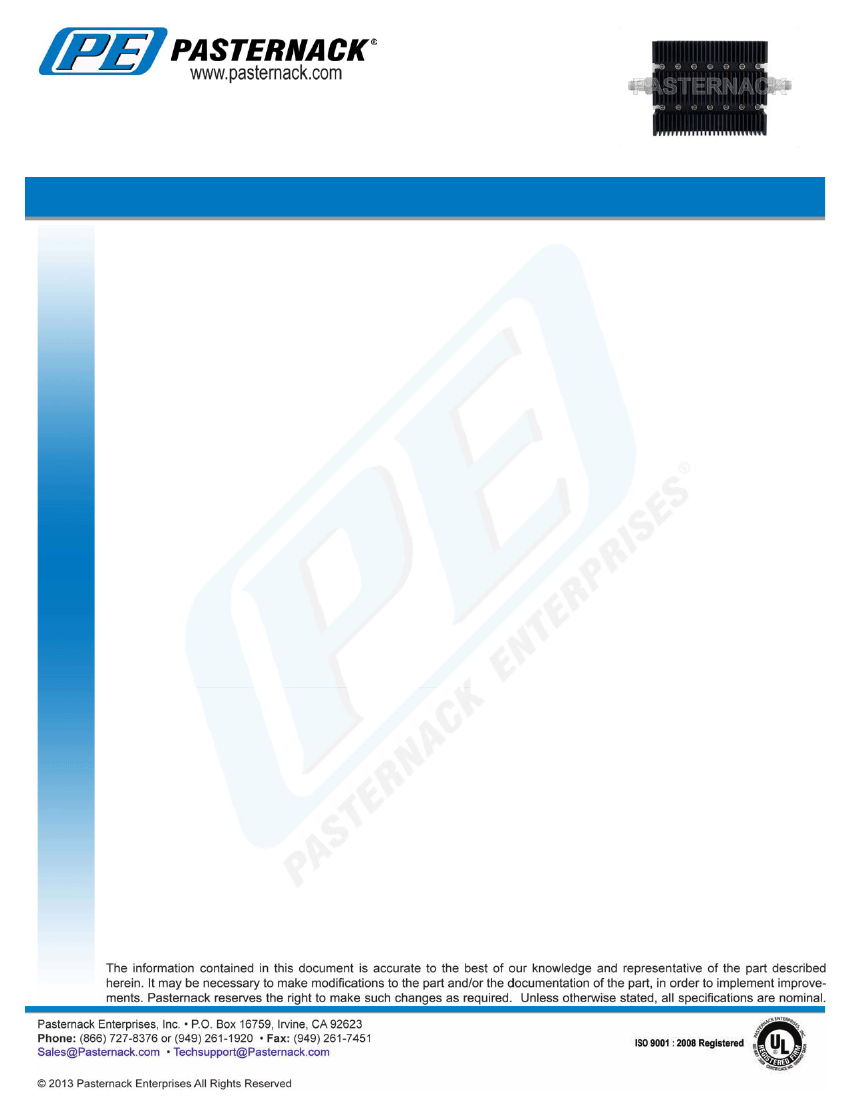

30 dB Fixed Attenuator, TNC Female To TNC Female
Directional Rated To 100 Watts Up To 6 GHz
TECHNICAL DATA SHEET
PE7242-30
30 dB Fixed Attenuator, TNC Female To TNC Female Directional Rated To 100 Watts Up To 6 GHz
Pasternack Enterprises line of 100W Attenuators operate from DC to 6 GHz, and are available in 42 different 7/16 DIN,
N, SMA and TNC in-series and between-series connector combinations. Our 100W Attenuators are manufactured with
Passivated Stainless Steel SMA, TNC and N connectors, and Silver Plated Brass 7/16 DIN connectors. Pasternack
100W Attenuators come in 3 dB, 6 dB, 10 dB, 20 dB, 30 dB, 40 dB, 60 dB values and will operate from -55 to +125
degrees C. Additional connector combinations are available beyond the 42 standard designs, upon request.
•
100W average power and 2,000W peak power handling capability
•
Operate to 6 GHz
•
Temperature range of -55 to +125 degrees C
•
42 in-series and between series combinations
•
7/16 DIN, SMA, N, TNC Male and Female connectors are available
•
Other connector combinations available upon request
Configuration
Design
Connector 1
Connector 2
Body Material and Plating
Fixed, Directional Attenuator
TNC Female
TNC Female
Aluminum Heatsink, Black Anodized
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Attenuation Value, dB
Maximum Input Power, Watts
Maximum VSWR
Frequency 1
Range, GHz
VSWR
Attenuation Accuracy, dB
Frequency 2
Range, GHz
VSWR
Attenuation Accuracy, dB
Frequency 3
Range, GHz
DC to 6
50
30
100
1.45:1
DC to 2
1.35:1
± 1.25
2 to 4
1.45:1
± 1.5
4 to 6
Mechanical Specifications
Temperature
Operating Range, deg C
-55 to +125
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
30 dB Fixed Attenuator, TNC Female To TNC Female Directional Rated To 100 Watts Up To
6 GHz PE7242-30
PE7242-30 REV NC
1
30 dB Fixed Attenuator, TNC Female To TNC Female
Directional Rated To 100 Watts Up To 6 GHz
TECHNICAL DATA SHEET
Size
Length, in [mm]
Width, in [mm]
Height, in [mm]
.
PE7242-30
4.9 [124.46]
3.8 [96.52]
2.7 [68.58]
3 [1.36]
Weight, lbs [Kg]
Connector 1
Type
Contact Material and Plating
Body Material and Plating
TNC Female
Beryllium Copper, Gold
Stainless Steel, Passivated
Connector 2
Type
Contact Material and Plating
Body Material and Plating
TNC Female
Beryllium Copper, Gold
Stainless Steel, Passivated
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/30db-fixed-tnc-female-tnc-female-100-watts-attenuator-pe7242-30-p.aspx
30 dB Fixed Attenuator, TNC Female To TNC Female Directional Rated To 100 Watts Up To 6 GHz from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
PE7242-30 REV NC
