SAW Components
Data Sheet B3696
SAW Components
Low-Loss Filter
Data Sheet
B3696
227,00 MHz
Ceramic package
QCC12
Features
q
q
q
q
Low-loss IF filter for basestation
Clean-up filter
Hermetically sealed ceramic SMD package
usable bandwidth 200 kHz
Terminals
q
Gold-plated
Dimensions in mm, appr. weight 0,4 g
Pin configuration
11
5
1
7
2, 6, 8, 12
3, 9
4, 10
Input
Output
Input ground
Output ground
Case ground
to be grounded
not connected
Type
B3696
Ordering code
B39231-B3696-Z510
Marking and Package
according to
C61157-A7-A55
Packing
according to
F61074-V8026-Z000
Electrostatic Sensitive Device
(ESD)
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
Source power
T
A
T
stg
V
DC
P
s
-45 / +85
-45 / +85
0
10
˚C
˚C
V
dBm
2
Dec 22, 2000
SAW Components
Low-Loss Filter
Data Sheet
B3696
227,00 MHz
Characteristics
Operating temperature:
Terminating source impedance:
Terminating load impedance:
T
= -45 ... +85 ˚C
Z
S
= 50
Ω
and matching network
Z
L
= 50
Ω
and matching network
min.
typ.
227,00
6,1
max.
—
8,0
MHz
dB
Nominal frequency
Minimum insertion attenuation
(including matching network)
Passband width
α
rel
≤
1 dB
α
rel
≤
3 dB
α
rel
≤
20 dB
Amplitude ripple
(p-p)
f
N
α
min
—
—
B
1dB
B
3dB
B
20dB
∆α
0,2
—
—
0,46
0,79
1,68
—
—
—
MHz
MHz
MHz
f
N
±
100 kHz
Group delay ripple
(p-p)
∆τ
—
0,5
1,0
dB
f
N
±
100 kHz
Relative attenuation
(relative to
α
min
)
f
N
−
20,0 MHz ... f
N
−
6,0
f
N
−
6,0 MHz ... f
N
−
1,2
f
N
−
1,2 MHz ... f
N
−
0,6
f
N
+
0,6 MHz ... f
N
+
1,2
f
N
+
1,2 MHz ... f
N
+
6,0
f
N
+
6,0 MHz ... f
N
+
10,0
f
N
+
10,0 MHz ... f
N
+
20,0
α
rel
MHz
MHz
MHz
MHz
MHz
MHz
MHz
—
150
300
ns
40
20
3
3
20
40
37
55
40
9
7
40
53
42
– 0.036
30
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
ppm/K
2
˚C
Temperature coefficient of frequency
1)
Turnover temperature
1)
Temperature
TC
f
T
0
—
—
dependance of
f
c
:
f
c
(T
A
) =
f
c
(T
0
)(1 +
TC
f
(T
A
–
T
0
)
2
)
3
Dec 22, 2000
SAW Components
Low-Loss Filter
Data Sheet
Matching network to 50
Ω
(element values depend on pcb layout)
B3696
227,00 MHz
L
s1
= 68 nH
L
p2
= 68 nH
L
p3
= 68 nH
L
s4
= 56 nH
4
Dec 22, 2000
SAW Components
Low-Loss Filter
Data Sheet

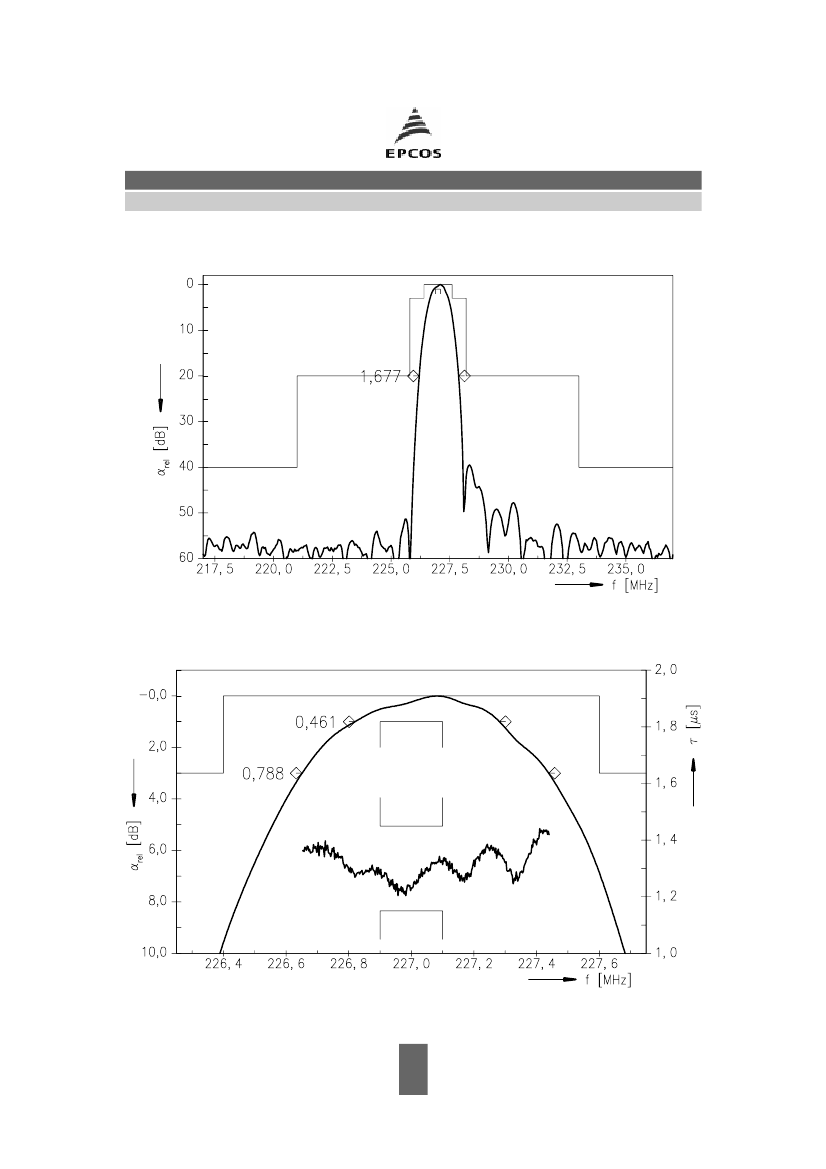

Transfer function
B3696
227,00 MHz
Transfer function (pass band)
5
Dec 22, 2000
