PE7324-50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> PE7324-50

PE7324-50: Description50 dB Fixed Attenuator, SMA Male To N Female Directional Black Anodized Aluminum Heatsink Body Rated To 50 Watts Up To 18 GHz; CategoryThe connector; File Size347KB，3 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet View All

PE7324-50 Overview

50 dB Fixed Attenuator, SMA Male To N Female Directional Black Anodized Aluminum Heatsink Body Rated To 50 Watts Up To 18 GHz

Preview

Download Datasheet

View All

50 dB Fixed Attenuator, SMA Male To N Female

Directional Rated To 50 Watts Up To 18 GHz

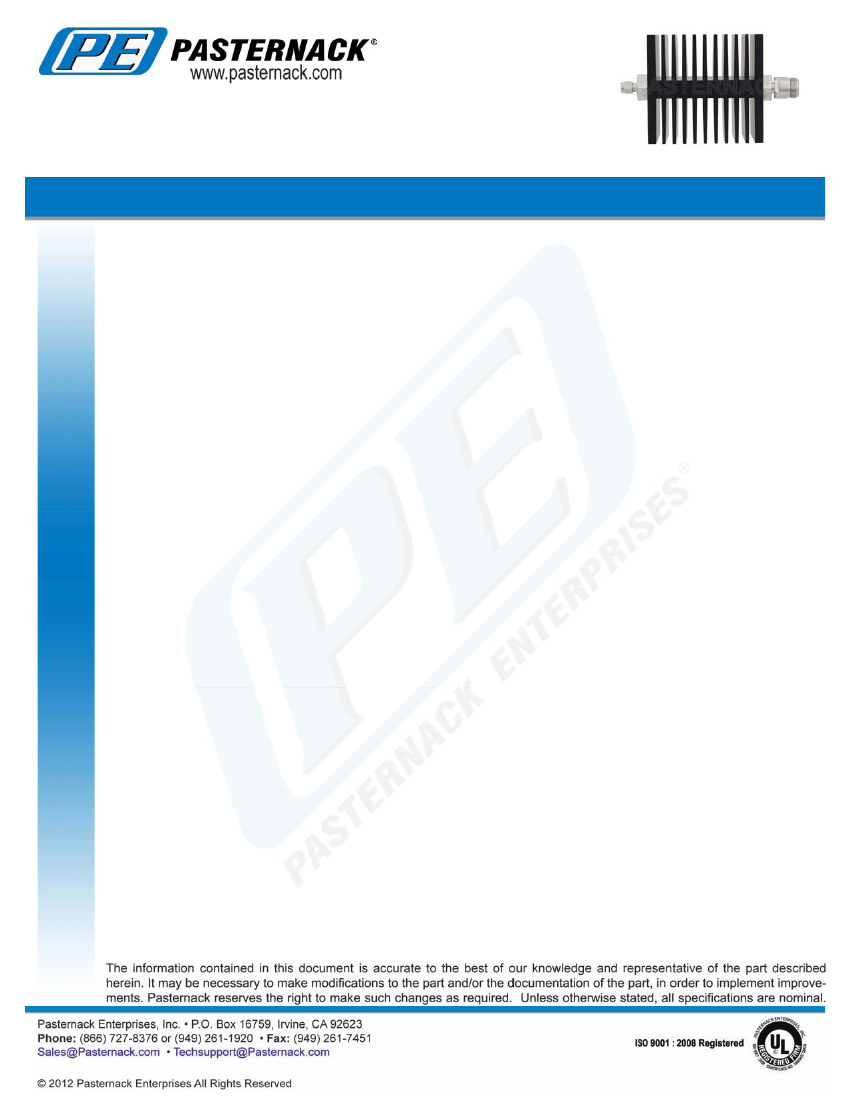

TECHNICAL DATA SHEET

Configuration

Design

Connector 1

Connector 2

Body Material and Plating

Fixed, Directional Attenuator

SMA Male

N Female

Aluminum Heatsink, Black Anodized

PE7324-50

50 dB Fixed Attenuator, SMA Male To N Female Directional Rated To 50 Watts Up To 18 GHz

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Attenuation Value, dB

Maximum Input Power, Watts

Maximum VSWR

Frequency 1

Range, GHz

VSWR

Attenuation Accuracy, dB

Frequency 2

Range, GHz

VSWR

Attenuation Accuracy, dB

Frequency 3

Range, GHz

VSWR

Attenuation Accuracy, dB

DC to 18

1.6:1

DC to 6

1.3:1

1.25

6 to 12.4

1.45:1

12.4 to 18

1.6:1

2.5

Mechanical Specifications

Temperature

Operating Range, deg C

Size

Length, in [mm]

Width, in [mm]

Height, in [mm]

-55 to +125

4.01 [101.85]

3 [76.2]

1.796 [814.65]

Weight, lbs [g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

50 dB Fixed Attenuator, SMA Male To N Female Directional Rated To 50 Watts Up To 18 GHz

PE7324-50

PE7324-50 REV NC
