Microwave Ceramics and Modules
3-Pole Filter for PCS RX
Preliminary datasheet
Product type
B69813N1967F460
Features
l
SMD filter consisting of coupled resonators with stepped impedances
l
(NdBa)TiO3 (εr = 88 /
TCf
=0±10 ppm/K) with a coating of copper (10µm) and tin (>5µm)
l
Excellent reflow solderability, no migration effect due to copper/tin metallization
Index
Page 2
l
Application
l
Features
l
Component drawing
l
Recommended footprint
Page 3
l
Characteristics
l
Maximum ratings
l
Typical passband characteristic
Page 4
l
Processing information
l
Soldering requirements
l
Delivery mode
ISSUE DATE
13.11.98
ISSUE
P1
PUBLISHER
MWM PE F
PAGE
1/4
Microwave Ceramics and Modules
3-Pole Filter for PCS RX
Preliminary datasheet
Characteristics
min.
Center frequency
Insertion loss
Passband
Amplitude ripple (peak - peak)
Standing wave ratio
Impedance
Attenuation
at DC to 1800 MHz
at 1910 MHz
at 2010 MHz
Maximum ratings
IEC climatic category (IEC 68-1)
Operating temperature
Typical passband characteristic
- 40/+ 90/56
T
op - 20 / + 75
f
c -
α
IL
B
60
∆α
SWR
Z
α
35
10
9.0
typ.
1960
3.4
Product type
B69813N1967F460
max.
-
3.7
MHz
dB
MHz
1.2
1.6
50
40
11
9.5
1.5
2.2
dB
Ω
dB
dB
dB
°C
0
-5
-1 0
-1 5
-2 0
-2 5
-3 0
-3 5
-4 0
-4 5
frequency [ GHz]
DB[ S1 1 ]
DB[ S2 1 ]
S3P2512_2-DOC
ISSUE DATE
13.11.98
ISSUE
P1
PUBLISHER
MWM PE F
PAGE
3/4
Microwave Ceramics and Modules
3-Pole Filter for PCS RX
Preliminary datasheet
Processing information
l
Wettability to IEC 68-2-58:
≥
75% (after aging)
Soldering requirements
Soldering type
Maximum soldering temperature
(measuring point on top surface of the component)

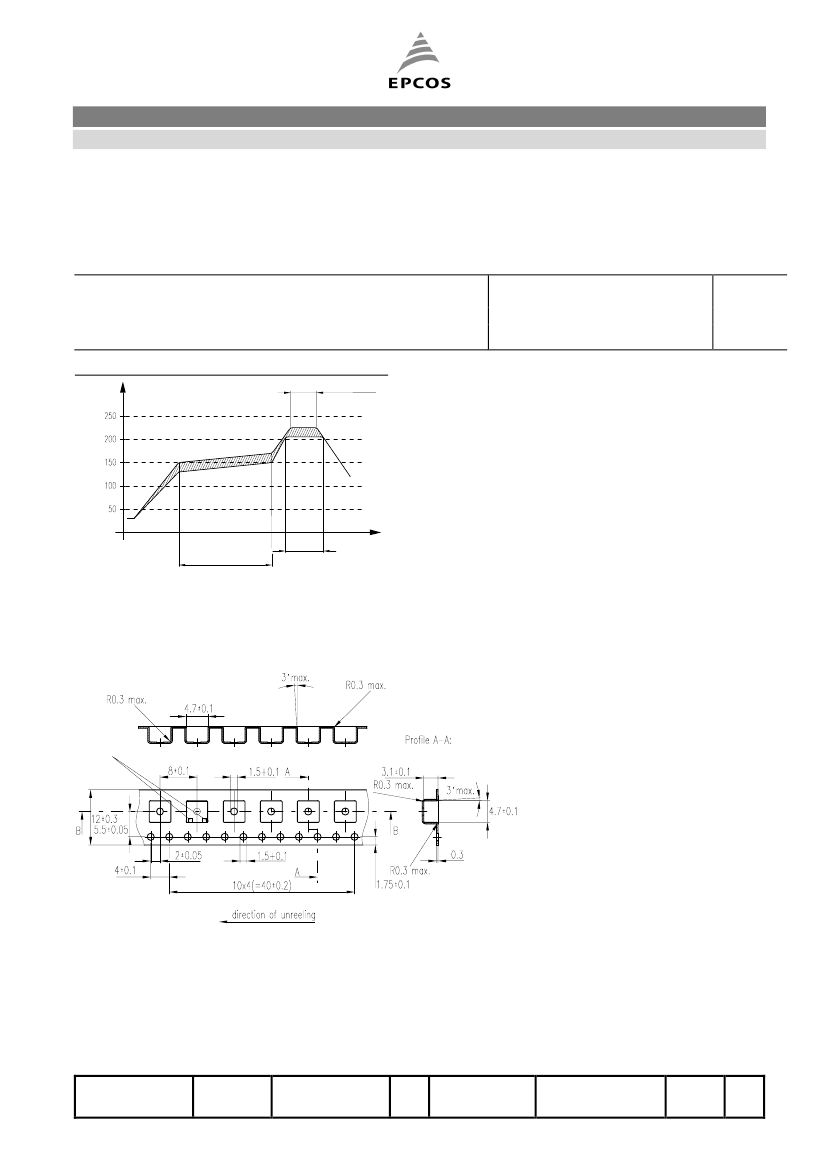

Recommended soldering conditions (infrared):
Temp. [°C]
within 10 sec.
Product type
B69813N1967F460
ZNr.: 600 (FILT95_2)
reflow
235 (max. 2 sec.)
225 (max. 10 sec.)
°C
°C
215°C±10°C
20-40 sec.
40-80 sec.
Time [sec.]
LOETPROF.DOC
Delivery mode
l
Blister tape to IEC 286-3, PS , grey
l
Pieces/tape: 3000
Reel: diameter - 330 mm
Profile B-B:
I/O
TAPS3P2.DOC
EPCOS AG 2001. All Rights Reserved. Reproduction, publication and dissemination of this data sheet, enclosures hereto
and the information contained therein without EPCOS' prior express consent is prohibited.
The information contained in this data sheet describes the type of component and shall not be considered as guaranteed
characteristics. Purchase orders are subject to the General Conditions for the Supply of Products and Services of the
Electrical and Electronics Industry recommended by the ZVEI (German Electrical and Electronic Manufacturers'
Association), unless otherwise agreed.
ISSUE DATE
13.11.98
ISSUE
P1
PUBLISHER
MWM PE F
PAGE
4/4
