10 dB Fixed Attenuator, N Male To N Female Brass
Nickel Body Rated To 1 Watt Up To 2 GHz
TECHNICAL DATA SHEET
PE7163-10
10 dB Fixed Attenuator, N Male To N Female Brass Nickel Body Rated To 1 Watt Up To 2 GHz
Configuration
Design
Connector 1
Connector 2
Body Material and Plating
Fixed, Bidirectional Attenuator
N Male
N Female
Brass, Nickel
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Attenuation Value, dB
Maximum Input Power, Watts
Maximum VSWR
Frequency 1
Range, GHz
Attenuation Accuracy, dB
DC to 2
50
10
1
1.25:1
DC to 2
± 0.5
Mechanical Specifications
Size
Length, in [mm]
Width, in [mm]
.
1.76 [44.7]
0.83 [21.08]
Connector 1
Type
Contact Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
N Male
Gold
Brass, Nickel
Brass, Nickel
Connector 2
Type
Contact Material and Plating
Outer Conductor Material and Plating
N Female
Gold
Brass, Nickel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
10 dB Fixed Attenuator, N Male To N Female Brass Nickel Body Rated To 1 Watt Up To 2 GHz
PE7163-10
PE7163-10 REV
1
10 dB Fixed Attenuator, N Male To N Female Brass
Nickel Body Rated To 1 Watt Up To 2 GHz
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE7163-10
10 dB Fixed Attenuator, N Male To N Female Brass Nickel Body Rated To 1 Watt Up To 2 GHz from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
10 dB Fixed Attenuator, N Male To N Female Brass Nickel Body Rated To 1 Watt Up To 2 GHz
PE7163-10
URL:
http://www.pasternack.com/10db-fixed-n-female-n-male-1-watt-attenuator-pe7163-10-p.aspx
PE7163-10 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
P/N
ATTEN.
FIGURE
PE7163-10

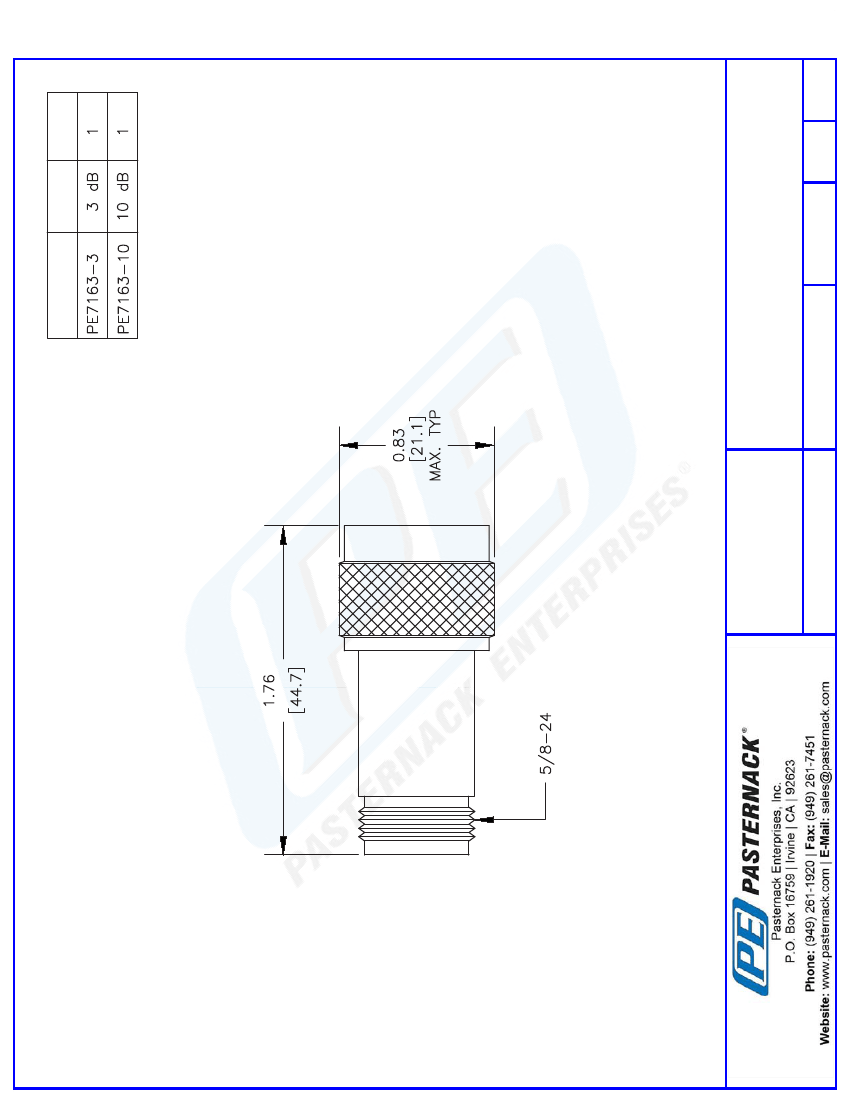

CAD Drawing
10 dB Fixed Attenuator, N Male To N Female Brass
Nickel Body Rated To 1 Watt Up To 2 GHz
PE7163-10 REV
FIGURE 1
DWG TITLE
PE7163
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
CAD FILE
032811
SCALE N/A
SIZE A
XXXX
3
