E13-353-3-FREQ-OUT9 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> E13-353-3-FREQ-OUT9

E13-353-3-FREQ-OUT9: DescriptionPECL 10K Output Clock Oscillator, 8MHz Min, 225MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4; CategoryPassive components oscillator; File Size74KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

E13-353-3-FREQ-OUT9 Overview

PECL 10K Output Clock Oscillator, 8MHz Min, 225MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4

E13-353-3-FREQ-OUT9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Connor-Winfield
Reach Compliance Code	unknown
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	E13-353
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	225 MHz
Minimum operating frequency	8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	PECL 10K
Output load	50 OHM
physical size	20.27mm x 12.62mm x 6.6mm
longest rise time	2 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	40/60 %

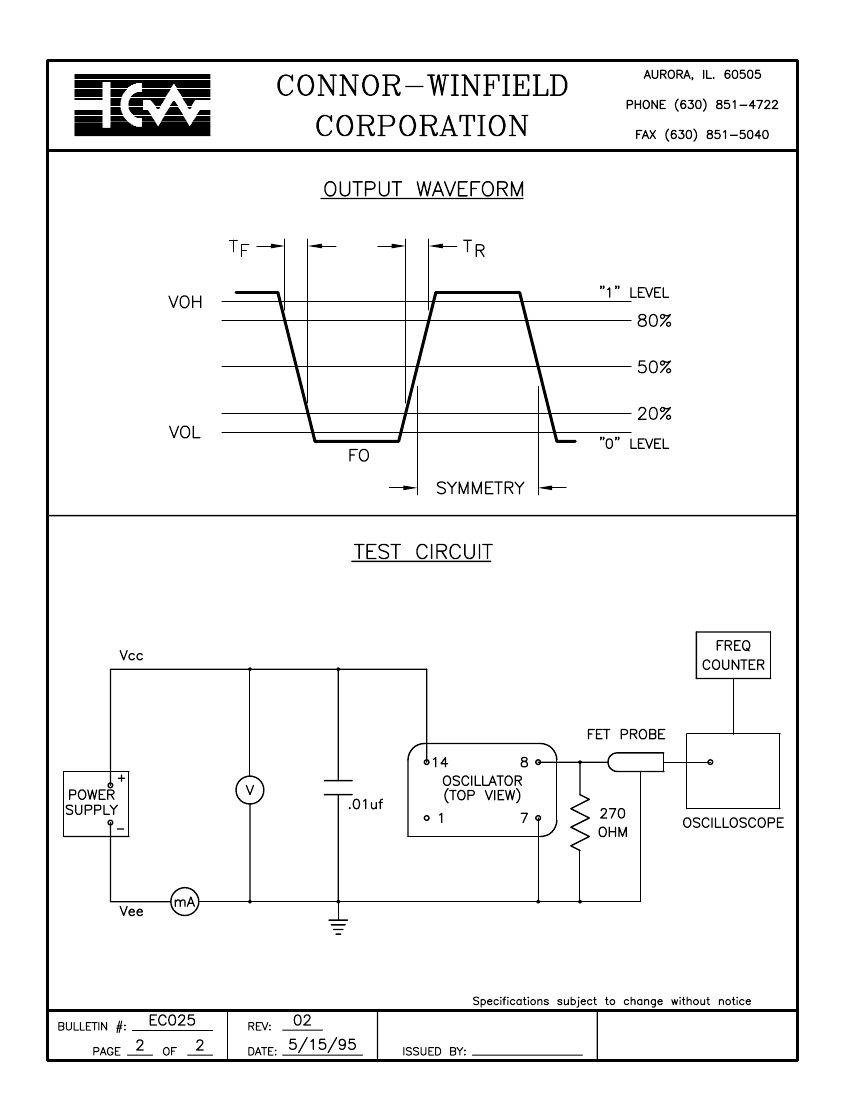

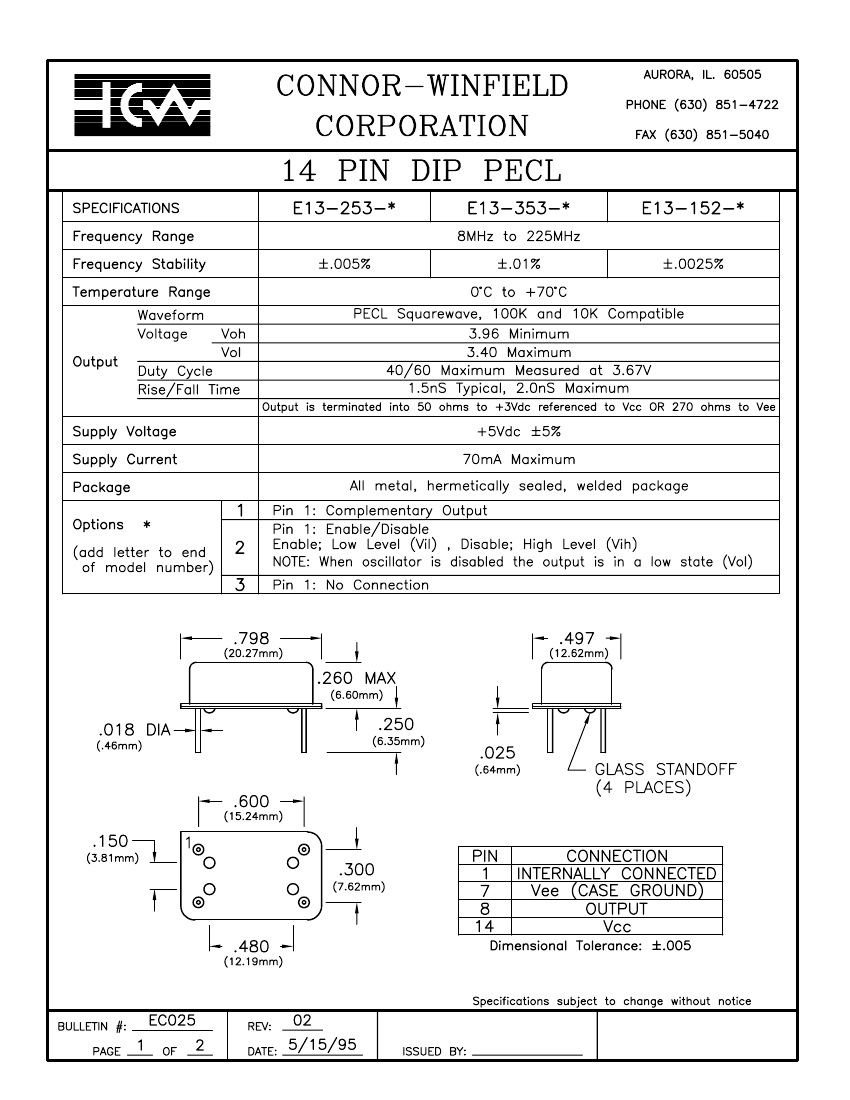

Preview

Download Datasheet

View All

E13-353-3-FREQ-OUT9 Related Products

	E13-353-3-FREQ-OUT9	E13-253-1-FREQ-OUT9	E13-253-2-FREQ-OUT9	E13-253-3-FREQ-OUT9	E13-353-2-FREQ-OUT9	E13-152-3-FREQ-OUT9	E13-353-1-FREQ-OUT9	E13-152-1-FREQ-OUT9
Description	PECL 10K Output Clock Oscillator, 8MHz Min, 225MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 8MHz Min, 225MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 8MHz Min, 225MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 8MHz Min, 225MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 8MHz Min, 225MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 8MHz Min, 225MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 8MHz Min, 225MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 8MHz Min, 225MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Connor-Winfield	Connor-Winfield	Connor-Winfield	Connor-Winfield	Connor-Winfield	Connor-Winfield	Connor-Winfield	Connor-Winfield
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
maximum descent time	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	100%	50%	50%	50%	100%	25%	100%	25%
Manufacturer's serial number	E13-353	E13-253	E13-253	E13-253	E13-353	E13-152	E13-353	E13-152
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating frequency	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz	225 MHz
Minimum operating frequency	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Oscillator type	PECL 10K	PECL 10K	PECL 10K	PECL 10K	PECL 10K	PECL 10K	PECL 10K	PECL 10K
Output load	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM
physical size	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm
longest rise time	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns	2 ns
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
maximum symmetry	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %
