6 dB Fixed Attenuator, 2.4mm Male To 2.4mm Female Stainless
Steel Body Rated To 1 Watt Up To 50 GHz
PE7089-6
50 GHz 2.4mm Attenuator
The Pasternack PE7089 attenuator series are designed with stainless steel 2.4mm connectors for excellent performance

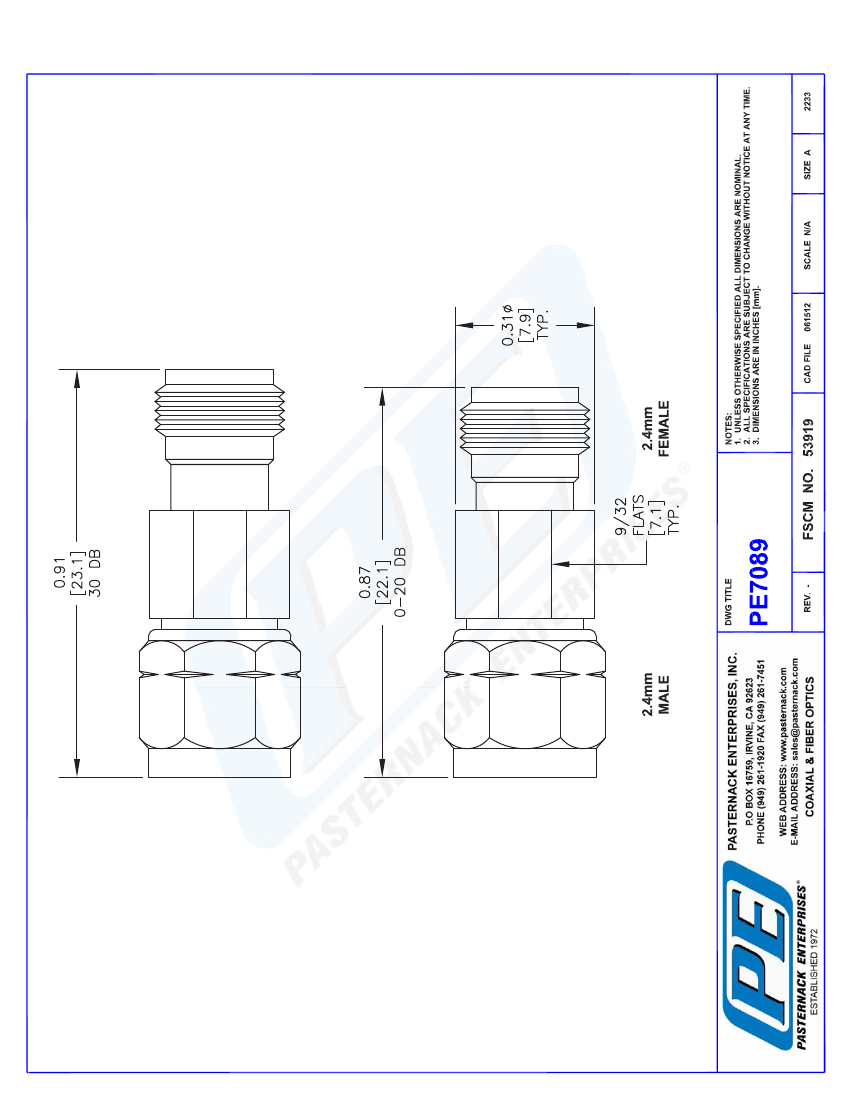

to 50 GHz and 1 Watt. This high frequency attenuator family has a stainless steel round body construction with 9/32 flats
for improved anti-torque installation and removal in a system. The high performance 50 GHz attenuator values are 3 dB,
6 dB, 10 dB, 15 dB, 20 dB and 30 dB for millimeter wave attenuator applications.
Connector 1
Connector 2
Frequency Range (GHz)
Body Material and Plating
Design
Frequency Range (GHz)
Impedance (Ohms)
Power, Max Input (Watt)
Standard Attenuation Values (dB)
VSWR Max Input
Frequency 1
Range (GHz)
Attenuation Accuracy (GHz)
VSWR
Frequency 2
Range (GHz)
Attenuation Accuracy (±dB)
VSWR
Frequency 3
Range (GHz)
Attenuation Accuracy (±dB)
VSWR
2.4mm Male
2.4mm Female
DC to 50
Stainless Steel, Passivated
Fixed
DC to 50
50
1
6
1.75:1
DC to 26.5
0.5
1.35:1
26.5 to 40
1
1.6:1
40 to 50
1.5
1.75:1
Configuration
Electrical Specifications
Click the following link for the additional product information:
6 dB Fixed Attenuator, 2.4mm Male To 2.4mm Female Stainless Steel Body Rated To 1 Watt Up To 50 GHz PE7089-6
Version C - Revision - © 2011 Pasternack Enterprises All Rights Reserved.
Pasternack Enterprises, Inc. • P.O. Box 16759, Irvine, CA 92623
Phone:
(866) 727-8376 or (949) 261-1920 •
Fax:
(949) 261-7451
Sales@Pasternack.com
•
Techsupport@Pasternack.com
1
6 dB Fixed Attenuator, 2.4mm Male To 2.4mm Female Stainless
Steel Body Rated To 1 Watt Up To 50 GHz
PE7089-6
Mechanical Specifications
Temperature Operating Range (deg C)
Body Material and Plating
Connector 1
Type
Gender
Body Material and Plating
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
Connector 2
Type
Gender
Body Material and Plating
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
-55 to +100
Stainless Steel, Passivated
2.4mm
Male
Stainless Steel, Passivated
BeCu, Gold
Stainless Steel, Passivated
Stainless Steel, Passivated
2.4mm
Female
Stainless Steel, Passivated
BeCu, Gold
Stainless Steel, Passivated
Stainless Steel, Passivated
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes, by exemption
Other Data
URL:
http://www.pasternack.com/6db-fixed-2.4mm-male-2.4mm-female-1-watt-attenuator-pe7089-6-p.aspx
6 dB Fixed Attenuator, 2.4mm Male To 2.4mm Female Stainless Steel Body Rated To 1 Watt Up To 50 GHz
from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
