PC200BSS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > PC200BSS

Preview

PC200BSS: Description.200cl Single Row Board Stacker Terminal Strip-Surface Mount; File Size82KB，2 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/

Download Datasheet View All

PC200BSS Overview

.200cl Single Row Board Stacker Terminal Strip-Surface Mount

Preview

Download Datasheet

View All

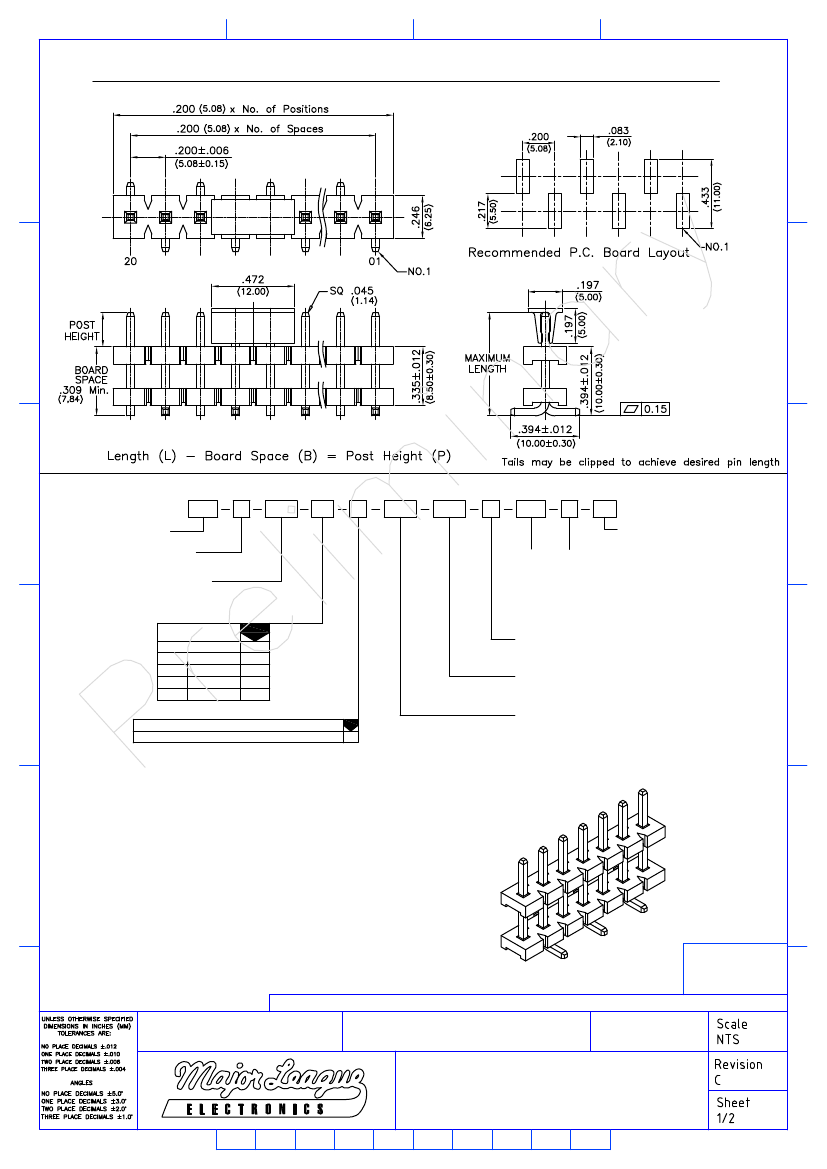

Major League Electronics .200 cl Board Stacker Terminal Strips - Surface Mount

Ordering Information

PC200BSS

02 - 20

XXX

Lead Free

Pins Per Row

Row Specification

S = Single Row

Desired Post Height

Please specify

e.g. .200 (5.08) = 200

Packing Information

TR-P = Tape and Reel with Plastic Pick and Place pad

TB-P = Tube with Plastic Pick and Place pad

TB-0 = Tube without Pick and Place Pad

If left blank, packaging at MLE's discretion

Pad may be metal, mylar or plastic

Footprint Option

S = Pin 1 left

Pin Options

Select nearest Pin Option

greater than the sum of

'Desired Post Height' +

'Desired Board Space'

Max. Pin Length

13.21mm

.520

15.60mm

.614

19.00mm

.748

1.088 27.63mm

Leave blank if not needed

If required, specify empty pin position, e.g. 012 for Pin 12

Polarized Position

Plating Options

Matte Tin all Over

Desired Board Space

Please specify

e.g. .400 (10.16) = 400

.309 (7.84) Minimum

Specifications

Current Rating: 7.9 Ampere

Insulation Resistance: 1000MΩ Min.

Dielectric Withstanding: 1500V AC/DC

Contact Resistance: 20 mΩ Max.

Operating Temperature: -40°C to + 105°C

Max. Process Temperature:

IR Reflow: 260°C up to 10 secs.

Wave: 250°C up to 10 secs.

Manual Solder: 380°C up to 10 secs.

Materials

Contact Material: Brass

Insulator Material: LCP, UL94V-0

Plating: Au or Sn over 50µ" (1,27) Ni

Mates With

PC200S-XX-S-02

PC200S-XX-S-04

Products cut to specific sizes are uncancellable/nonreturnable

Parts are subject to change without notice

PC200BSS SERIES

.200cl Single Row Board Stacker

Terminal Strip - Surface Mount

19 JUN 09

4235 Earnings Way, New Albany, Indiana, 47150, USA

1-800-782-3486 (USA/Canada/Mexico)

Tel: 812-944-7244

Fax: 812-944-7268

E-mail: mle@mlelectronics.com

Web: www.mlelectronics.com
