PC200H

Description
.200cl Single Row-Straight Thru Hole Terminal Strip-Header
File Size76KB,2 Pages
ManufacturerMajor League Electronics
Websitehttp://www.mlelectronics.com/
Download Datasheet View All

PC200H Overview

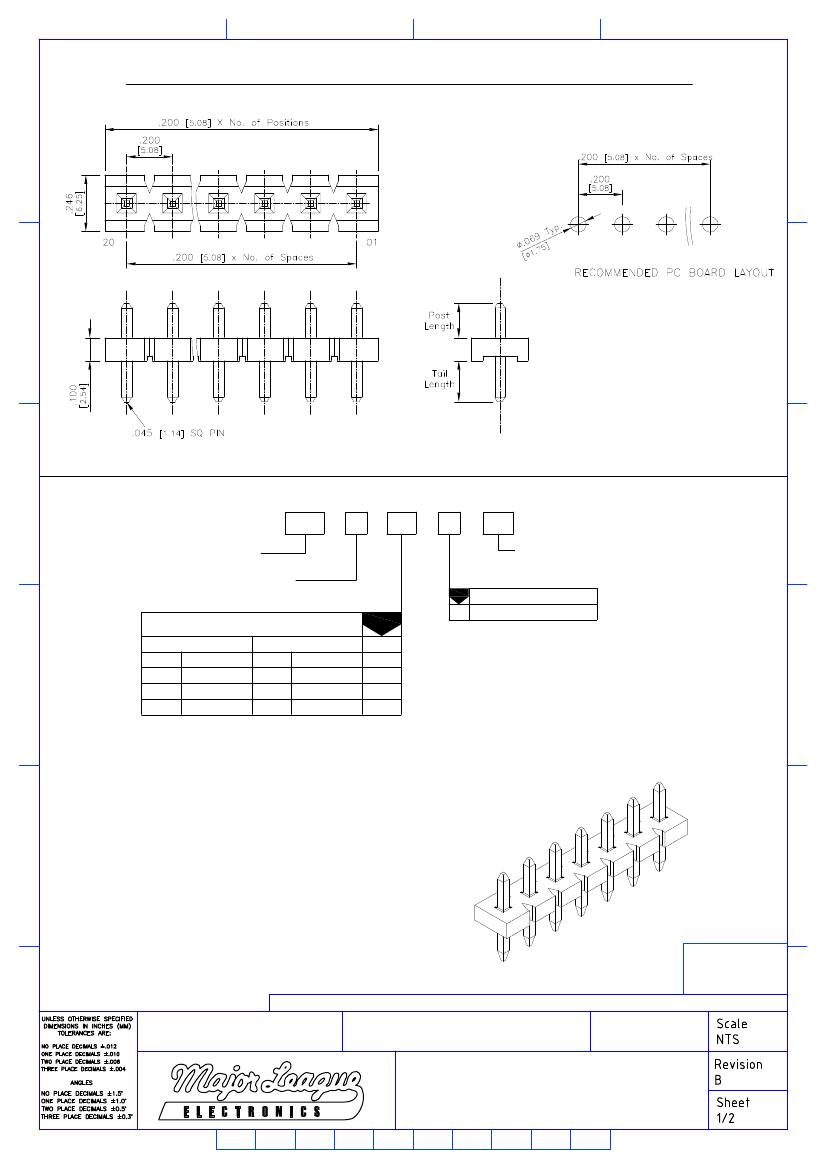

.200cl Single Row-Straight Thru Hole Terminal Strip-Header

Major League Electronics .200 cl Terminal Strip Header - Straight
Ordering Information
PC200H
XX
- S -
XX
- T - LF
02 - 20
Pins Per Row
Lead Free
Plating Options
T
Tail Length
4.57mm
.180
4.57mm
.180
4.57mm
.180
4.09mm
.161
Matte Tin All Over
Row Specification
S = Single Row
Pin Options
Post Length
3.81mm
.150
11.94mm
.470
13.21mm
.520
21.06mm
.829
01
02
04
14
Specifications
Current Rating: 7.9 Ampere
Insulation Resistance: 5000MΩ Min.
Dielectric Withstanding: 1500V AC/DC
Contact Resistance: 20 mΩ Max.
Operating Temperature: -55°C to + 125°C
Max. Process Temperature:
IR Reflow: 280°C up to 10 secs.
Wave: 250°C up to 10 secs.
Manual Solder: 380°C up to 5 secs.
Materials
Contact Material: Brass
Insulator Material: LCP, UL94V-0
Plating: 120µ" Matte Tin over 50µ" (1,27) Ni
Products cut to specific sizes are uncancellable/nonreturnable
Mates With
PC200S-XX-S-02
PC200S-XX-S-04
Parts are subject to change without notice
PC200H SERIES
.200cl Single Row - Straight
Thru Hole Terminal Strip Header
23 JUN 08
4235 Earnings Way, New Albany, Indiana, 47150, USA
1-800-782-3486 (USA/Canada/Mexico)
Tel: 812-944-7244
Fax: 812-944-7268
E-mail: mle@mlelectronics.com
Web: www.mlelectronics.com
