Major League Electronics .200 cl Thru Hole Socket Strip
Ordering Information
PC200S
XX
- S - 02 - T -
X
- LF
02 - 20
Pins Per Row
Lead Free
Packing Information
T = Tube
B = Bulk
If left blank, packaging at MLE's discretion
Row Specification
S = Single Row
Thru Hole
02
Plating Options
Matte Tin All Over
T
Specifications
Current Rating: 7.9 Ampere
Insulation Resistance: 1000MΩ Min.
Dielectric Withstanding: 1500V AC/DC
Contact Resistance: 20 mΩ Max.
Operating Temperature: -55°C to + 105°C
Max. Process Temperature:
IR Reflow: 280°C up to 10 secs.
Wave: 250°C up to 10 secs.
Manual Solder: 380°C up to 5 secs.
No of Mating Cycles: 100
Insertion Force (Average): 7N/Pin Max.
Withdrawal Force (Average): 0.5N/Pin Min.
Materials
Contact Material: Phosphor Bronze
Insulator Material: LCP, UL94V-0
Plating: 100µ" Matte Tin over 50µ" (1,27) Ni
Products cut to specific sizes are uncancellable/nonreturnable
Mates with:
PC200H
PC200HR
Parts are subject to change without notice

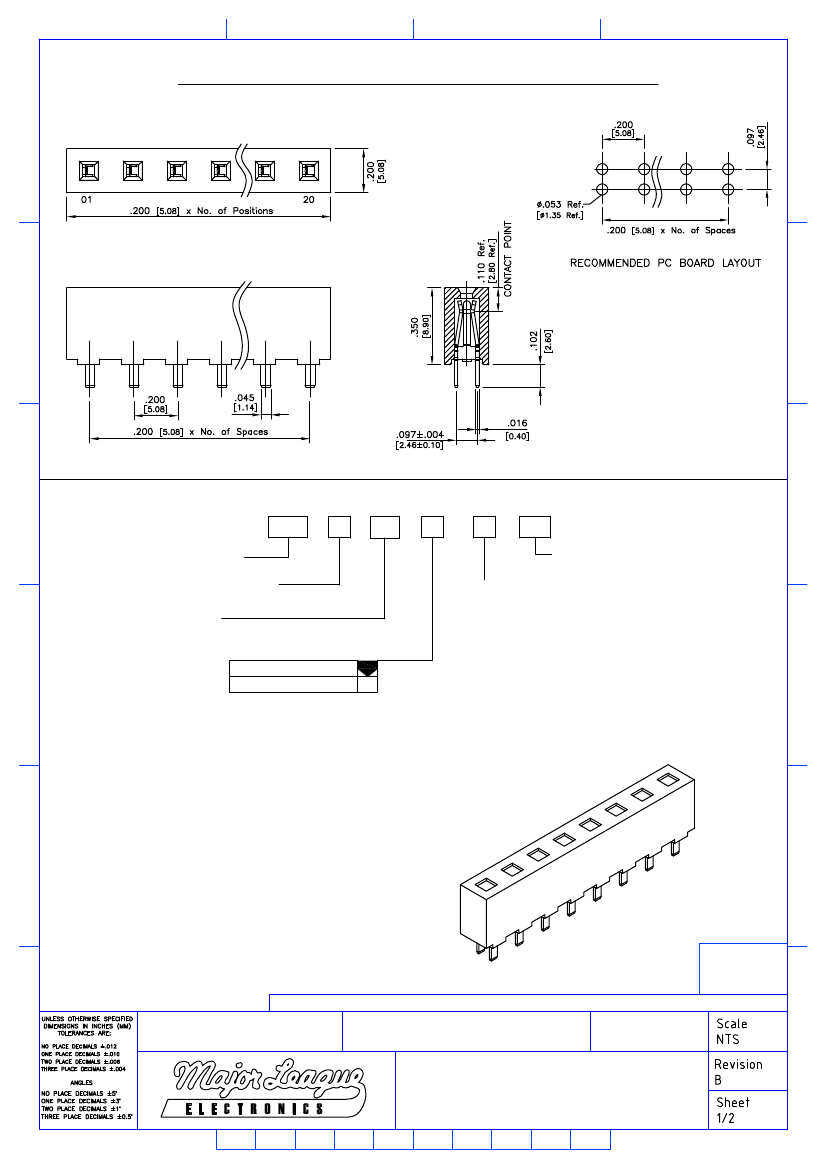

PC200S-XX-S-02 SERIES
.200cl Single Row
Thru Hole Socket Strip
23 JUN 08
4235 Earnings Way, New Albany, Indiana, 47150, USA
1-800-782-3486 (USA/Canada/Mexico)
Tel: 812-944-7244
Fax: 812-944-7268
E-mail: mle@mlelectronics.com
Web: www.mlelectronics.com
Revisions
Revision B - (1st July 2010)
Additions to Specification;
Mating Cycle, Insertion Force and Withdrawal Force
Correction to Tolerance Information; now in inches.
PC200S-XX-S-02 SERIES
