E13C7E2F-164.355M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> E13C7E2F-164.355M

E13C7E2F-164.355M: DescriptionCRYSTAL OSCILLATOR, CLOCK, 164.355MHz, LVPECL OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size127KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

E13C7E2F-164.355M Overview

CRYSTAL OSCILLATOR, CLOCK, 164.355MHz, LVPECL OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN

E13C7E2F-164.355M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
package instruction	DILCC6,.2
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; BULK
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Manufacturer's serial number	E13C7
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	312 MHz
Minimum operating frequency	77.76 MHz
Nominal operating frequency	164.355 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVPECL
Output load	50 OHM
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
physical size	7.0mm x 5.0mm x 2.0mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	0.7 ns
Maximum slew rate	100 mA
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

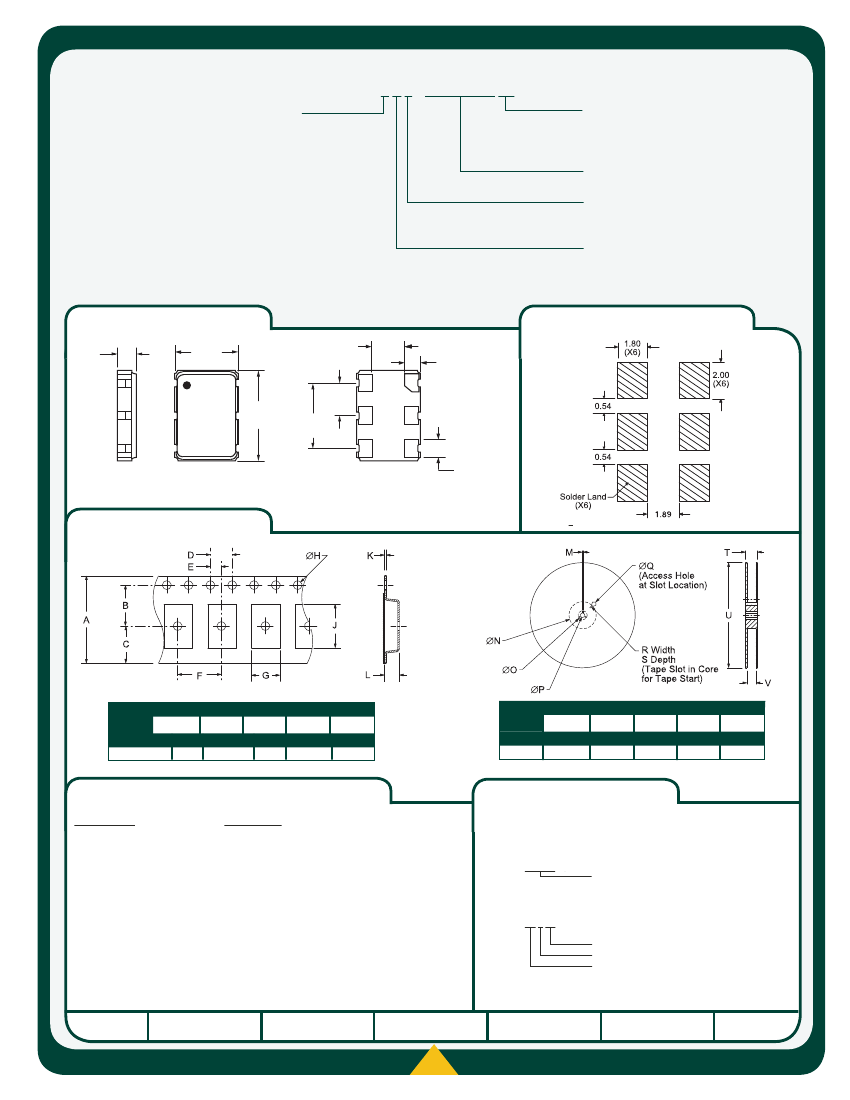

Preview

Download Datasheet

View All

E13C7

Series

• Crystal Clock Oscillators

• LVPECL Output

• +3.3V Supply Voltage

• Complementary Output

• Tri-State Output Function

• 6 Pad Ceramic SMD Package

• Low Stand-by Current

• RoHS Compliant (Pb-Free)

ELECTRICAL SPECIFICATIONS

Nominal Frequency (MHz)

E13C7

2.0

7.0

5.0

OSCILLATOR

77.76, 78.125, 80, 80.157, 85, 87.125, 90, 100, 106.25, 110, 119, 120, 122.888, 124.4, 125, 127, 128,

131.072, 133, 133.33, 133.333, 135, 137.472, 150, 155.52, 156.25, 159.375, 161.1328, 162.5, 163.84,

164.355, 164.355469, 166, 166.67, 167.3316, 170, 173.3705, 175, 176.83816, 187.5, 187.509375,

187.5103, 200, 212.5, 240, 250, or 312MHz

0°C to +70°C, or -40°C to +85°C

-55°C to +125°C

3.3V

±5%

75mA Maximum

100mA Maximum

±100ppm, ±50ppm, ±25ppm, or

±20ppm Maximum

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

Frequency Tolerance / Stability

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

Duty Cycle

Load Drive Capability

Logic Control / Additional Output

Tri-State Input Voltage

of 70% of V

Minimum

No Connection

of 30% of V

Maximum

Standby Current

Without Load

Start Up Time

RMS Phase Jitter

FJ = 12kHz to 20MHz

Typical Phase Noise

Fo=156.250MHz

77.76MHz to 159.999999MHz

160MHz to 312.5MHz

Inclusive of All Conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, 1st Year

Aging at 25°C, Shock, and Vibration

0°C to +85°C

-40°C to 0°C

0°C to +85°C

-40°C to 0°C

20% to 80% of waveform

at 50% of waveform

-1.025V

Minimum

-1.085V

Minimum

-1.620V

Maximum

-1.555V

Maximum

300pSec Typical, 700pSec Maximum

50 ±5(%)

50 Ohms into V

-2.0V

Tri-State and Complementary Output

Enables Output

Disables Output: High Impedance

30µA Maximum

10 mSeconds Maximum

0.4pSec Typical, 1 pSec Maximum

-60dBc/Hz at 10Hz Offset

-95dBc/Hz at 100Hz Offset

-125dBc/Hz at 1kHz Offset

-143dBc/Hz at 10kHz Offset

-145dBc/Hz at 100kHz Offset

-145dBc/Hz at 1MHz Offset

-146dBc/Hz at 10MHz Offset

CLASS

REV

DATE

MANUFACTURER

Recommended Resources

AN7161N power amplifier circuit diagram

Power circuit diagram
