TNC Male Right Angle Connector Clamp/Solder Attachment
For RG58, RG55, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
PE4054
TNC Male Right Angle Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223,
RG400
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
TNC Male
MIL-STD-348A
RG58,RG55,RG141,RG142,RG223,RG400
Clamp/Solder
Right Angle
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
Frequency 1
Frequency, GHz
VSWR
DC to 11
50
500
1,500
DC to 4
1.5:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
-65 to +165
1.6 [40.64]
0.59 [15]
1.145 [29.08]
0.096 [43.54]
TNC Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
TNC Male Right Angle Connector Clamp/Solder Attachment For RG58, RG55, RG141,
RG142, RG223, RG400 PE4054
PE4054 REV
1
TNC Male Right Angle Connector Clamp/Solder Attachment
For RG58, RG55, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
PE4054
URL:
http://www.pasternack.com/tnc-male-standard-rg58-rg55-rg141-rg142-rg223-rg400-connector-pe4054-p.aspx
TNC Male Right Angle Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400 from
Pasternack Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the
industry’s broadest selection of RF, microwave and fiber optic products.
PE4054 REV
2
PE4054

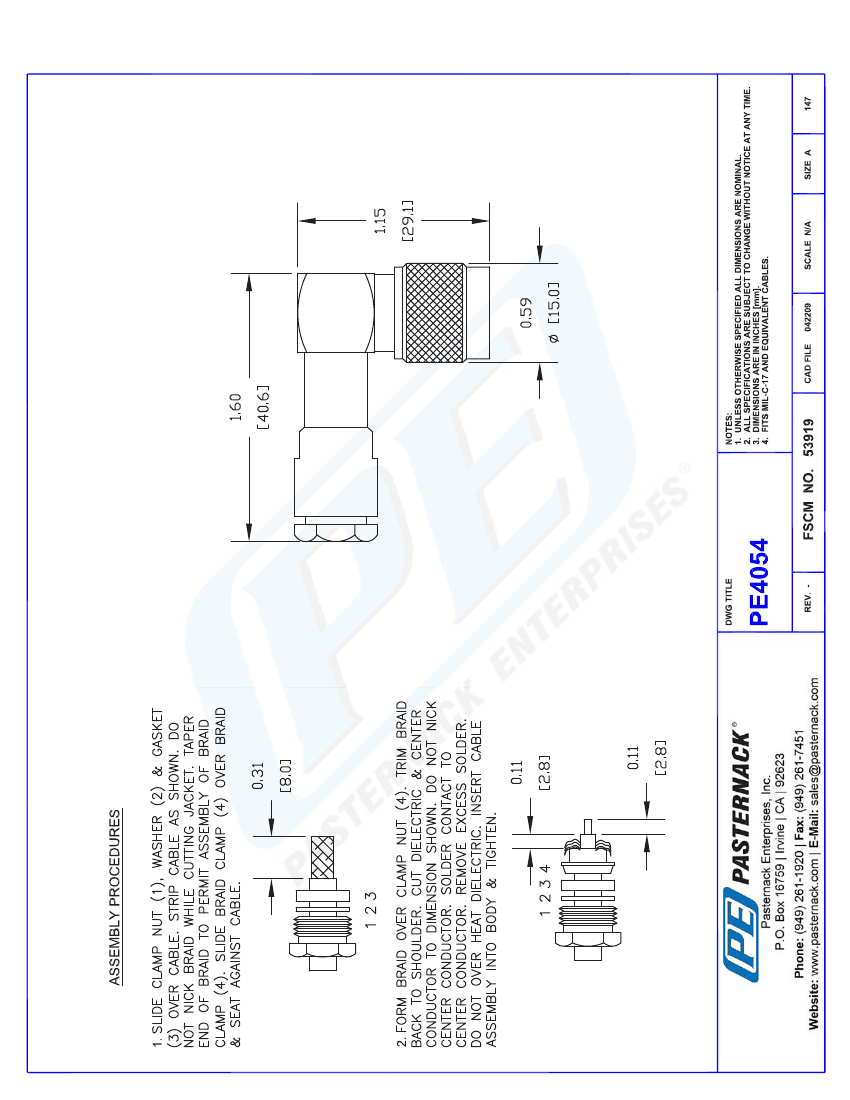

CAD Drawing
TNC Male Right Angle Connector Clamp/Solder Attachment
For RG58, RG55, RG141, RG142, RG223, RG400
© 2012 Pasternack Enterprises All Rights Reserved
PE4054 REV
3
