SMA Male Connector Solder Attachment 4 Hole
Flange Stub Terminal, .340 inch Hole Spacing
TECHNICAL DATA SHEET
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMA Male
MIL-STD-348
Stub
Solder
Straight
4 Hole Flange
PE4126
SMA Male Connector Solder Attachment 4 Hole Flange Stub Terminal, .340 inch Hole Spacing
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
DC to 18
50
1.25:1
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.987 [25.07]
0.5 [13]
0.5 [12.7]
0.013 [5.9]
SMA Male
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 2
Passivated Stainless Steel
QQ-P-35
5/16
8 [0.9]
Passivated Stainless Steel
QQ-P-35
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male Connector Solder Attachment 4 Hole Flange Stub Terminal, .340 inch Hole Spacing
PE4126
PE4126 REV
1
SMA Male Connector Solder Attachment 4 Hole
Flange Stub Terminal, .340 inch Hole Spacing
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4126
SMA Male Connector Solder Attachment 4 Hole Flange Stub Terminal, .340 inch Hole Spacing from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male Connector Solder Attachment 4 Hole Flange Stub Terminal, .340 inch Hole Spacing
PE4126
URL:
http://www.pasternack.com/sma-male-standard-stub-terminal-connector-pe4126-p.aspx
PE4126 REV
2
© 2013 Pasternack Enterprises All Rights Reserved

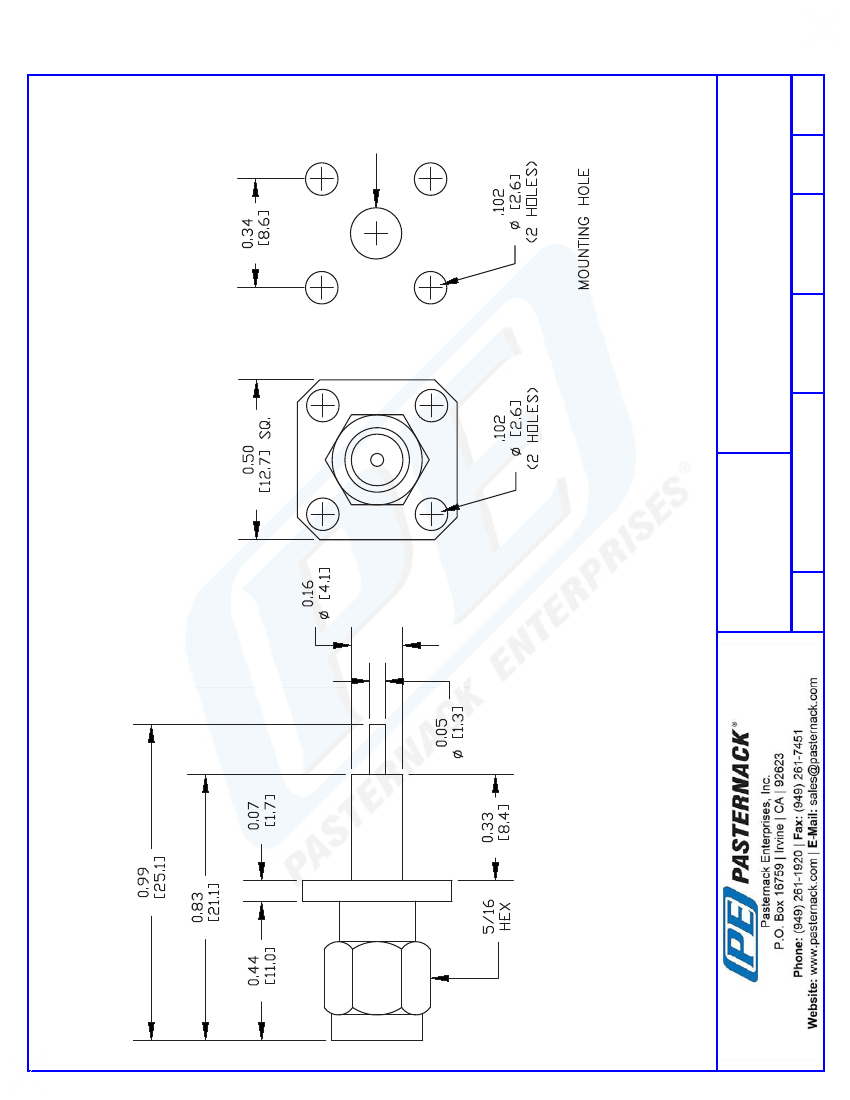

DWG TITLE
PE4126
CAD Drawing
SMA Male Connector Solder Attachment 4 Hole Flange
Stub Terminal, .340 inch Hole Spacing
PE4126 REV
PE4126
REV. A
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
083111
SCALE N/A
SIZE A
2231
3
