SMB Jack Connector Clamp/Solder Attachment
For RG174, RG316, RG188
TECHNICAL DATA SHEET
SMB Jack Connector Clamp/Solder Attachment For RG174, RG316, RG188
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMB Jack
RG174,RG316,RG188
Clamp/Solder
Straight
PE4268
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.65 [16.51]
0.25 [6.35]
0.004 [1.81]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
SMB Jack
Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
SMB Jack Connector Clamp/Solder Attachment For RG174, RG316, RG188 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMB Jack Connector Clamp/Solder Attachment For RG174, RG316, RG188 PE4268
URL:
http://www.pasternack.com/smb-jack-standard-rg174-rg316-rg188-connector-pe4268-p.aspx
PE4268 REV
1
PE4268

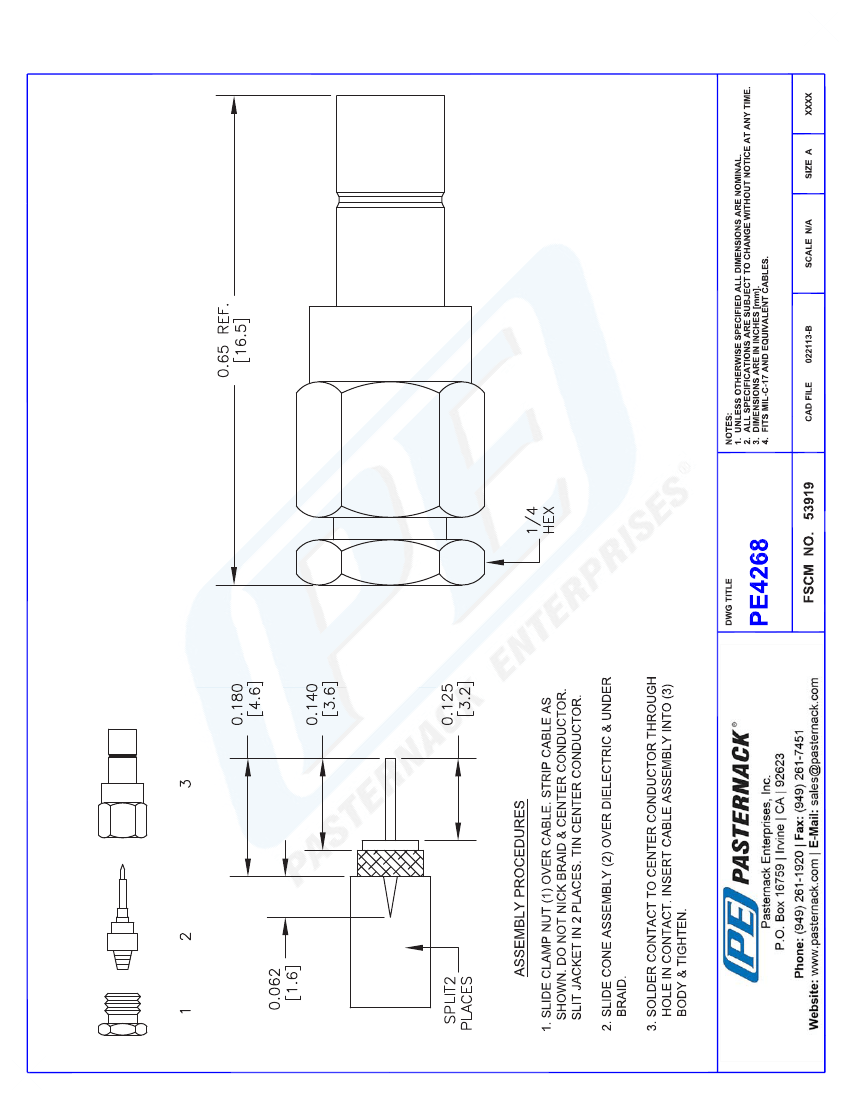

CAD Drawing
SMB Jack Connector Clamp/Solder Attachment For RG174, RG316, RG188
© 2013 Pasternack Enterprises All Rights Reserved
PE4268 REV
2
