TNC Male Right Angle Connector Crimp/
Solder Attachment For RG58
TECHNICAL DATA SHEET
TNC Male Right Angle Connector Crimp/Solder Attachment For RG58
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
TNC Male
MIL-STD-348A
RG58
Crimp/Solder
Right Angle
PE4451
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
Frequency 1
Frequency, GHz
VSWR
DC to 11
50
500
1,000
DC to 3
1.35:1
Mechanical Specifications
Temperature
Operating Range, deg C

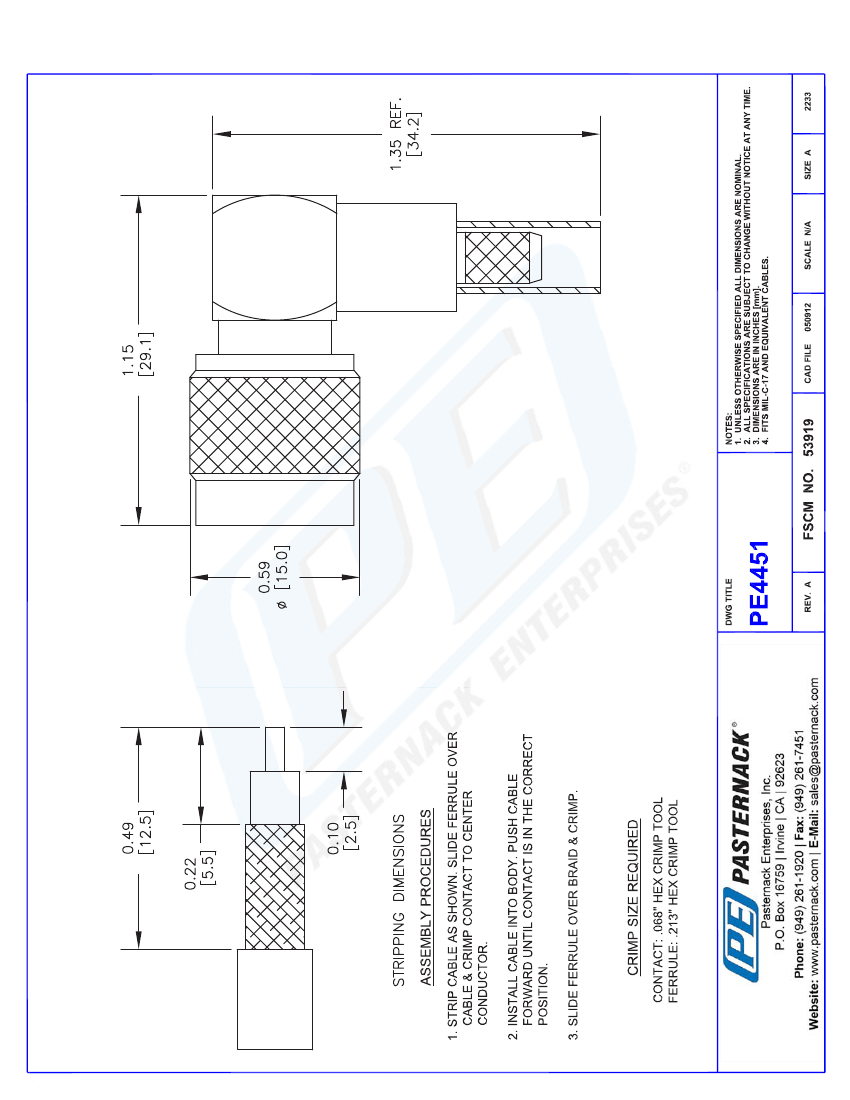

Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
-65 to +165
1.35 [34.29]
0.591 [15]
1.146 [29.11]
0.068 [30.84]
TNC Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
TNC Male Right Angle Connector Crimp/Solder Attachment For RG58 PE4451
PE4451 REV
1
TNC Male Right Angle Connector Crimp/
Solder Attachment For RG58
TECHNICAL DATA SHEET
URL:
http://www.pasternack.com/tnc-male-standard-rg58-connector-pe4451-p.aspx
TNC Male Right Angle Connector Crimp/Solder Attachment For RG58 from Pasternack Enterprises has same day shipment
for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF, microwave and
fiber optic products.
PE4451
PE4451 REV
2
