SMA Female Bulkhead Connector Solder Attachment
Solder Cup Terminal, .250 inch Diameter
TECHNICAL DATA SHEET
PE4549
SMA Female Bulkhead Connector Solder Attachment Solder Cup Terminal, .250 inch Diameter
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMA Female
MIL-C-39012
Solder Cup
Solder
Straight
Bulkhead
Electrical Specifications
Impedance, Ohms
50

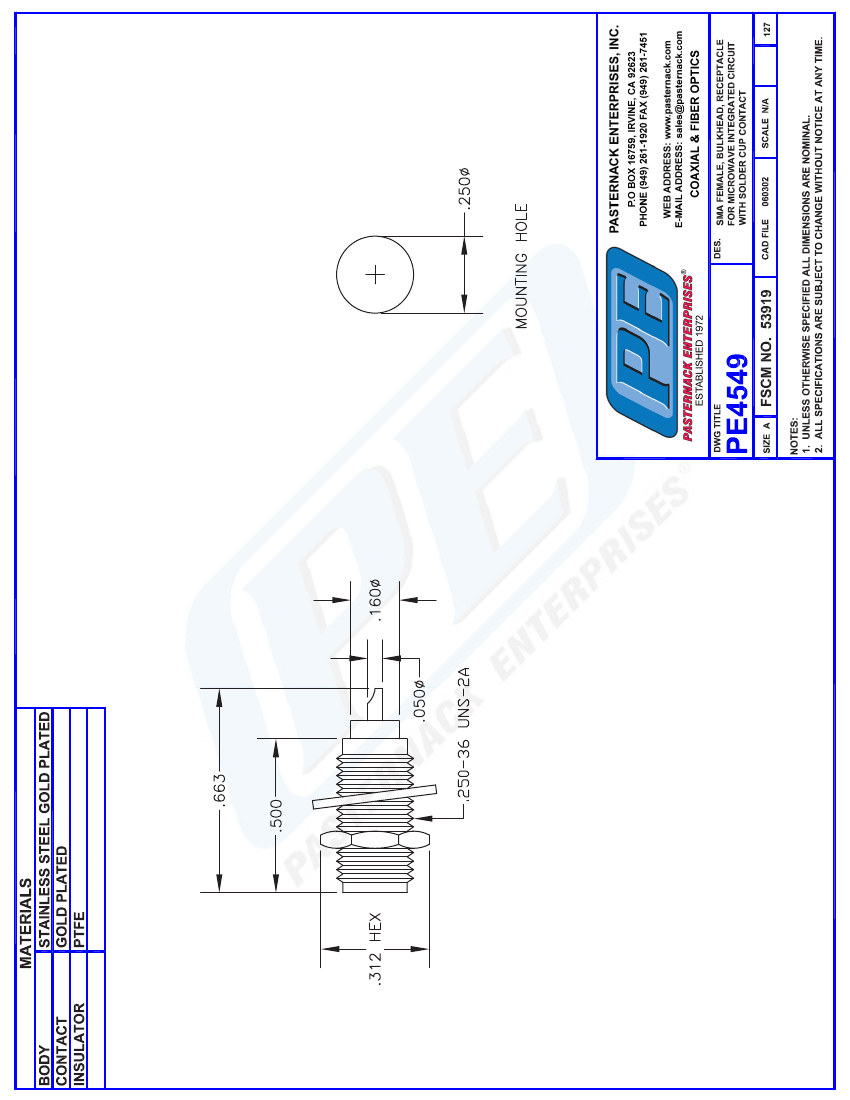

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.663 [16.84]
0.312 [7.92]
0.005 [2.27]
SMA Female
Gold
Stainless Steel, Gold
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
SMA Female Bulkhead Connector Solder Attachment Solder Cup Terminal, .250 inch Diameter from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female Bulkhead Connector Solder Attachment Solder Cup Terminal, .250 inch Diameter
PE4549
URL:
http://www.pasternack.com/sma-female-standard-solder-cup-terminal-connector-pe4549-p.aspx
PE4549 REV
