MCX Plug Right Angle Connector Crimp/
Solder Attachment For RG178, RG196
TECHNICAL DATA SHEET
MCX Plug Right Angle Connector Crimp/Solder Attachment For RG178, RG196
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
MCX Plug
CECC 22220
RG178,RG196
Crimp/Solder
Right Angle
PE4554
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
Frequency 1
Frequency, MHz
VSWR
Frequency 2
Frequency, GHz
VSWR
DC to 6
50
170
500
DC to 1,000
1.5:1
1 to 3
1.63:1
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
0.54 [13.72]
0.197 [5]
0.339 [8.61]
0.006 [2.72]
MCX Plug
Brass, Gold
30µ in. minimum
Beryllium Copper/Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
MCX Plug Right Angle Connector Crimp/Solder Attachment For RG178, RG196 PE4554
PE4554 REV
1
MCX Plug Right Angle Connector Crimp/
Solder Attachment For RG178, RG196
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE4554
URL:
http://www.pasternack.com/mcx-plug-standard-rg178-rg196-connector-pe4554-p.aspx
MCX Plug Right Angle Connector Crimp/Solder Attachment For RG178, RG196 from Pasternack Enterprises has same day
shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF,
microwave and fiber optic products.
PE4554 REV
2
PE4554

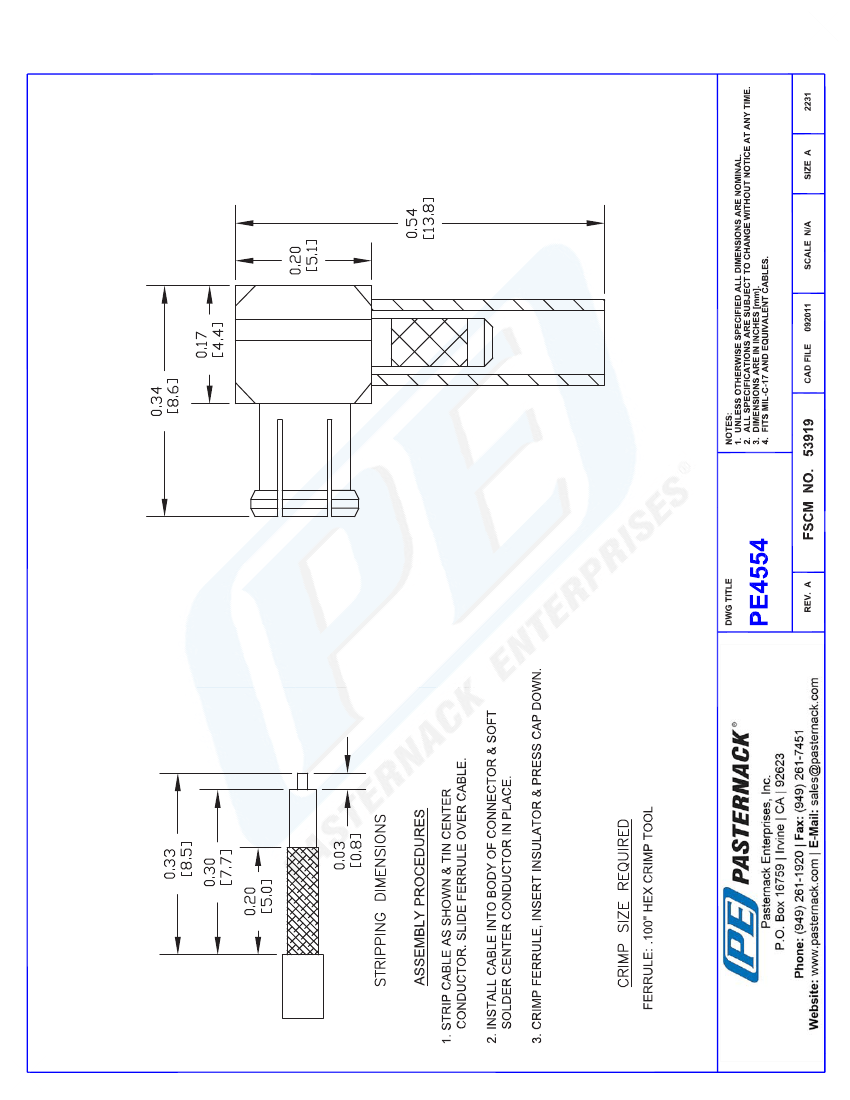

CAD Drawing
MCX Plug Right Angle Connector Crimp/Solder Attachment For RG178, RG196
© 2012 Pasternack Enterprises All Rights Reserved
PE4554 REV
3
