30 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink
Black Anodized Body Rated To 10 Watts Up To 12.4 GHz
TECHNICAL DATA SHEET
PE7048-30
30 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink Black Anodized Body Rated To
10 Watts Up To 12.4 GHz
Configuration
Design
Connector 1
Connector 2
Body Material and Plating
Fixed, Bidirectional Attenuator
N Male
N Female
Aluminum Heatsink, Black Anodized
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Attenuation Value, dB
Maximum Input Power, Watts
Maximum VSWR
Frequency 1
Range, GHz
VSWR
Attenuation Accuracy, dB
DC to 12.4
50
30
10
1.35:1
DC to 12.4
1.35:1
± 1.5
Mechanical Specifications
Size
Length, in [mm]
Width, in [mm]
.
2.66 [67.56]
1 [25.4]
Connector 1
Type
Connector Specification
Contact Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
N Male
MIL-STD-348
Beryllium Copper, Gold
Brass, Nickel
Passivated Stainless Steel
Connector 2
Type
Connector Specification
Contact Material and Plating
Body Material and Plating
N Female
MIL-STD-348
Beryllium Copper, Gold
Passivated Stainless Steel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
30 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink Black Anodized Body Rated
To 10 Watts Up To 12.4 GHz PE7048-30
PE7048-30 REV
1
30 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink
Black Anodized Body Rated To 10 Watts Up To 12.4 GHz
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE7048-30
30 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink Black Anodized Body Rated To 10 Watts Up To 12.4 GHz
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
30 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink Black Anodized Body Rated To
10 Watts Up To 12.4 GHz PE7048-30
URL:
http://www.pasternack.com/30db-fixed-n-male-n-female-10-watts-attenuator-pe7048-30-p.aspx
PE7048-30 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
P/N
ATTEN.
FIGURE
FIGURE 1
PE7048-30

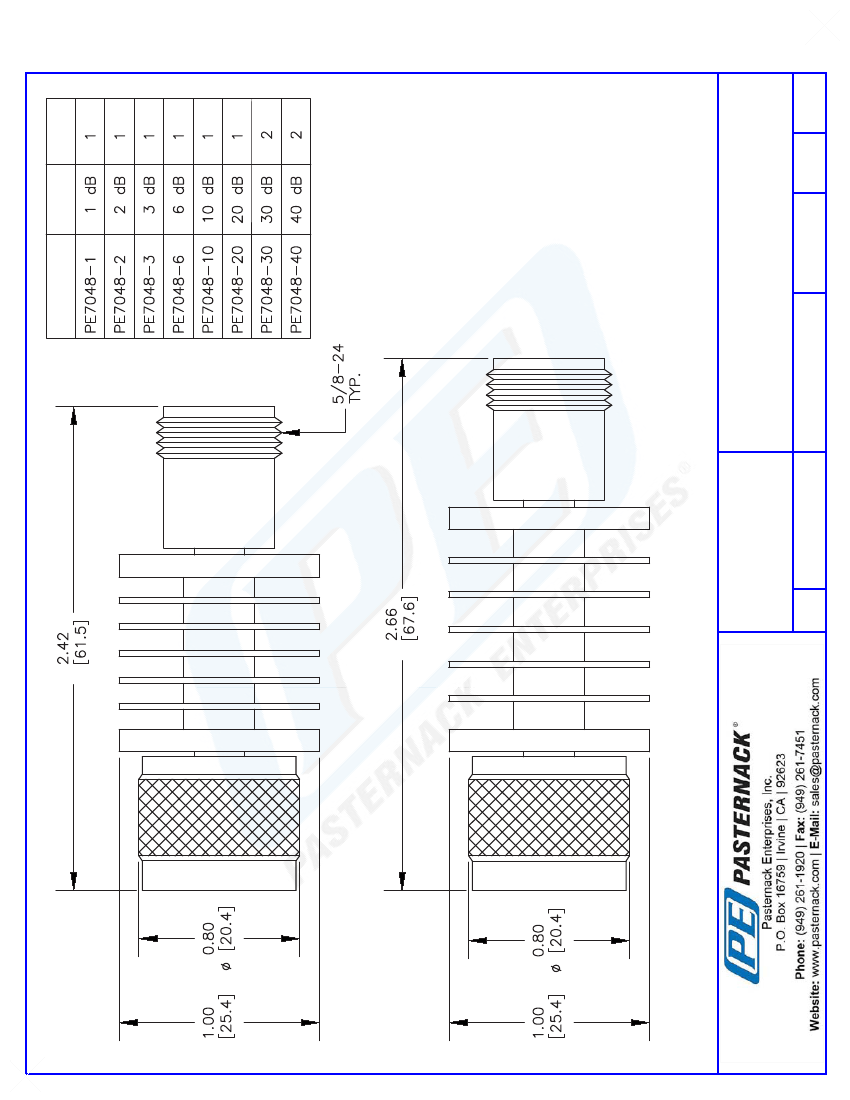

CAD Drawing
30 dB Fixed Attenuator, N Male To N Female Aluminum Heatsink
Black Anodized Body Rated To 10 Watts Up To 12.4 GHz
PE7048-30 REV
N MALE
FIGURE 2
N FEMALE
DWG TITLE
PE7048
REV. A
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
FSCM NO. 53919
CAD FILE
030513-A
SCALE N/A
SIZE A
XXXX
3
