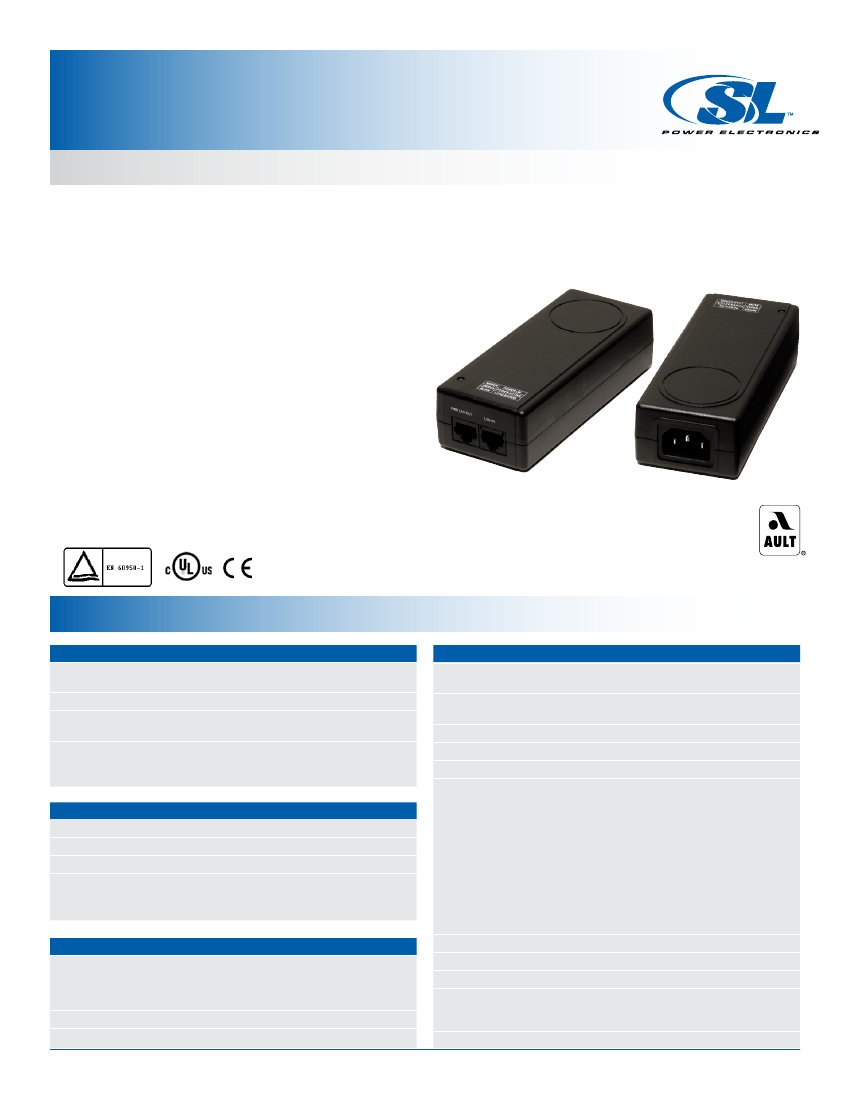

Universal 32 Watt (IEEE802.3af Non-Compliant)

Preview

Download Datasheet

View All

PW183RC

PoE Plus

• 10/100 (MbPS) Data Rates

• Self-contained Injector

• 100-250VAC Universal Input

• Desktop Style / Non-vented Case

• IEEE802.3af Non-Compliant

• Power ON LED

• UNH IOL Test Report

Universal 32 Watt (IEEE802.3af Non-Compliant)

• Over Load Shutdown and Short Circuit Protection

• Regulated Output With Low Ripple

• Complies with EMI/RFI Regulations

• CE Compliant

• Midspan

International Safety Standard Approvals

Specifications

Output Specifications

Combined Line and Load

Voltage Regulation

Ripple

Transient Response

Protection

Excluding Cord

±1%

1% Vp-p max.

0.5ms for 50%

Load Change Typical

Foldback Overcurrent

Protection,

Short Circuit Protection

General Specifications

Topology

Dielectric Withstand

Spacing

Leakage Current

Efficiency

EMC Information

Emissions

Harmonic

VFF

ESD

RF EFI

EFT

Surge

CDI

Voltage Dips

Hold-up Time

Storage Temp

Approvals and

Standards

MTBF

Primary-Secondary

Secondary-Ground

FCC Part 15.

EN55022.

EN61000-3-2

EN61000-3-3

EN61000-4-2.

EN61000-4-3.

EN61000-4-4.

EN61000-4-5.

EN61000-4-6.

EN61000-4-8.

EN61000-4-11

Switching-Fixed

Frequency Flyback

3000VAC, 4250VDC

500VDC

5mm Primary-Secondary

Less than 250 uA

75.1% min.

Class B

Level 2

Level 3

Level 2

Level 1

Input Specifications

AC Input Voltage Range

Line Frequency

AC Input Current

Protection

100-250VAC -10%, +6%

47-63Hz

1.0A max.

Internal Primary

Current Fuse,

Inrush Limiting

Environmental Specifications

Thermal Performance

Relative Humidity

Altitude

Operating Temperature 0° C to 40° C

No Derating,

Convectional Cooling

Non Vented Case

Non-Condensing

5% to 95%

0-10,000 feet

LVD, EMC, RoHS, WEEE, CE Compliant

@120VAC

Safety

18ms min. typ.

-30° C to +85° C

cULus : UL/CSA60950

TUV : EN60950

CE: LVD, EMCD

100,000 Calculated Hours

SL Power Electronics Corp

•

6050 King Drive

•

Ventura, CA 93003

•

Phone:805.486.4565

•

Fax:805.487.8911

•

Email:info@slpower.com

•

www.slpower.com
