1000 WATTS
POWER FACTOR CORRECTED
SINGLE OUTPUT, HOT SWAP
TCM-1000
Featuring:
•
Diode isolated output for hot swap
•
“Zero wire” slope program current
sharing
•
High power density
6.5 Watt/cu. in.
•
Industry standard DIN connector
•
0.99 typical power factor
•
DC power good and AC power
fail signals
•
True remote inhibit
•
Monotonic turn-on and turn-off
•
Extended temperature operation
•
High efficiency 87% typical
(48 V units)
•
Operating temperature range
-20°C to +60°C
STANDARD TCM SERIES
MODEL
TCM-1000-24
TCM-1000-28
TCM-1000-48
OUTPUT RATING
24V @ 41.6A
28V @ 35.7A
48V @ 20.8A
PWR OUT
1000
1000
1000

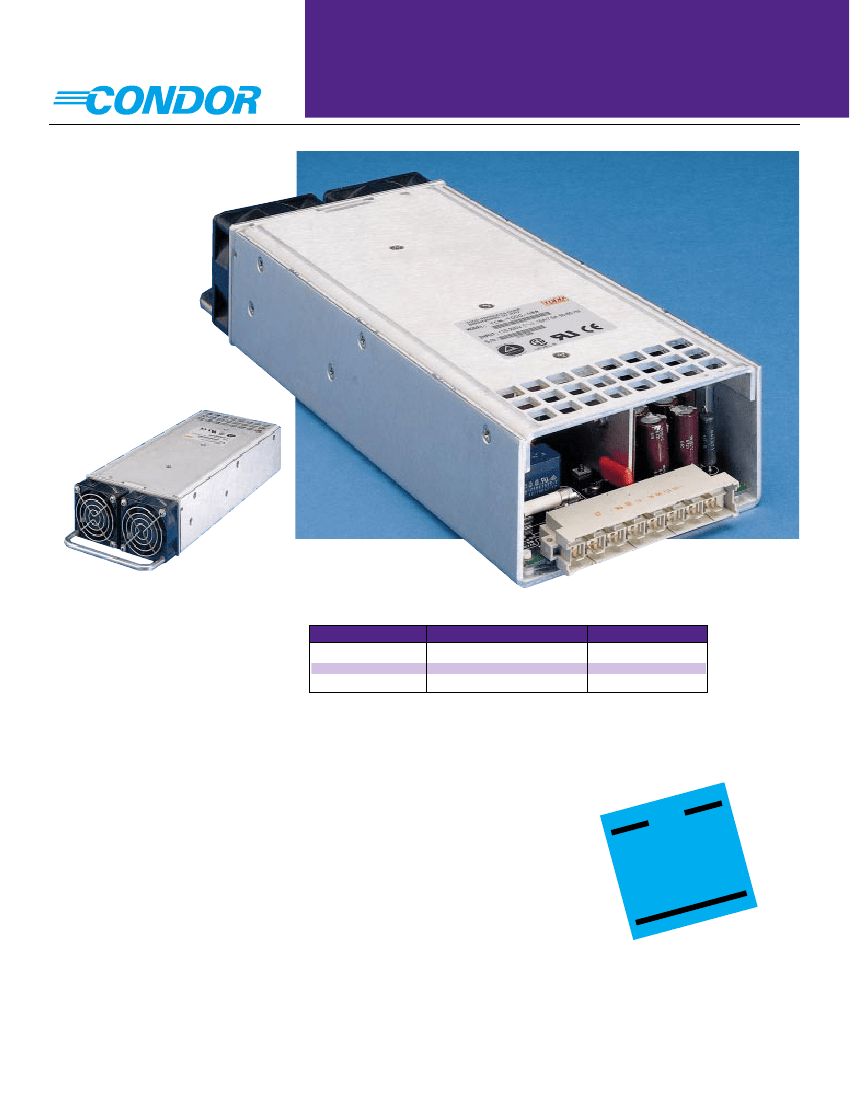

The 1000-watt TCM Series “hot swap-
pable” power supplies deliver remarkable
economy and reliability in applications
that require redundancy over extended
temperature ranges. These high-density,
single-output supplies are available
with a front panel and handle for use in
sub-system racks or without handles
for embedded applications.
Power factor correction, OR-ing diodes,
and current sharing make the TCM
Series an ideal choice for communica-
tions and data processing systems
utilizing distributed power or redundant
power architecture.
(R EM)
T
SYS
S
TR
CK
A
SEE
Condor D.C. Power Supplies, Inc., A subsidiary of SL Industries, Inc. 805-486-4565 • (800) 235-5929 Fax: (805) 487-8911 http://www.condorpower.com
1000 WATTS
13.27”x 4.87”x 2.49”
TCM-1000
TCM-1000
5.2 lbs - 2.6 kgs
Dimensions:
Inches
Millimeters
SPECIFICATIONS: ALL MODELS
INPUT
AC Input:
180-264 Vac, 47-63 Hz internally fused 10 A.
Power Factor:
0.99 typical at full load. Meets EN61000-3.2.
Inrush:
Limited by thermistor, 40 Ampere maximum (8ms), cold start.
Hold Up Time:
20 ms minimum after removal of power supply at full load.
Efficiency:
87% typical @ full load.
AC Power Fail:
Provides TTL "O" 5 ms before output voltage goes out of regulation
band upon loss of AC power.
OUTPUT
Adjustability:
User adjustable ±5% minimum.
Output:
48 V @ 20.8 Amp. (1000 W max.).
Line Regulation:
±0.2%
Load Regulation:
±2% (Slope Program) from 0 to 100% load changes.
Turn On Delay:
1 second typical.
Ripple & Noise:
0.5% p-p, measured at 20 MHz bandwidth.
Temperature Coefficient:
0.02% per degree C.
Stability:
0.1% over 8 hours, under constant line, load and ambient.
Transient Response:
Output voltage returns to within 1% in less than 500 µs for a
50% load change. Peak transient does not exceed 3%.
Overload Protection:
Electronic current limit, 120% maximum.
Overvoltage Protection:
Protects load against power supply induced overvoltage.
Trip point is factory set so that output voltage cannot exceed 136% of nominal.
Requires AC input to be cycled to reset.
Remote Inhibit:
Contact closure or TTL "0" turns off output.
DC Power Good:
Provides a TTL "0" open collector when output is above 90% of
nominal Maximum pull-up voltage 30 Vdc; maximum sink current, 10 mA.
Redundancy:
Built-in OR-ing diode, slope program current sharing, and DIN blade
connector provide "hot swap" and "N+1" capabilities. Current sharing remains
within 10% of the unit's full output rating given 0.2% initial accuracy in the
output voltage setting.
Current Sharing:
As calibrated at factory, modules will share current within
10% of full rated load.
Reverse Voltage:
Protected against reverse voltage up to twice output voltage rating.
(internal OR-ing diode.)
ENVIRONMENTAL
Thermal Protection:
Shuts down power supply if overheated. Automatic recovery.
Temperature Range:
-20° to +60° C, full power, de-rate to 66% maximum power @ 71° C.
Safety Agencies:
Approved to UL1950; CSA 22.2 #950; IEC 950 and TUV EN60950,
Class 1 SELV, CE 73/23/EEC//93/68/EEC (low voltage directive).
Conducted RFI:
Meets FCC Part 15, Subpart J, Class A; EN55022 Class B;
and CISPR 22 Class B.
Output Isolation:
Isolated from ground 100 Vdc.
Cooling:
Self-cooled by internal ball-bearing fan.
OPTIONS
Option "R" - Rack Mount Panel:
special panel that is required for rack mounting.
Consult factory for other available options.
AC INPUT (180-264 VAC Continuous Range)
LOCATION
Z32
D30
Z28
230 VAC
Line 1
Line 2
Safety Ground
CONNECTOR
Eurocard Connector -
Male DIN 41 612
Level 1- Type H
DC OUTPUT
FUNCTION
Output
Voltage
LOCATION
Z12 D14 Z16 D18
Z4 D6 Z8 D10
NOTES
(+) Polarity
(-) Polarity
CONNECTOR
Eurocard Connector -
Male DIN 41 612
Level 1- Type H
STATUS AND CONTROL
FUNCTION
DC Power Good
AC Power Fail
Inhibit
LOCATION
Z20
D22
Z24
NOTES
Reference to
Common
CONNECTOR
Eurocard Connector -
Male DIN 41 612
Level 1- Type H
