200 WATTS
POWER FACTOR CORRECTED
MULTIPLE OUTPUT

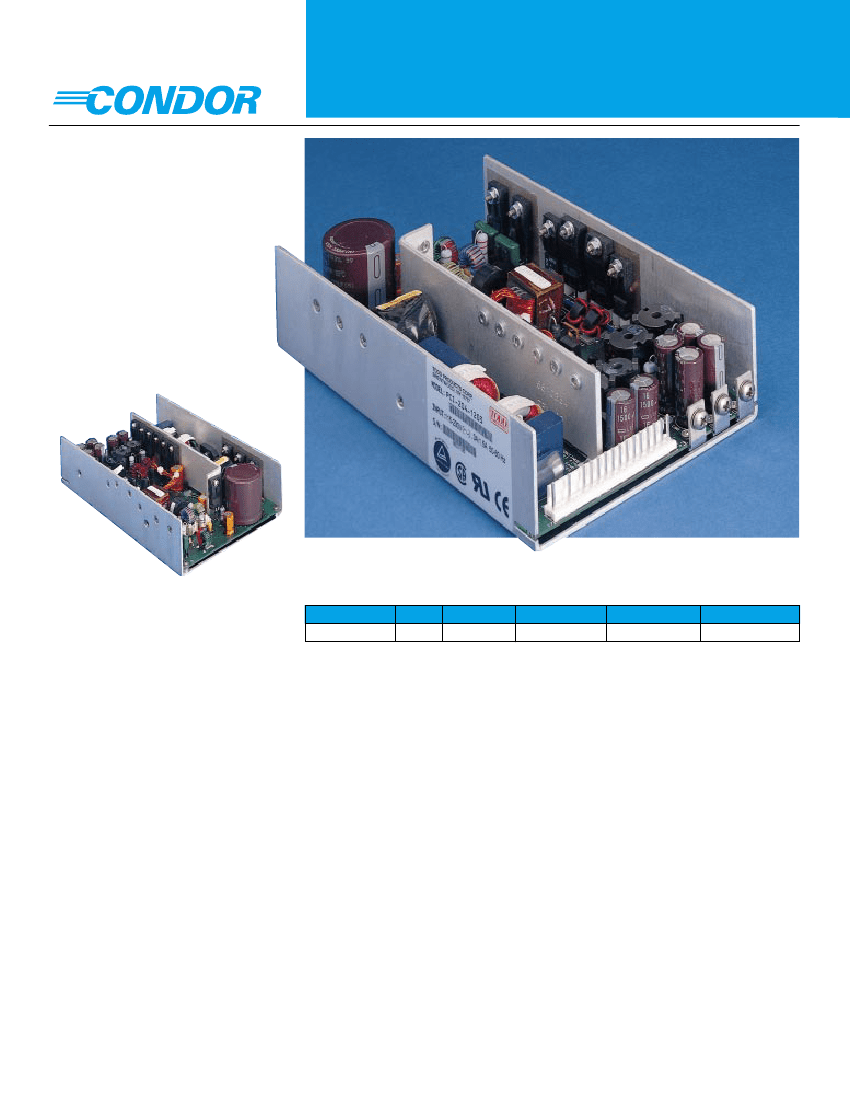

PCI-200
STANDARD PCI SERIES
Featuring:
•
Dual main outputs
• Flexible ratings
• 5 V “Keep Alive” bias output
• Universal AC input
• 0.99 typical power factor
• Remote sense on main outputs
• DC power good and AC power fail
• True remote inhibit
• High-current bus bars
MODEL
PCI 204-1203
PWR
200
OUTPUT #1
+5V @ 30A*
OUTPUT #2
+3.3V @ 20A*
OUTPUT #3
+12V @ 5A**
OUTPUT #4
-12V @ 5A**
* Combined rating, sum of output currents of outputs #1 & #2 equals 30 A.
** Combined rating, sum of output currents of outputs #3 & #4 equals 5 A.
The PCI 204 power supply series
provides simultaneous high currents
on both 5 V and 3.3 V outputs. The
load may be shifted between outputs.
For example: the PCI 204-1203 may
be loaded at +5 V @ 25 A and 3.3 V
@ 5 A, or 5 V @ 10 A and 3.3 V @
20 A, or any other combination of
loads within the maximum ratings.
Similarly the ±12 V may be loaded
in any combination not exceeding
maximum ratings.
The PCI series provides a single
solution as system configurations
proliferate, thereby reducing cycle
time and cost.
Condor D.C. Power Supplies, Inc., A subsidiary of SL Industries, Inc. 805-486-4565 • (800) 235-5929 Fax: (805) 487-8911 http://www.condorpower.com
200 WATTS
8.09”x 5”x 2”
PCI-200
PCI-200
2.0 lbs .9 kgs

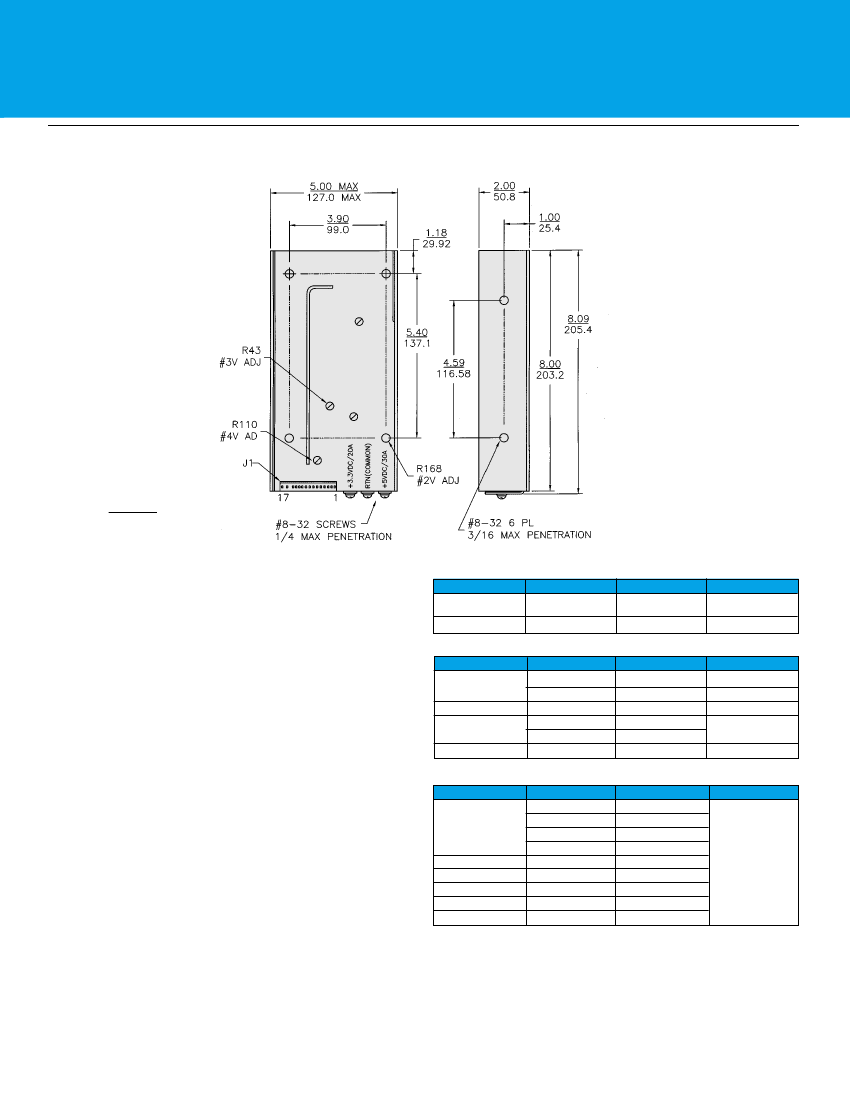

Dimensions:
Inches
Millimeters
SPECIFICATIONS:
INPUT
AC Input:
90 - 264 Vac continuous range, 47 to 63 Hz. Internally fused for 4 A.
Power Factor:
0.99 typical at full load. Meets EN61000-3-2.
Inrush:
Cold start AC current limited to 16 A. at 115 Vac, 30 A. at 230 Vac. Limited by
thermistor.
Brownout Protection:
Holds regulation to 85 Vac.
Holdup Time:
16 ms minimum.
Efficiency:
70% typical at full load nominal line.
AC Power Fail:
Provides TTL “0” 5 ms before output goes out of regulation band
upon loss of input power.
OUTPUT
Adjustability:
+ / - 5%
Line & Load Reg:
+ /- 1% over AC input range and minimum to maximum load.
Minimum Load:
10% on main to insure regulation of aux outputs.
Ripple & Noise:
Less than 1% p-p or 100 mV, which ever greater.
Remote Sense:
(Outputs #1, and #2) Compensates for 250 mv total line drop. Open sense
lead protection.
Temperature Coefficient:
0.02% per degree C.
Transient Response:
Output voltage returns to within 1% in less than 500 µs for a
25% load change. Peak transient does not exceed 3%.
Overload Protection:
All outputs are protected against overload and short circuit.
Automatic recovery upon removal of fault.
Overvoltage Protection:
Output #1 protected against power supply induced overvoltage
condition. Factory set to 136% maximum. Other outputs inherently voltage
limited by design.
Remote Inhibit:
Contact closure to negative sense line or a TTL “0” (open collector)
turns off DC outputs.
Reverse Voltage:
Protected against reversed voltage up to supply current ratings.
DC Power Good:
Provides TTL “0” (open collector) when output #1 above 4.6V.
Aux Output:
Provides 5 V + / - 5% @ 100 ma bias output, which is present whenever
power supply has input power.
ENVIRONMENTAL
Thermal Protection:
Shuts down power supply if heatsink temperature exceeds 82° C.
Temperature Range:
0° C to 50° C at full ratings.
Safety Agencies:
Approved to UL 1950; CSA 22.2 # 234 (950); TUV EN60950,
Class 1 SELV; CE 72/23/EEC/93/68EEC (low voltage directive).
Output Isolation:
Isolated form ground 50Vdc.
Conducted RFI:
Meets FCC part 15, Subpart J class A, and CISPR 22 class A.
Cooling:
30 CFM required to achieve full ratings.
AC INPUT (90 - 264 VAC Continuous Range)
FUNCTION
J1-17
J1-15
115 VAC
Neutral
Line
230 VAC
Line 2
Line 1
CONNECTOR
AMP p/n 1-60445-7
mates with:
AMP p/n 1-640426-7
DC OUTPUT
FUNCTION
Output #1
Output #2
Output #3
Output #4
LOCATION
Terminal marked +5
Terminal marked RTN
Terminal marked +3.3
J1-5
J1-6
J1-7
NOTES
Main Output
RTN (com)
+3.3 Output
+ Output
+/- RTN (com)
- Output
CONNECTOR
Bus bar #8-32 screw
Bus bar #8-32 screw
Bus bar #8-32 screw
AMP p/n 1-6044-7
mates with:
STATUS AND CONTROL
FUNCTION
Remote Sense
LOCATION
J1-1
J1-2
J1-3
J1-4
J1-8
J1-9
J1-10
J1-11
J1-12
NOTES
+5 sense
+3.3 sense
+3.3 sense rtn
+5 sense rtn
Reference to com
Reference to com
Reference to com
5V aux bias
5V aux bias rtn
CONNECTOR
See above
DC Power Good
AC Power Fail
Inhibit
Aux output (+)
Aux output (-)
OPTIONS:
Consult factory for available options.
