AM7991ADMB: DescriptionManchester Encoder/Decoder, CDIP24, HERMETIC SEALED, CERDIP-24; CategoryWireless rf/communication Telecom circuit; File Size373KB，13 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

AM7991ADMB Overview

Manchester Encoder/Decoder, CDIP24, HERMETIC SEALED, CERDIP-24

AM7991ADMB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	HERMETIC SEALED, CERDIP-24
Contacts	24
Reach Compliance Code	unknown
JESD-30 code	R-GDIP-T24
length	32.0675 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.715 mm
Nominal supply voltage	5 V
surface mount	NO
Telecom integrated circuit types	MANCHESTER ENCODER/DECODER
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

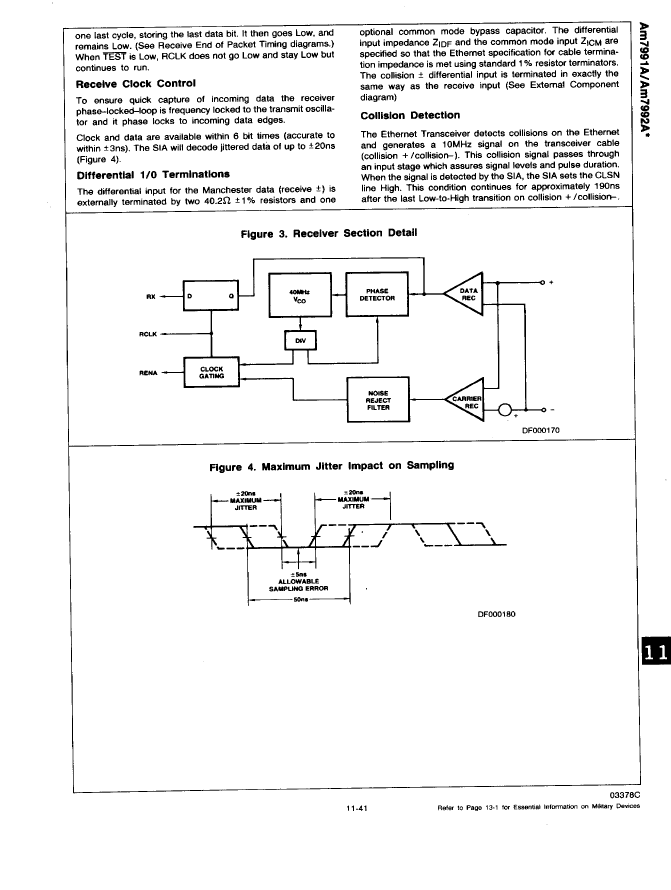

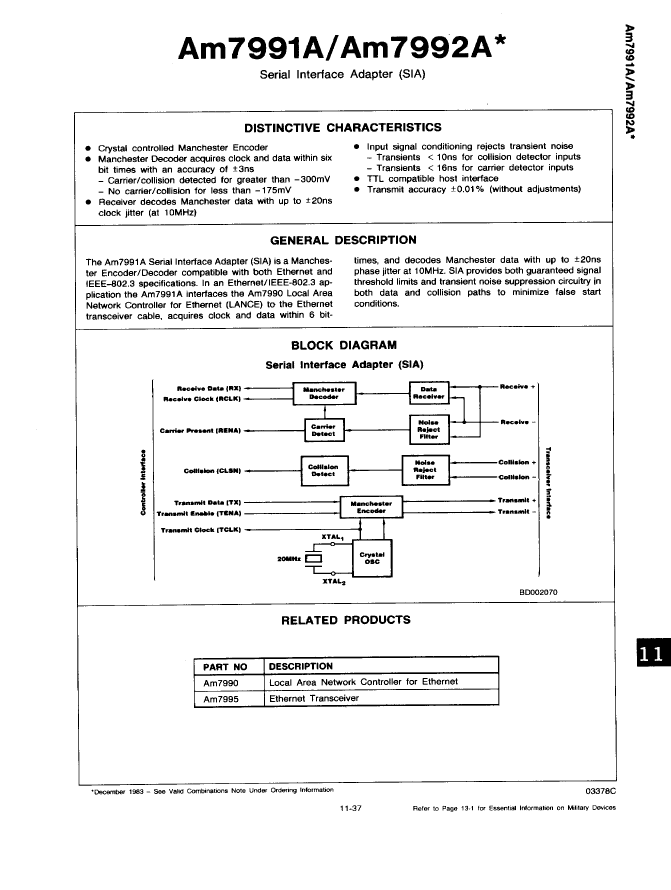

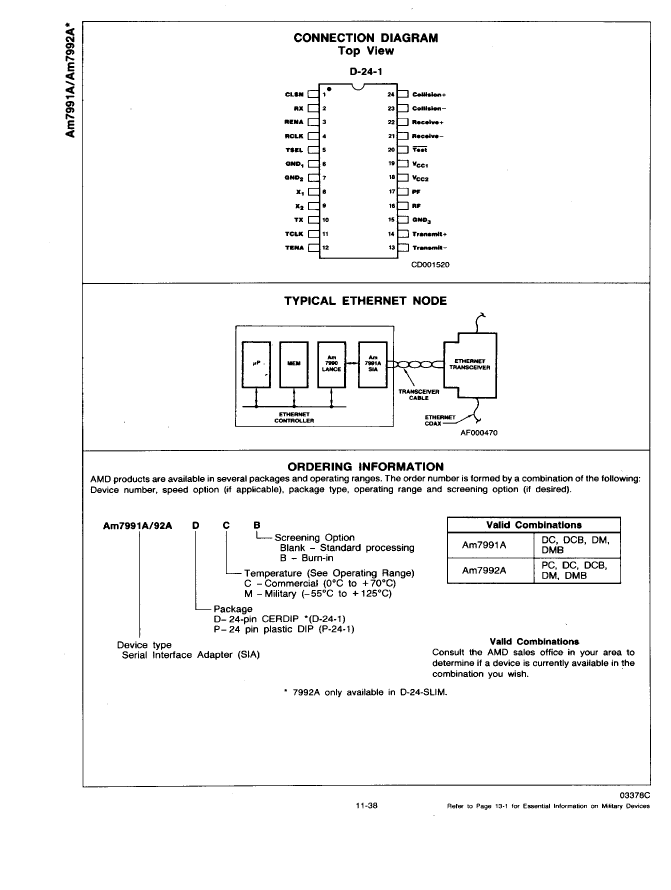

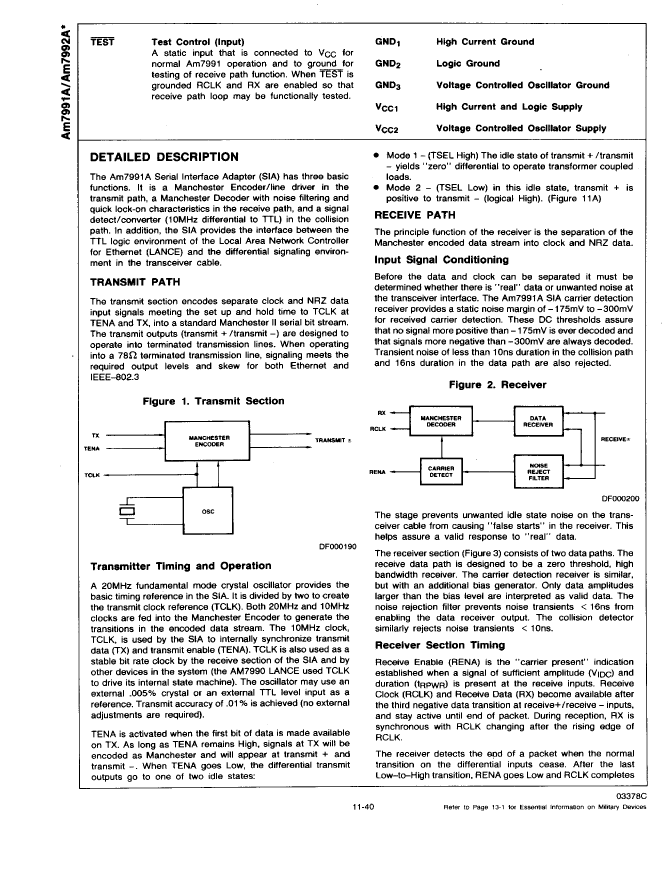

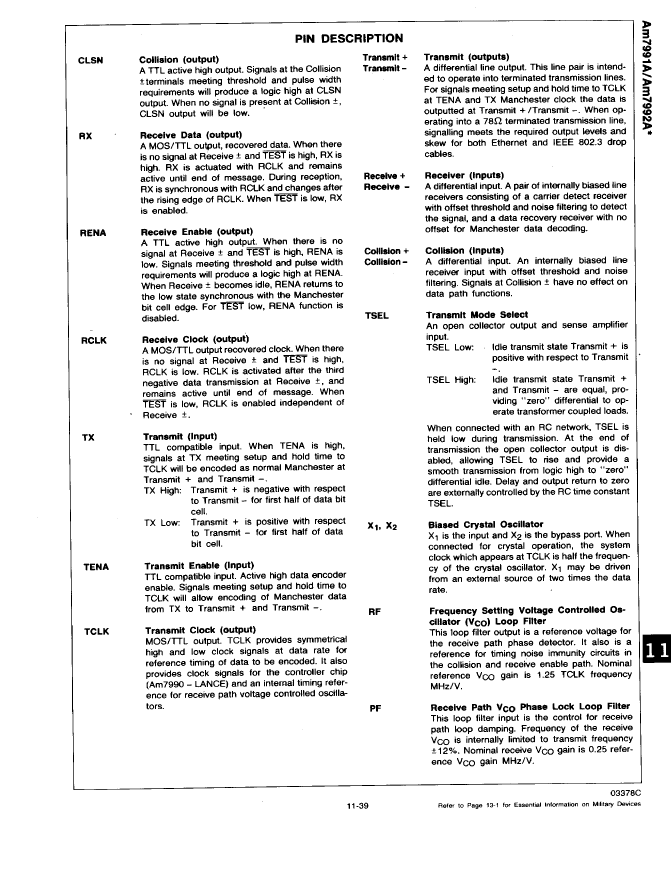

Preview

Download Datasheet

View All

AM7991ADMB Related Products

	AM7991ADMB	AM7992ADC	AM7992ADMB	AM7992APC	AM7992ADM	AM7992ADCB	AM7991ADC	AM7991ADM	AM7991ADCB
Description	Manchester Encoder/Decoder, CDIP24, HERMETIC SEALED, CERDIP-24	Manchester Encoder/Decoder, CDIP24, HERMETIC SEALED, CERDIP-24	Manchester Encoder/Decoder, CDIP24, HERMETIC SEALED, CERDIP-24	Manchester Encoder/Decoder, PDIP24, PLASTIC, DIP-24	Manchester Encoder/Decoder, CDIP24, HERMETIC SEALED, CERDIP-24	Manchester Encoder/Decoder, CDIP24, HERMETIC SEALED, CERDIP-24	Manchester Encoder/Decoder, CDIP24, HERMETIC SEALED, CERDIP-24	Manchester Encoder/Decoder, CDIP24, HERMETIC SEALED, CERDIP-24	Manchester Encoder/Decoder, CDIP24, HERMETIC SEALED, CERDIP-24
Maker	AMD	AMD	AMD	AMD	AMD	AMD	AMD	AMD	AMD
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	HERMETIC SEALED, CERDIP-24	DIP,	HERMETIC SEALED, CERDIP-24	PLASTIC, DIP-24	HERMETIC SEALED, CERDIP-24	HERMETIC SEALED, CERDIP-24	HERMETIC SEALED, CERDIP-24	HERMETIC SEALED, CERDIP-24	HERMETIC SEALED, CERDIP-24
Contacts	24	24	24	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-GDIP-T24	R-GDIP-T24	R-GDIP-T24	R-PDIP-T24	R-GDIP-T24	R-GDIP-T24	R-GDIP-T24	R-GDIP-T24	R-GDIP-T24
length	32.0675 mm	32.0675 mm	32.0675 mm	31.877 mm	32.0675 mm	32.0675 mm	32.0675 mm	32.0675 mm	32.0675 mm
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24	24
Maximum operating temperature	125 °C	70 °C	125 °C	70 °C	125 °C	70 °C	70 °C	125 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.715 mm	5.715 mm	5.715 mm	5.461 mm	5.715 mm	5.715 mm	5.715 mm	5.715 mm	5.715 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Telecom integrated circuit types	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER
Temperature level	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Is it Rohs certified?	incompatible	incompatible	-	-	-	-	incompatible	incompatible	incompatible
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	-	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	-	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	-	1	1	1	1	1	1	-	-
