1 dB Fixed Attenuator, SMA Male To SMA Female Aluminum
Heatsink Black Anodized Body Rated To 10 Watts Up To 18 GHz
TECHNICAL DATA SHEET
PE7016-1
1 dB Fixed Attenuator, SMA Male To SMA Female Aluminum Heatsink Black Anodized Body Rated To
10 Watts Up To 18 GHz
Configuration
Design
Connector 1
Connector 2
Body Material and Plating
Fixed, Bidirectional Attenuator
SMA Male
SMA Female
Aluminum Heatsink, Black Anodized
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Attenuation Value, dB
Maximum Input Power, Watts
Maximum VSWR
Frequency 1
Range, GHz
VSWR
Attenuation Accuracy, dB
DC to 18
50
1
10
1.4:1
DC to 18
1.4:1
± 0.5
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width, in [mm]
.
-65 to +125
1.7 [43.18]
1 [25.4]
Connector 1
Type
Connector Specification
Contact Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
SMA Male
MIL-STD-348
Gold
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
Connector 2
Type
Connector Specification
Contact Material and Plating
Body Material and Plating
SMA Female
MIL-STD-348
Gold
Passivated Stainless Steel
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
1 dB Fixed Attenuator, SMA Male To SMA Female Aluminum Heatsink Black Anodized Body
Rated To 10 Watts Up To 18 GHz PE7016-1
PE7016-1 REV
1
1 dB Fixed Attenuator, SMA Male To SMA Female Aluminum
Heatsink Black Anodized Body Rated To 10 Watts Up To 18 GHz
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
PE7016-1
Plotted and Other Data
Notes:
Values at 25 °C, sea level
1 dB Fixed Attenuator, SMA Male To SMA Female Aluminum Heatsink Black Anodized Body Rated To 10 Watts Up To 18 GHz
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
1 dB Fixed Attenuator, SMA Male To SMA Female Aluminum Heatsink Black Anodized Body Rated
To 10 Watts Up To 18 GHz PE7016-1
URL:
http://www.pasternack.com/1db-fixed-sma-female-sma-male-10-watts-attenuator-pe7016-1-p.aspx
PE7016-1 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
P/N
ATTEN.
FIGURE
FIGURE 1
PE7016-1

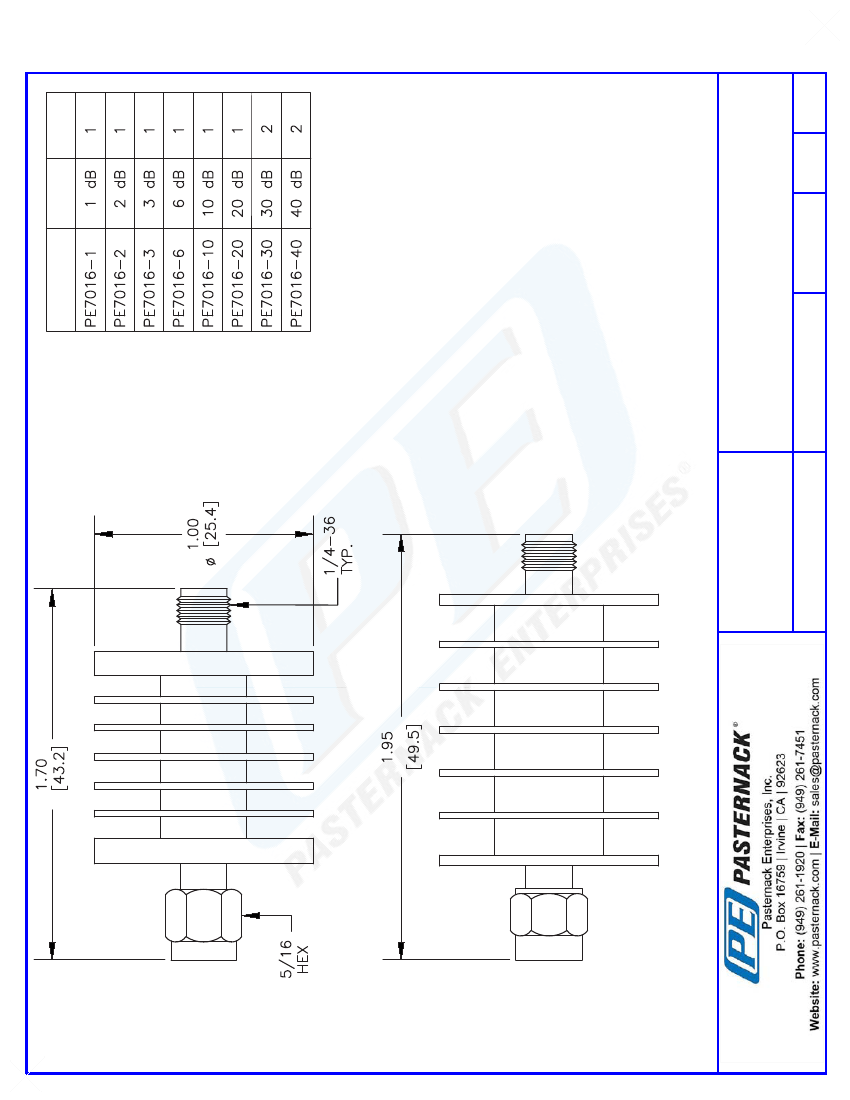

CAD Drawing
1 dB Fixed Attenuator, SMA Male To SMA Female Aluminum Heatsink
Black Anodized Body Rated To 10 Watts Up To 18 GHz
PE7016-1 REV
SMA MALE
FIGURE 2
DWG TITLE
SMA FEMALE
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
PE7016
FSCM NO. 53919
CAD FILE
022213
SCALE N/A
SIZE A
2231
3
